wedi Flooring Panel Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Coverage
40 Sq. Ft.
Panel Quantity
5
Panel Size
24" × 48"
Panel Thickness
1/4"
Waterproof
Yes
Primary Application
Bathroom Floors
Floor Warming Compatibility
Electric Systems
Installation Components
Sealant, Washers & Wood Screws Included
Why Choose This Product
Key Benefits
Waterproof Underlayment
Creates a waterproof substrate beneath tile
Floor Warming Compatible
Well suited for electric floor warming systems
Insulating Foam Core
Closed-cell XPS core provides thermal insulation
Tile-Ready Surface
Cement-coated fiberglass mesh supports thin-set mortar bonding
Complete Kit
Includes panels, joint sealant, washers and wood screws
40 Sq. Ft. Coverage
Five panels cover a total of 40 sq. ft.
Product Information
Product Details
Specifications
Brand
wedi®
Part Number
US4000002
Product Type
Waterproof Tile Underlayment Kit
Coverage
40 Sq. Ft.
Panel Quantity
5
Panel Dimensions
24" × 48"
Panel Thickness
1/4"
Panel Core
Closed-Cell Extruded Polystyrene Foam
Panel Surface
Fiberglass Mesh with Cement Resin Coating
Waterproof
Yes
Mold-Proof Core
Yes
Insulating
Yes
Primary Application
Bathroom Floor Tile Underlayment
Floor Warming Compatibility
Electric Floor Warming Systems
Joint Sealant Quantity
1 Cartridge
Joint Sealant Type
Silyl Modified Polymer (SMP)
Fastener Quantity
40 Tabless Washers & Wood Screws
Assembly
U.S.A.
Content Origin
U.S.A. & Germany
About This Product
Waterproof Tile Underlayment for Bathroom Floors

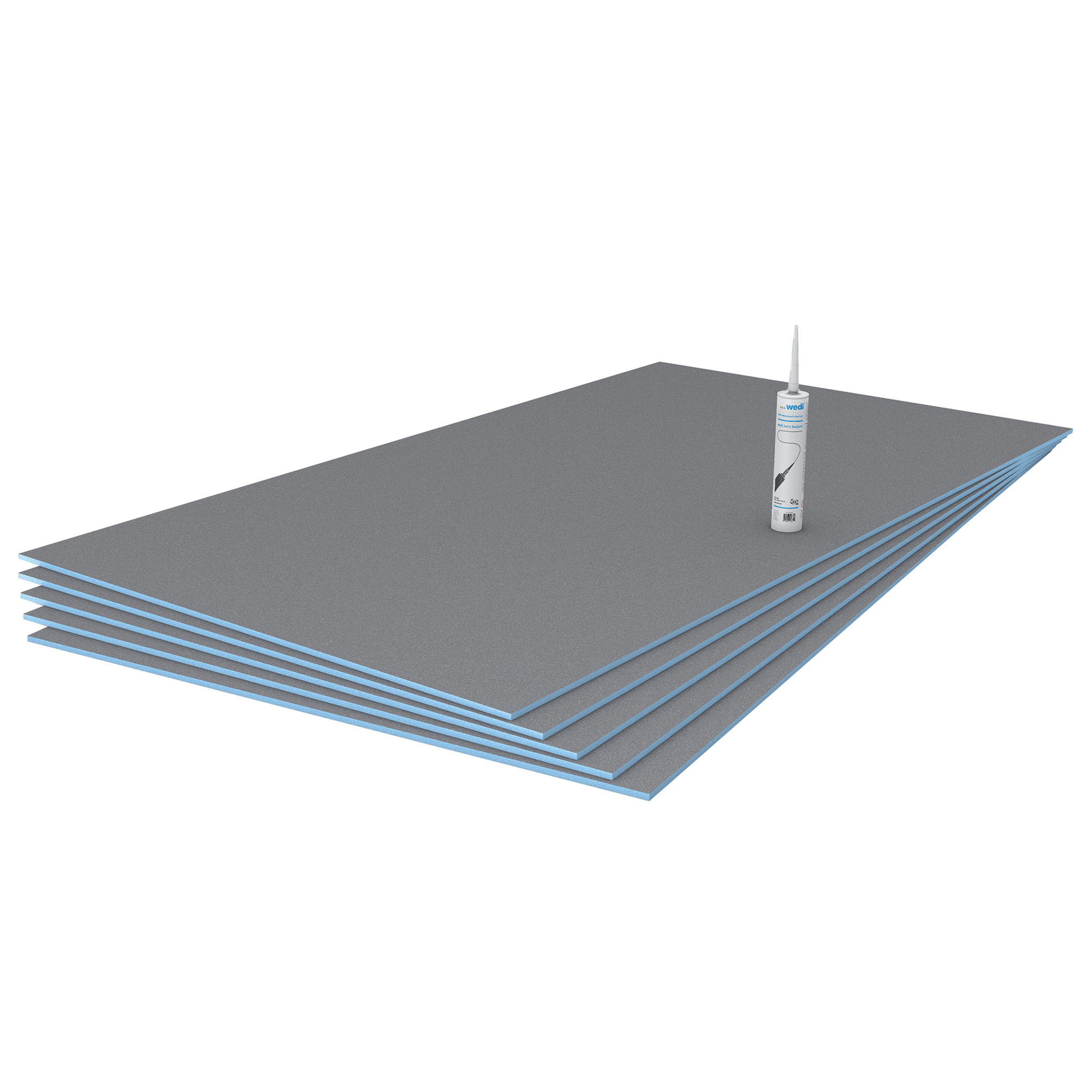

The wedi® Flooring Panel Kit provides a complete 40 sq. ft. waterproof underlayment system for tiled bathroom floors. The kit combines 1/4" wedi Building Panels with the sealant and fastening components needed to install and waterproof the panel assembly, creating a tile-ready substrate for wet-area flooring applications.
1/4" Building Panels for Floor Installations
Five 24" × 48" × 1/4" wedi Building Panels provide the 40 sq. ft. of underlayment included in the kit. Their low-profile 1/4" thickness makes them suitable for floor applications where a waterproof tile substrate is needed without unnecessarily increasing the finished floor height.
Waterproof and Insulating XPS Foam Core
Each Building Panel is constructed with a closed-cell extruded polystyrene foam core that is waterproof, mold-proof, and insulating. Because waterproofing is built into the panel core, the panels provide both a stable tile backing surface and integrated waterproofing for bathroom floor installations.
Cement-Coated Surface for Thin-Set Mortar Bonding
Both sides of each panel are reinforced with fiberglass mesh embedded in a cement resin coating. This reinforced surface provides tile backing strength, while its textured pattern gives thin-set mortar a surface to mechanically bond to during tile installation.
Compatible with Electric Floor Warming Systems
The Flooring Panel Kit is especially suited for bathroom floors incorporating electric floor warming systems. The insulating XPS foam core helps separate the tiled assembly from the substrate while providing a waterproof base for the floor warming and tile installation.
Joint Sealant for Waterproof Seams and Fastener Points
One wedi Joint Sealant cartridge is included for waterproofing and reinforcing panel joints, seams, connections, and fastener points. The single-component Silyl Modified Polymer (SMP) sealant provides strong initial adhesion and remains permanently flexible after curing.
Installation Hardware Included
The kit also includes 40 tabless washers and wood screws for fastening the Building Panels. With the panels, joint sealant, washers, and screws packaged together, the kit provides the primary wedi components required for a 40 sq. ft. waterproof bathroom floor underlayment installation.
Common Questions
Frequently Asked Questions
How much floor area does the wedi Flooring Panel Kit cover?
The kit provides 40 sq. ft. of waterproof tile underlayment.
What is included in the wedi Flooring Panel Kit?
The kit includes five 24" × 48" × 1/4" wedi Building Panels, one wedi Joint Sealant cartridge, and 40 tabless washers with wood screws.
Can the Flooring Panel Kit be used with electric floor warming systems?
Yes. The kit is especially suited for waterproof tile underlayment installations incorporating electric floor warming systems.
Are wedi Building Panels waterproof?
Yes. The Building Panels have a waterproof closed-cell extruded polystyrene foam core and are designed for waterproof tile installations.
What is the purpose of the included wedi Joint Sealant?
The SMP sealant is used for waterproofing, bonding, and reinforcing panel joints, seams, connections, and fastener points.
