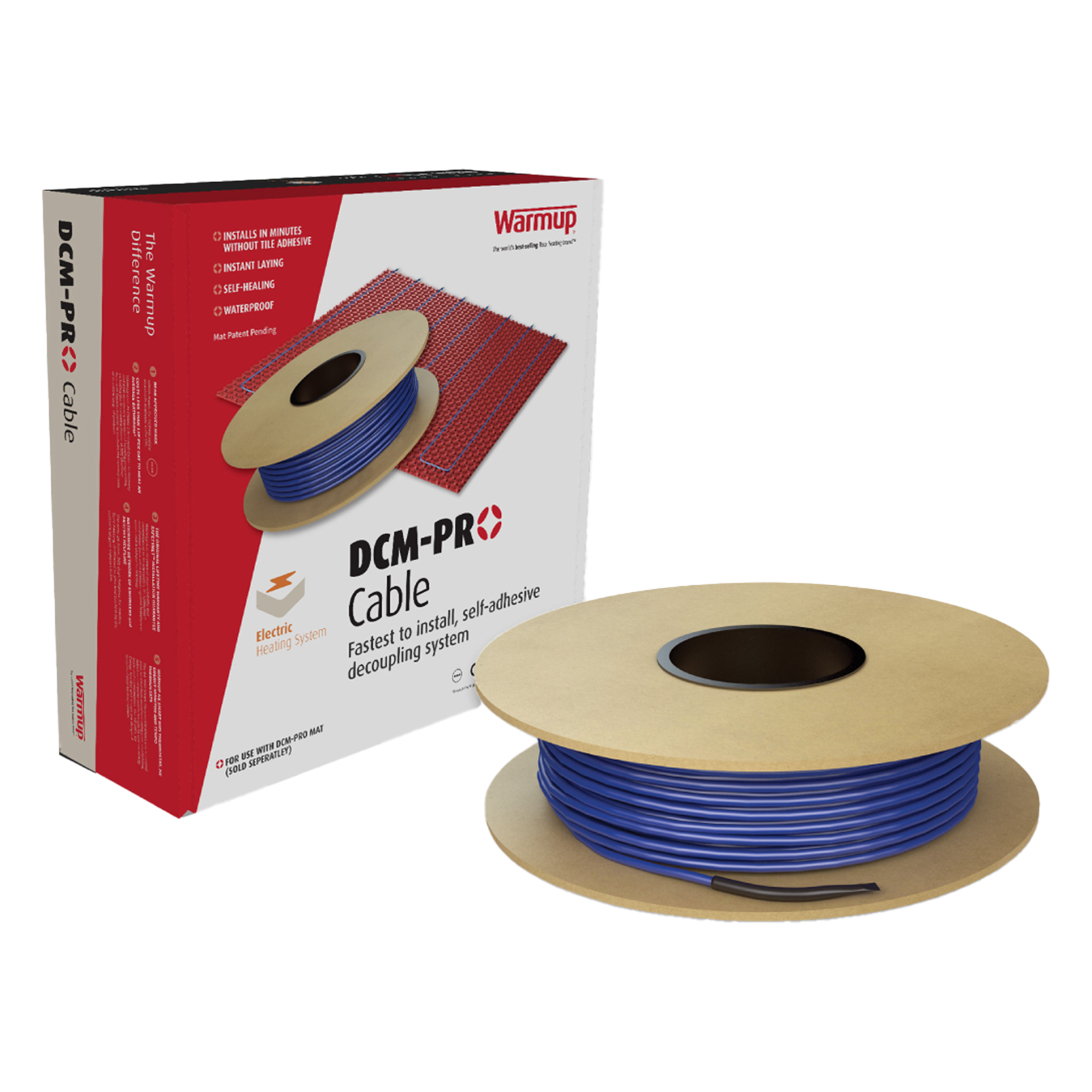

Warmup DCM-PRO Electric Floor Heating Cables
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Voltage
120V
Cable Length
16.7 ft.
Amperage
0.5 A
Resistance
221.5 Ω
Coverage at 3-Peg Spacing
5 Sq. Ft.
Coverage at 4-Peg Spacing
7 Sq. Ft.
Cable Output
Approx. 4 W/Lin. Ft.
Warranty
30 Years
Why Choose This Product
Key Benefits
Flexible Cable Layout
Adjustable spacing accommodates different heated areas and heat-output requirements
Uncoupling Membrane Compatible
Designed for installation with uncoupling membrane systems
High-Output Construction
Twin-core ETFE heating cable supports primary floor heating applications
Low-Profile Cable
Approximately 3/16" thick for integration into floor assemblies
Multiple Voltage Options
Available in 120V and 240V configurations for different project sizes
30-Year Warranty
Long-term manufacturer warranty coverage
Product Information
Product Details
Specifications
Brand
Warmup®
Part Number
DCM-C-120-65
Product Type
Electric Floor Heating Cable
Voltage
120V
Cable Length
16.7 ft.
Amperage
0.5 A
Resistance
221.5 Ω
Coverage at 2-3 Pegs
4 Sq. Ft.
Coverage at 3 Pegs
5 Sq. Ft.
Coverage at 3-4 Pegs
6 Sq. Ft.
Coverage at 4 Pegs
7 Sq. Ft.
Cable Output
Approx. 4 W/Lin. Ft.
Cable Thickness
3/16" (4.5 mm)
Construction
Multi-Stranded, Dual Wire
Inner Insulation
ETFE
Outer Jacket
PVC
Cold Lead
10 ft., 2-Core Braided
Approvals
cULus
Warranty
30 Years
About This Product
Electric Floor Heating Cable for Uncoupling Membranes
The Warmup® DCM-PRO Cable is an electric floor heating cable designed for installation with uncoupling membranes. Its flexible spacing allows the cable layout to be adjusted to suit the required heated area and heat output while following the membrane installation pattern.
Adjustable Cable Spacing and Heat Output
The cable can be installed at different peg spacings to vary coverage and heat output across the floor. With an output of approximately 4 watts per linear foot, installers can select the appropriate cable length and spacing for the floor heating application rather than relying on a fixed-size heating mat.
Twin-Core ETFE Heating Cable Construction
DCM-PRO uses a multi-stranded, dual-wire construction with ETFE inner insulation, a PVC outer jacket, and a minimum 85% copper earth braid. The heating cable measures approximately 3/16" thick and includes a 10 ft. two-core braided cold lead for connection to the electrical system.
120V and 240V Floor Heating Systems
DCM-PRO cables are available in 120V and 240V configurations with multiple cable lengths and coverage options for projects ranging from small heated areas to larger floors. The cables are cULus approved, carry a 30-year warranty, and can be paired with Warmup Smart Thermostats for temperature control.
Common Questions
Frequently Asked Questions
What is the Warmup DCM-PRO Cable used for?
The DCM-PRO Cable is designed for electric floor heating installations using compatible uncoupling membranes. Its flexible cable layout allows installers to adjust spacing to suit the heated area and required heat output.
Is the DCM-PRO Cable compatible with uncoupling membranes?
Yes. Warmup designed the DCM-PRO Cable for use with uncoupling membranes.
What voltages are available for DCM-PRO heating cables?
DCM-PRO cables are available in 120V and 240V configurations with multiple cable lengths and coverage options.
How much heat does the DCM-PRO Cable produce?
The cable output is approximately 4 watts per linear foot. Installed heat output and floor coverage depend on the selected cable spacing.
Can the DCM-PRO Cable spacing be adjusted?
Yes. The cable can be installed at different peg spacings to adjust floor coverage and heat output for the installation.
How thick is the DCM-PRO heating cable?
The cable is approximately 3/16" (4.5 mm) thick.
What type of cable construction does DCM-PRO use?
The heating cable uses multi-stranded dual-wire construction with ETFE inner insulation, a PVC outer jacket, and a minimum 85% copper earth braid.
What warranty does the Warmup DCM-PRO Cable include?
The DCM-PRO Cable is backed by a 30-year warranty.
