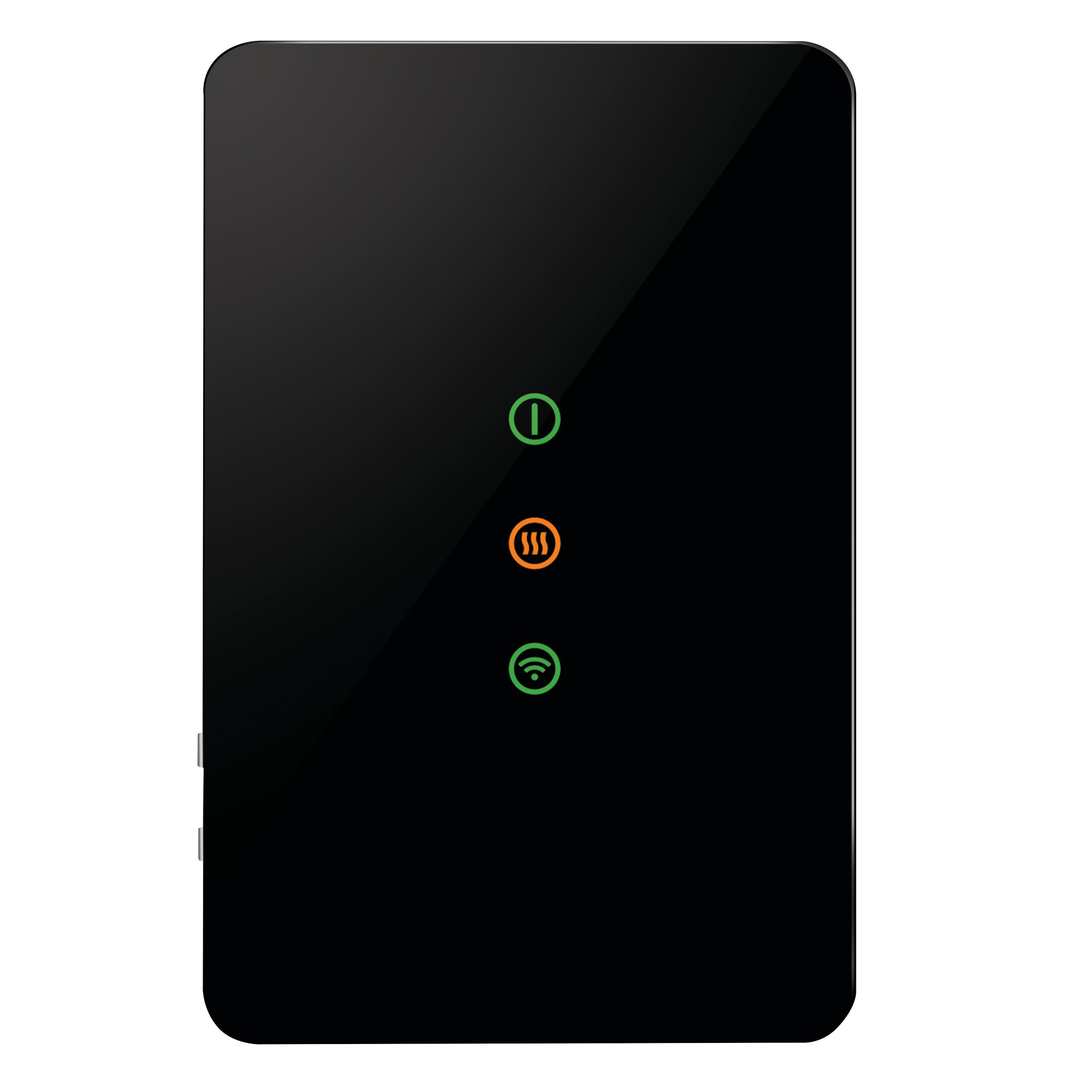

SunTouch SunStat R4 Relay
Expansion Relay for Larger Electric Floor Heating Systems
$176.86
Available to order
Special-order item. Ships directly from the manufacturer. Lead times may vary. Non-returnable.
- MPN:
- 81020608
- UPC:
- 840213021542
At a glance
Full specifications- Operating Voltage
- 120/240 VAC
- Maximum Load
- 15 A Resistive
- Maximum Power
- 1800 W at 120V; 3600 W at 240V
- GFCI
- Built-In Class A, 5 mA
Product Benefits
- System Expansion Controls additional floor heating loads beyond a thermostat's 15-amp capacity
- Dual Voltage Supports 120V and 240V electric floor heating systems
- Flexible Connection Connects to compatible thermostats through wired or wireless communication
- Multi-Relay Control Supports up to 10 wired or 6 wireless R4 Relays per thermostat
- Built-In Protection Class A GFCI provides 5 mA ground-fault protection
- Energy Reporting Wireless relays report energy usage to the ConnectPlus thermostat
Specifications
- Brand
- SunTouch®
- Part Number
- 81020608
- UPC
- 840213021542
- Product Type
- Electric Floor Heating Relay
- Model
- 500980
- Operating Voltage
- 120/240 VAC, 60 Hz
- Maximum Load
- 15 A Resistive
- Maximum Power
- 1800 W at 120V; 3600 W at 240V
- GFCI
- Built-In Class A, 5 mA Trip
- Wireless Technology
- 915 MHz
- Thermostat Compatibility
- SunStat ConnectPlus, Connect & Command
- Maximum Wired Relays
- 10 per Thermostat
- Maximum Wireless Relays
- 6 per Thermostat
- Required Circuit
- Dedicated 20 A Circuit & Individual Breaker
- Dimensions
- 4.73" H × 3.11" W × 1.9" D
- Warranty
- 3 Years
Product details
Expand SunTouch Electric Floor Heating Systems
The SunTouch® SunStat® R4 Relay controls additional electrical loads for SunTouch floor heating systems that require more than the thermostat's 15-amp capacity. Each relay provides a 15-amp resistive load capacity and requires its own 20-amp circuit and individual circuit breaker.
Wired and Wireless Thermostat Connection
The R4 Relay can connect to compatible SunStat thermostats through wired or wireless connections. Up to 10 wired R4 Relays can be connected to one thermostat, while up to 6 relays can be connected wirelessly. Built-in 915 MHz technology provides wireless connectivity with the SunStat ConnectPlus™ thermostat, and wireless relays can report energy usage back to the thermostat.
120V and 240V Floor Heating Control
Dual-voltage operation supports both 120V and 240V electric floor heating systems. Each R4 Relay controls up to 1800 watts at 120V or 3600 watts at 240V, allowing larger floor heating installations to be divided across additional circuits while remaining under centralized thermostat control.
SunStat Thermostat Compatibility
The R4 Relay is compatible only with SunStat ConnectPlus™, Connect, and Command thermostats and should not be connected to older SunStat thermostat or relay models. Built-in Class A GFCI protection and status indicators provide integrated protection and operating feedback for each controlled circuit.
Product questions
What does the SunStat R4 Relay do?
The R4 Relay allows a compatible SunStat thermostat to control additional electrical loads in SunTouch floor heating systems that require more than 15 amps.
Which thermostats are compatible with the SunStat R4 Relay?
The R4 Relay is compatible with SunStat ConnectPlus™, Connect, and Command thermostats. It should not be connected to older SunStat thermostat or relay models.
How many SunStat R4 Relays can connect to one thermostat?
Up to 10 R4 Relays can be connected by wire to one compatible thermostat. Up to 6 R4 Relays can be connected wirelessly.
Can the SunStat R4 Relay connect wirelessly?
Yes. Built-in 915 MHz technology allows the R4 Relay to connect wirelessly to a SunStat ConnectPlus thermostat. Wireless R4 Relays can also report energy usage to the thermostat.
Does each R4 Relay require its own electrical circuit?
Yes. Each R4 Relay requires an additional 20-amp circuit and an individual circuit breaker.
Does the SunStat R4 Relay have built-in GFCI protection?
Yes. It includes built-in Class A GFCI protection with a 5 mA trip level.
Can the R4 Relay be used with both 120V and 240V floor heating?
Yes. The R4 Relay supports both 120V and 240V systems with a maximum 15-amp resistive load. Maximum power is 1800 watts at 120V or 3600 watts at 240V.
