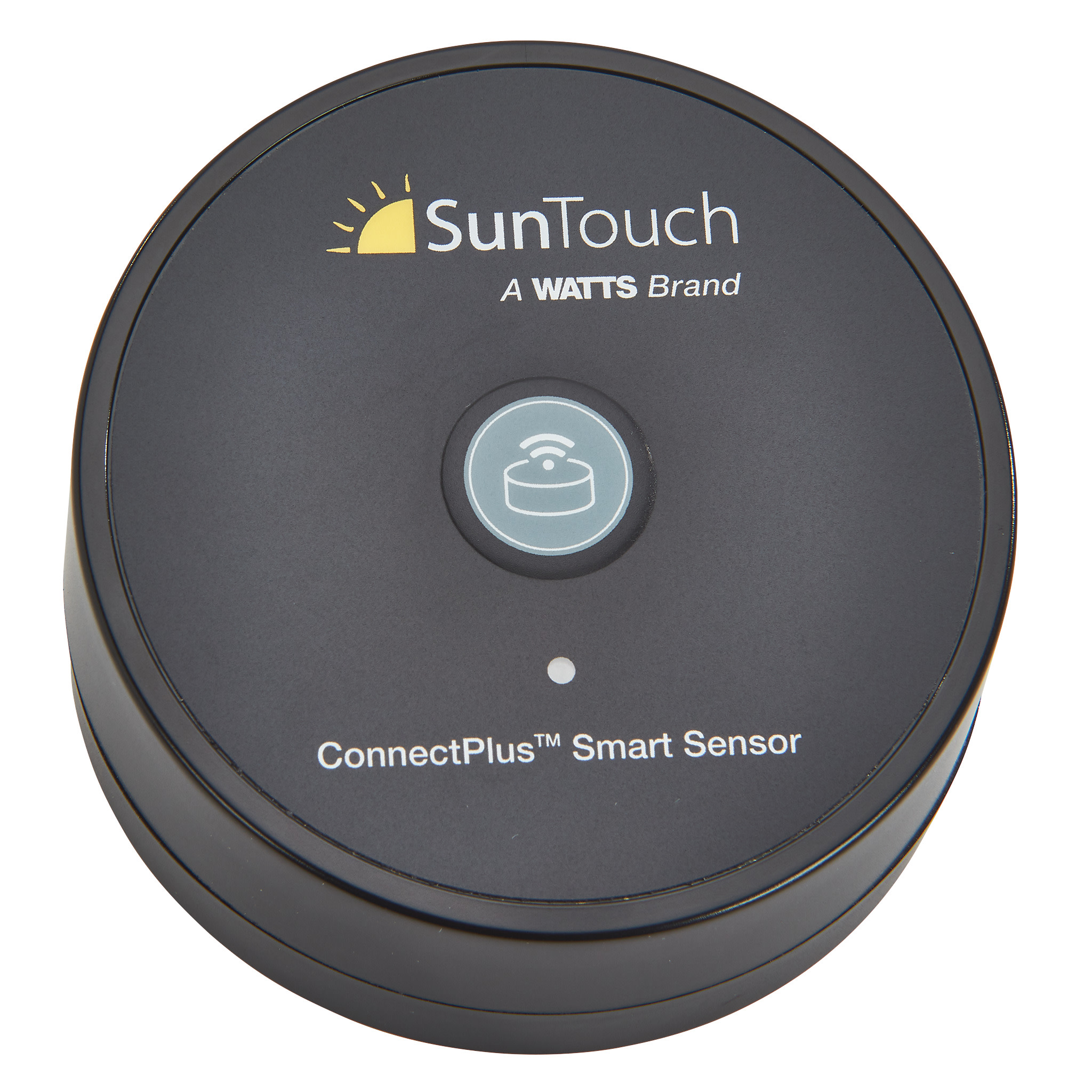

SunTouch SunStat ConnectPlus Smart Sensor
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Sensor Functions
Water Leak & Floor Temperature
Thermostat Compatibility
SunStat ConnectPlus Only
Wireless Communication
915 MHz
Water Resistance
IP67
Power Source
2 AA Batteries Included
Battery Life
Approximately 1 Year
Operating Temperature
32°F to 104°F
Leak Alert
Audible, Visual & Connected Notifications
Why Choose This Product
Key Benefits
Dual Monitoring
Detects water leaks and monitors floor surface temperature
Wireless Connection
Communicates with the ConnectPlus thermostat using 915 MHz technology
Leak Notifications
Sends detected leak information through the connected thermostat
Local Alerts
Audible and visual indicators identify detected water leaks
Flexible Floor Sensing
Can serve as an optional floor temperature sensor for radiant heating
Battery Powered
Includes two AA batteries for wire-free sensor placement
Product Information
Product Details
Specifications
Brand
SunTouch®
Part Number
81020611
UPC
840213021559
Product Type
Smart Temperature & Water Leak Sensor
Model
500120
Compatible Thermostat
SunStat ConnectPlus Only
Wireless Communication
915 MHz
Power Source
2 AA Batteries Included
Battery Life
Approximately 1 Year
Operating Temperature
32°F to 104°F (0°C to 40°C)
Operating Humidity
0 to 100%
Storage Temperature
-4°F to 122°F (-20°C to 50°C)
Water Resistance
IP67
Dimensions
3 3/8" Diameter × 1 11/16" Height
About This Product
Water Leak and Floor Temperature Monitoring
The SunTouch® SunStat® ConnectPlus™ Smart Sensor combines water leak detection and floor surface temperature sensing in one wireless device. It can serve as an optional floor temperature sensor for a radiant floor heating system while also monitoring the surrounding area for water leaks.
Wireless Connection to the ConnectPlus Thermostat
Built-in 915 MHz wireless technology connects the sensor to a SunStat ConnectPlus thermostat without running a sensor wire between the devices. Temperature and leak information is communicated through the paired thermostat, with alerts available through the ConnectPlus system.
Water Leak Alerts and Notifications
When water is detected, the sensor activates audible and visual alarms and transmits the leak notification to the ConnectPlus thermostat. The system can also provide email or push notifications through the connected thermostat, helping users respond quickly to a detected leak.
Battery-Powered Installation
The Smart Sensor operates on two included AA batteries with an expected battery life of approximately one year. An IP67 water-resistant enclosure protects the sensor, while integrated status indicators identify pairing, connection, leak, error, and low-battery conditions.
ConnectPlus Thermostat Compatibility
The Smart Sensor is designed exclusively for use with the SunStat ConnectPlus thermostat and does not connect to older SunStat thermostat models. When paired with ConnectPlus, sensor information can be incorporated into the thermostat's connected floor heating system.
Common Questions
Frequently Asked Questions
What does the SunStat ConnectPlus Smart Sensor monitor?
The Smart Sensor detects water leaks and measures floor surface temperature. It can also serve as an optional floor temperature sensor for a radiant floor heating system.
Which thermostat works with the ConnectPlus Smart Sensor?
The sensor is compatible only with the SunStat ConnectPlus thermostat. It does not connect to older SunStat thermostat models.
How does the Smart Sensor connect to the thermostat?
The sensor uses built-in 915 MHz wireless technology to communicate with a paired SunStat ConnectPlus thermostat.
What happens when the sensor detects a water leak?
The sensor activates audible and visual alarms and transmits the leak notification to the ConnectPlus thermostat. Email or push notifications can also be provided through the connected thermostat.
Does the ConnectPlus Smart Sensor require wiring?
The sensor is powered by two AA batteries, which are included. Expected battery life is approximately one year.
Is the ConnectPlus Smart Sensor water resistant?
Yes. The sensor has an IP67 water-resistance rating.
