SunTouch SunStat CommandPlus Wi-Fi Floor Heating Thermostat

Wi-Fi Programmable Touchscreen Thermostat for Electric Floor Heating

$214.80

Available to order

Special-order item. Ships directly from the manufacturer. Lead times may vary. Non-returnable.

MPN:
81021154
UPC:
840213022730

Free Shipping Details

Contractor Discount Eligible Learn More

At a glance

Full specifications
Voltage
120 V / 240 V
Maximum Load
15 A Resistive
Maximum Power
3600 W at 240 V
Display
4.3" Touchscreen

Product Benefits

  • Remote Heating Control Adjust settings and schedules through the Watts Home app
  • Flexible Temperature Control Operates using floor or air temperature sensing
  • Smart Scheduling Provides programmable heating schedules and connected controls
  • Energy Monitoring Tracks floor heating energy use
  • Integrated Protection Built-in Class A GFCI provides a 5 mA trip level
  • Expandable Control Supports wired connection to a SunStat R4 Relay

Specifications

Brand
SunTouch®
Part Number
81021154
UPC
840213022730
Product Type
Wi-Fi Floor Heating Thermostat
Model
500950-SB
Operating Voltage
120/240 VAC, 60 Hz
Maximum Load
15 A Resistive
Maximum Power
1800 W at 120 VAC; 3600 W at 240 VAC
GFCI
Class A, 5 mA Trip
Temperature Control
Floor or Air Sensing
Display
4.3" Touchscreen
Floor Sensor
10k NTC Thermistor, 15' Cable, Included
Dimensions
4.73" H × 3.11" W × 1.9" D
Relay Compatibility
SunStat R4 Relay
Warranty
3 Years

Product details

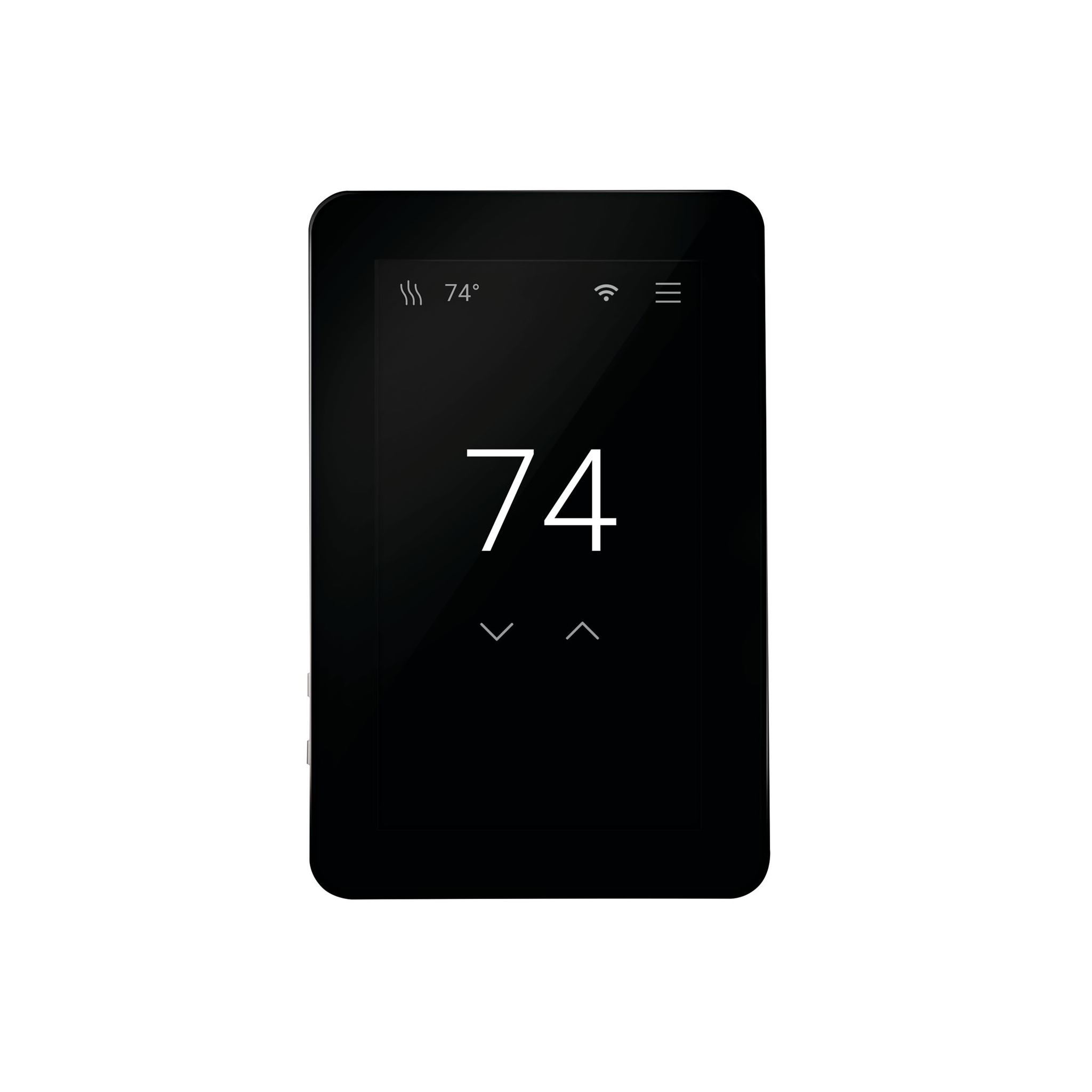

The SunTouch® SunStat® CommandPlus™ is a Wi-Fi programmable touchscreen thermostat for 120 V and 240 V electric floor heating systems. It provides remote app control, floor or air temperature sensing, flexible scheduling, energy monitoring, and built-in Class A GFCI protection.

Wi-Fi Control for Electric Floor Heating

The SunTouch® SunStat® CommandPlus™ is a Wi-Fi programmable touchscreen thermostat for controlling 120 V and 240 V electric floor heating systems. Remote access through the Watts® Home app allows homeowners to program schedules, adjust settings, and manage their floor heating system from a mobile device.

Floor and Air Temperature Control

CommandPlus can control heating based on floor temperature or room air temperature. It can also control floor temperature while limiting the maximum floor temperature to help prevent the space from overheating. A 15' floor sensor is included for floor-sensing applications.

Smart Scheduling and Energy Monitoring

Connected features include automatic clock setting, weather compensation, warm weather shut-down, energy-use monitoring, and email or text notifications. The thermostat also provides guided setup, help screens, voltage-level sensing, and flexible scheduling through its 4.3" touchscreen and Watts Home app.

Built-In GFCI and Relay Control

An integrated relay controls up to a 15 A resistive load, providing up to 1800 W at 120 V or 3600 W at 240 V. Built-in Class A GFCI protection provides a 5 mA trip level, and the thermostat can be wired to a SunStat® R4 Relay when additional control is required.

Product questions

Can the SunStat CommandPlus be controlled remotely?

Yes. The thermostat connects to Wi-Fi and can be remotely programmed and adjusted through the Watts Home mobile app.

Does the SunStat CommandPlus include a floor sensor?

Yes. A 15' 10k NTC thermistor floor sensor is included.

Can the thermostat control both floor and room temperature?

Yes. CommandPlus can control heating using floor temperature or room air temperature. It can also control floor temperature while limiting the maximum floor temperature.

What voltage floor heating systems does CommandPlus support?

The thermostat controls 120 V and 240 V electric floor heating systems with a maximum resistive load of 15 A.

Does the SunStat CommandPlus have built-in GFCI protection?

Yes. It includes built-in Class A GFCI protection with a 5 mA trip level.

What connected features does CommandPlus provide?

Connected features include remote app control, automatic clock setting, weather compensation, warm weather shut-down, energy-use monitoring, flexible scheduling, and email or text notifications.

Can the SunStat CommandPlus connect to an R4 Relay?

Yes. It supports a wired connection to the SunStat R4 Relay, which is sold separately.
