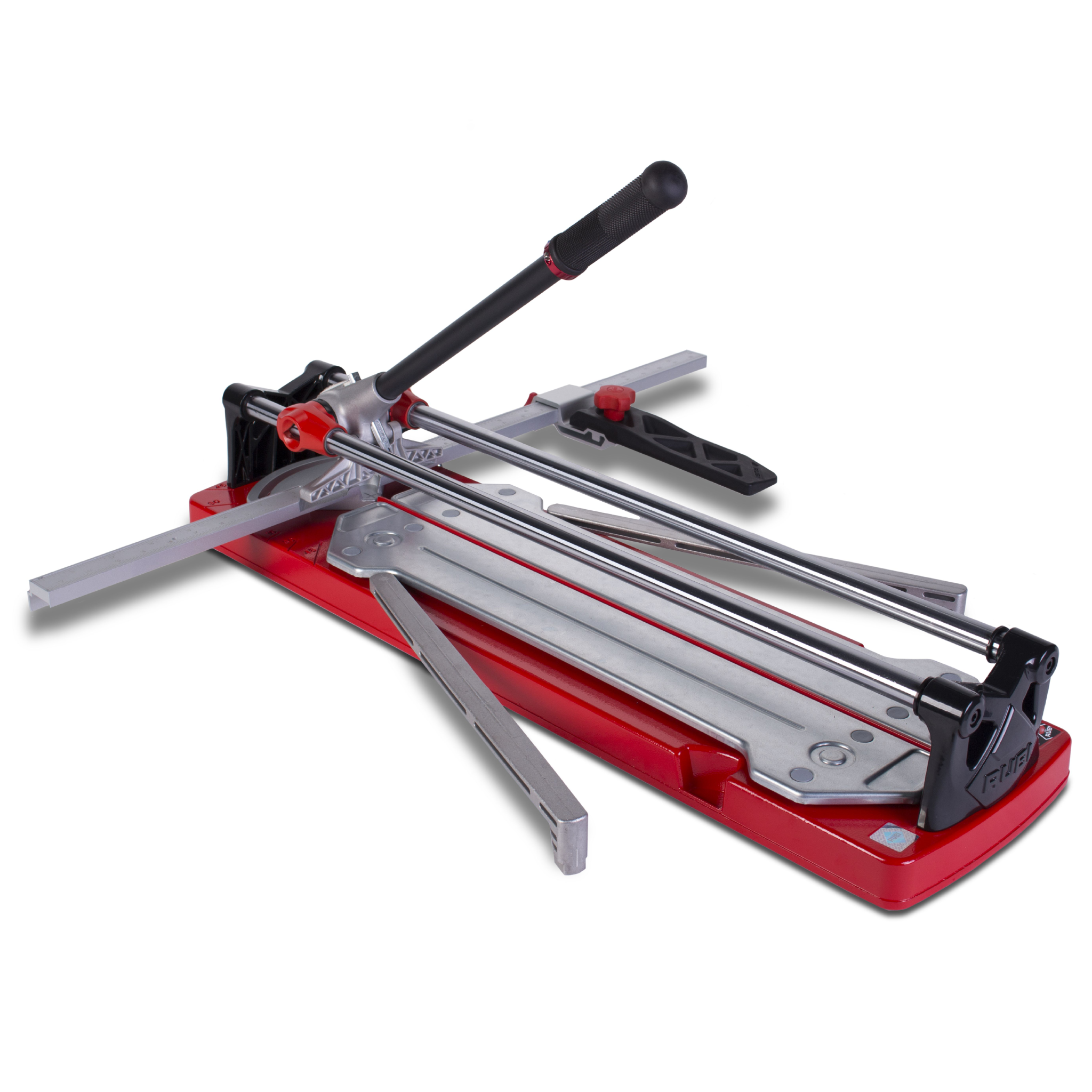

RUBI TR-MAGNET Tile Cutters for Porcelain and Ceramic Tile
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Model
TR-600
Cutting Length
24"
Diagonal Cutting
17" × 17"
Cutting Height
1/8" – 5/8"
Breaking Force
1,764 lbs.
Operating System
One-Handed MAGNET
Materials
Porcelain, Ceramic & BIIa Stoneware
Carrying Case
Included
Why Choose This Product
Key Benefits
One-Handed MAGNET Control
Keeps the breaker clear during scoring, then engages it from the lever so the other hand can help steady the tile.
1,764 lb Breaking Force
Gives installers strong, controlled separation across supported porcelain, ceramic, and glazed stoneware.
Visible Scoring Line
Dual-guide construction preserves a clear view of the intended cut for more confident scoring.
Precise Diagonal Layouts
Mobile breaker and revolving square support accurate end-to-end diagonal cutting.
Flexible Angle Positioning
Central-pivot square adjusts from -45° to 45° for custom layouts.
Efficient Repeat Cuts
Precision lateral stop preserves the selected measurement across matching pieces.
Stable Tile Support
Floating base, shock-absorbing support, and lateral supports help hold the workpiece as breaking pressure is applied.
Protected Transport
Included carrying case makes it easier to store and move the cutter between jobs.
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
17907
UPC
8413797179071
Product Type
Manual Tile Cutter
Model
TR-600
Cutting Length
24"
Diagonal Cutting
17" × 17"
Cutting Height
1/8" – 5/8"
Breaking Force
1,764 lbs.
Compatible Materials
Porcelain, Ceramic & BIIa Stoneware
Angle Adjustment
-45° to 45°
Operating System
One-Handed MAGNET
Included Scoring Wheels
1/4" (6 mm) & 3/8" (10 mm)
Carrying Case
Included
Weight with Case
31 lbs.
About This Product
RUBI TR-MAGNET Manual Tile Cutters for Detailed Layouts
RUBI TR-MAGNET Tile Cutters are professional score and snap tools designed for professional porcelain cutting and intensive cutting of ceramic tile, including glazed stoneware. Their mobile breaker and revolving square give remodeling contractors the control needed for straight, diagonal, angled, and repetitive cuts in detailed residential and custom flooring layouts.
One-Handed MAGNET Control with 1,764 lb Breaking Force
TR-MAGNET Manual Tile Cutters use the MAGNET system to hold the breaker clear of the scoring path, keeping the cut line visible as the tile is scored. The operating lever then engages the mobile breaker for separation. This one-handed workflow leaves the other hand available to steady the tile while delivering up to 1,764 lbs. of breaking force.
Revolving Square for Accurate Diagonal and Repeat Cuts
RUBI TR-MAGNET Manual Cutters pair a central-pivot revolving square with a precision lateral stop. The square adjusts from -45° to 45° to position angled and end-to-end diagonal cuts, while the stop preserves the selected measurement for matching pieces. These controls help installers move efficiently through detailed patterns without measuring every tile from scratch.
Stable Support from Scoring Through Separation
Chromed steel guides with anti-corrosion protection support smooth scoring movement and keep the cutting line in view. A floating base, shock-absorbing support, and lateral supports help stabilize the tile as force is applied. Both available models include a carrying case, making the cutter easier to protect, store, and transport between work areas.
Common Questions
Frequently Asked Questions
What materials can RUBI TR-MAGNET Manual Tile Cutters cut?
RUBI TR-MAGNET Manual Tile Cutters are designed for professional cutting of porcelain tile and intensive cutting of ceramic tile, including glazed stoneware. Use the cutter only with materials suited to manual score-and-snap cutting and within the listed thickness range for the selected model.
What is the difference between the TR-600 MAGNET and TR-710 MAGNET?
The TR-600 MAGNET provides a 23 5/8" straight cut and a 16 1/2" x 16 1/2" diagonal capacity. The TR-710 MAGNET increases those capacities to 27" straight and 19 5/8" x 19 5/8" diagonally. Both models share the same thickness range and breaking force.
What tile thickness can TR-MAGNET Tile Cutters handle?
Both models are rated for tile from 1/8" to 5/8" thick. The material must also be compatible with manual score-and-snap cutting, so select an appropriate RUBI scoring wheel for the tile type and surface before completing a series of matching cuts.
How much breaking force does the TR-MAGNET provide?
Both models provide up to 1,763.68 lbs. of breaking force, commonly rounded to 1,764 lbs. The mobile breaker can be positioned along the tile so force is applied where needed after scoring, supporting straight and diagonal cuts within each model's rated capacity.
How does the RUBI MAGNET operating system work?
The MAGNET system holds the breaker clear of the scoring path so the operator can see and follow the cut line. Raising the operating lever engages the breaker for separation, allowing scoring and breaking with one hand while the other remains available to stabilize the tile.
Can the TR-MAGNET make angled, diagonal, and repetitive cuts?
Yes. The central-pivot revolving square adjusts from -45° to 45° for accurate angled positioning and end-to-end diagonal cuts. A precision lateral stop maintains a repeatable measurement, helping installers size multiple pieces consistently without laying out each cut again.
How do TR-MAGNET Manual Tile Cutters support the tile?
Chromed steel guides with anti-corrosion protection support smooth scoring movement while preserving visibility of the cut line. A floating base with shock-absorbing support and lateral supports helps keep the tile stable as the breaker applies pressure, giving the operator a more controlled working platform.
Do the RUBI TR-MAGNET models include carrying cases?
Yes. Both the TR-600 MAGNET and TR-710 MAGNET are supplied with carrying cases. Their listed weights with the cases are 30.64 lbs. and 34.17 lbs., respectively, helping buyers compare portability as well as cutting capacity when choosing between the two models.
