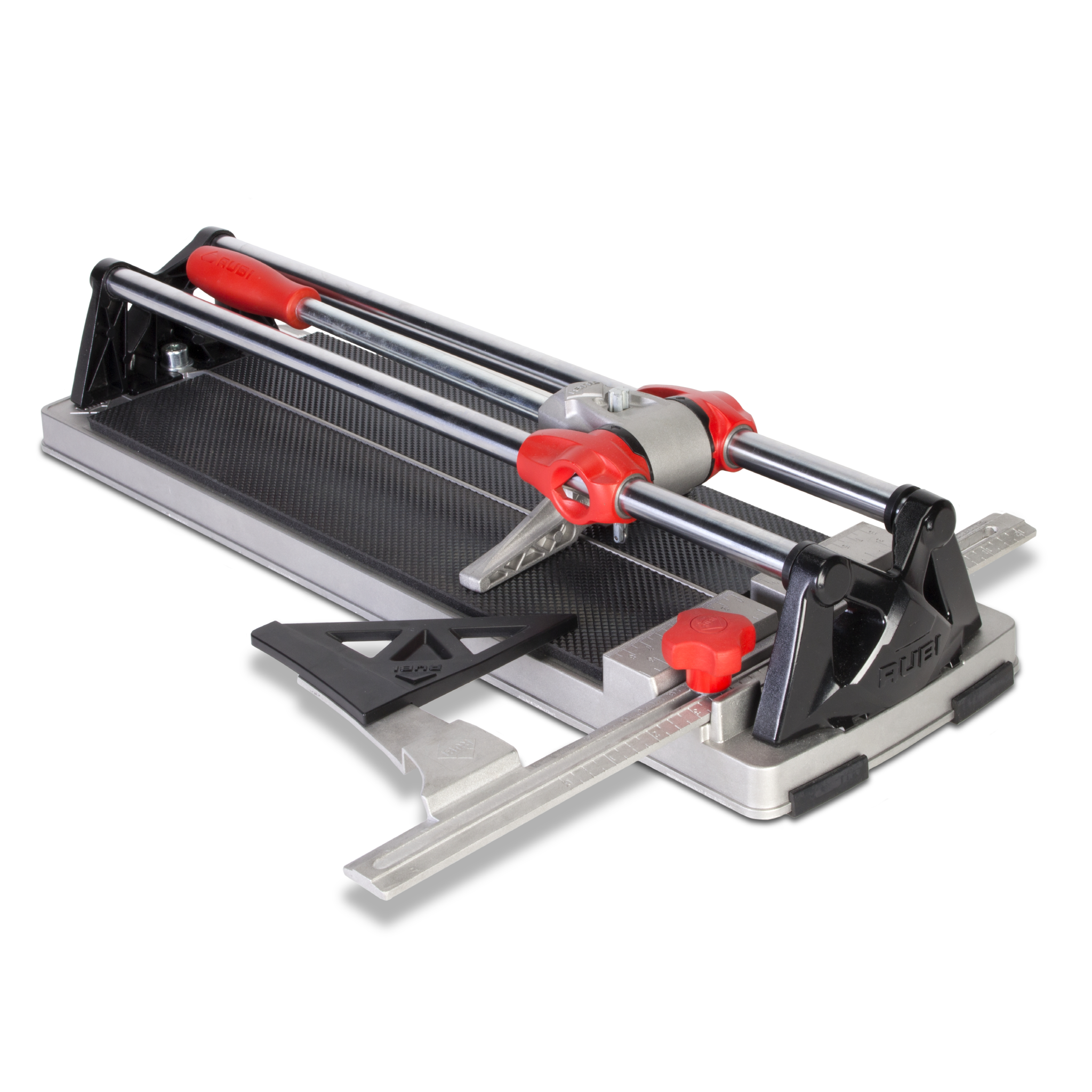

RUBI SPEED-N Manual Tile Cutters
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
17"
Diagonal Cut Capacity
12" × 12"
Cutting Thickness
3/16" – 9/16"
Model
SPEED-42 N
Included Scoring Wheel
5/16"
Scoring Wheel Compatibility
1/4" – 3/8"
Breaker Type
Multipoint
45° Cutting
Yes
Why Choose This Product
Key Benefits
Rigid Scoring Assembly
Closed sliders and aluminum tool holder improve scoring stability
Clear Cut-Line Visibility
Dual guides keep the scoring and cutting line visible
Multipoint Breaker
Aluminum pressure pad supports controlled tile separation
Large Tile Support
Lateral extensions provide additional support for larger pieces
Repeatable Cuts
Aluminum lateral stop simplifies repetitive cutting
Adjustable Scoring
Compatible with 1/4" to 3/8" scoring wheels for different tile materials
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
14949
UPC
8413797149494
Product Type
Manual Tile Cutter
Model
SPEED-42 N
Straight Cut Capacity
17"
Diagonal Cut Capacity
12" × 12"
Cutting Thickness
3/16" – 9/16"
Recommended Materials
Wall Tile, Glazed Stoneware & Porcelain
Guide Diameter
3/4"
Scoring Wheel Compatibility
1/4" – 3/8"
Included Scoring Wheel
5/16"
Breaker Type
Multipoint
45° Cutting
Yes
About This Product
Manual Cutter for Ceramic and Porcelain Tile
RUBI® SPEED-N Manual Tile Cutters are designed for frequent cutting of wall tile and glazed stoneware and occasional cutting of porcelain tile. Available cutting capacities range from 17" to 36" for straight cuts, with models sized for tiles up to 26" × 26" on diagonal cuts.
Rigid Dual-Guide Scoring System
Closed sliders, an aluminum tool holder, and solid 3/4" chromed steel guides create a rigid and stable scoring assembly. The dual-guide design maintains clear visibility of the scoring and cutting line, while the multipoint breaker with aluminum pressure pad supports controlled tile separation.
Adjustable Setup for Repetitive and 45° Cuts
An aluminum lateral stop supports repetitive cuts and adjusts for 45° work. The cast aluminum base keeps the cutter lightweight and rigid, while lateral extensions provide additional support for larger tiles.
Interchangeable Scoring Wheel Compatibility
SPEED-N cutters accept RUBI scoring wheels from 1/4" to 3/8", allowing the scoring setup to be matched to different tile materials. A 5/16" scoring wheel is included.
Common Questions
Frequently Asked Questions
What tile materials can the RUBI SPEED-N cut?
The SPEED-N is designed for frequent cutting of wall tile and glazed stoneware and occasional cutting of porcelain tile.
What are the cutting capacities of the SPEED-N models?
The SPEED-42 N provides a 17" straight cut and 12" × 12" diagonal cut. The SPEED-72 N provides a 28" straight cut and 20" × 20" diagonal cut. The SPEED-92 N provides a 36" straight cut and 26" × 26" diagonal cut.
What tile thickness can the SPEED-N cut?
The SPEED-42 N cuts material from 3/16" to 9/16" thick. The SPEED-72 N and SPEED-92 N cut material from 1/4" to 5/8" thick.
What scoring wheel is included?
Each SPEED-N manual tile cutter includes a 5/16" scoring wheel.
What scoring wheel sizes are compatible with the SPEED-N?
The SPEED-N is compatible with RUBI scoring wheels from 1/4" to 3/8", allowing the scoring wheel to be selected for the tile material being cut.
Can the SPEED-N make repetitive and 45° cuts?
Yes. The aluminum lateral stop supports repetitive cuts and can be positioned for 45° cuts.
