At a Glance
Why Choose This Product
Designed to transport large-format porcelain slabs
Retractable profiles extend from 67" to 126"
Six high-capacity vacuum suction cups support slab handling
Suction cups and Soft-grip handles adjust along the guides
Each reinforced aluminum guide can be used independently
Optional crossbars increase maximum load capacity to 264.5 lbs
Product Information

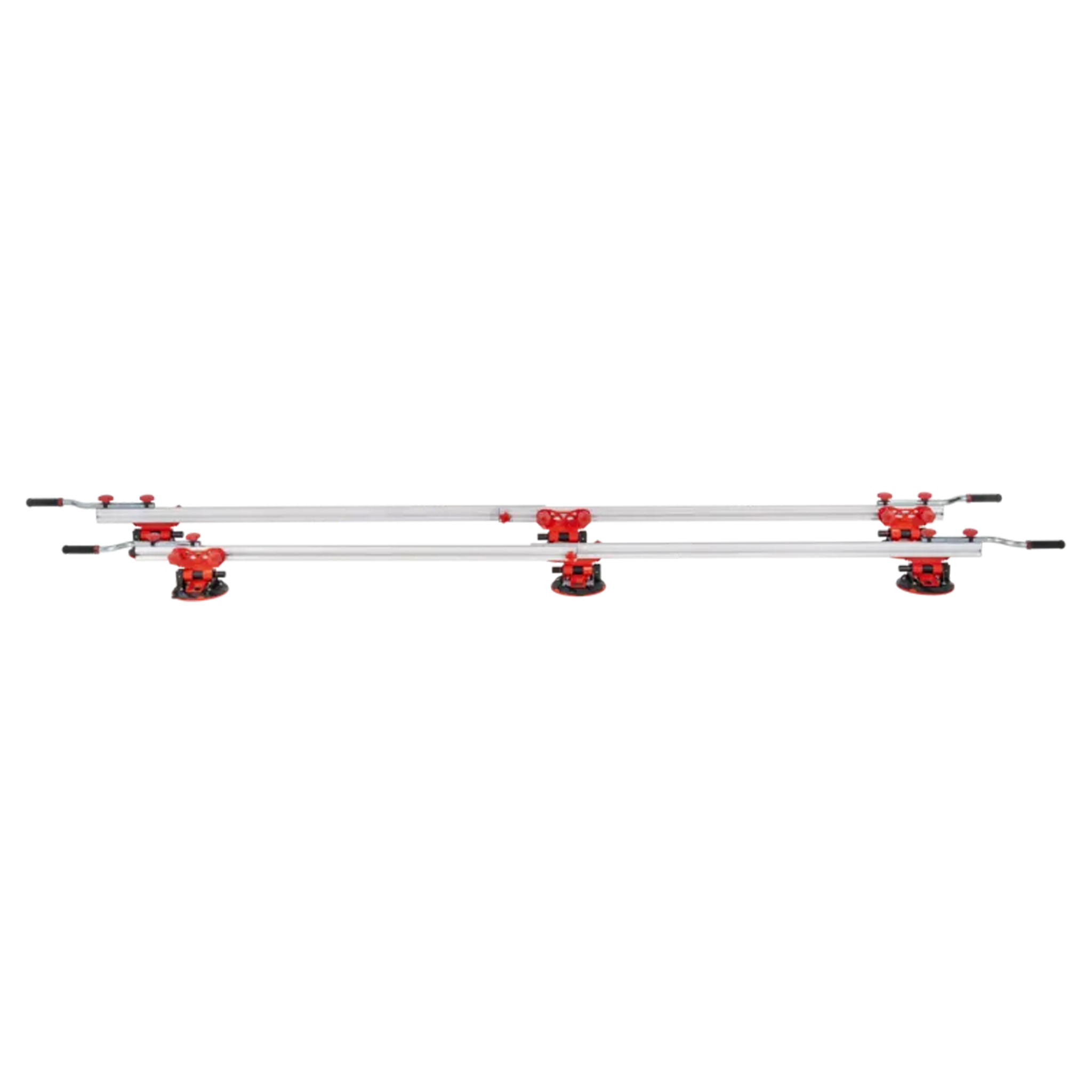

The RUBI® SLIM EASY TRANS PLUS is designed for transporting and handling large-format porcelain slabs up to 1/4" thick. Two reinforced aluminum retractable profiles adjust from 67" to 126" to accommodate different slab formats and support loads up to 176 lbs.
Six 7-7/8" high-capacity vacuum suction cups provide secure contact with the slab during lifting and transport. The suction cups offer multiple positioning options along the guides, while each guide can also be used individually when the application does not require the complete system.
Sliding Soft-grip handles can be positioned along the upper guide slots and removed by loosening the adjustment knobs for easier system transport. The recommended distance between handles is 27.5". The EASY FIX system supports quick adjustment during setup and use.
The SLIM EASY TRANS PLUS is compatible with the optional perpendicular crossbar set (Ref. 18819), which increases system rigidity and improves slab handling. When properly configured with the crossbars, maximum load capacity increases from 176 lbs. to 264.5 lbs.
Common Questions
It is designed for transporting and handling large-format porcelain slabs up to 1/4" thick.
The SLIM EASY TRANS PLUS has a maximum load capacity of 176 lbs. When used with the optional Ref. 18819 perpendicular crossbars, the maximum load capacity increases to 264.5 lbs.
The reinforced aluminum profiles retract and extend to accommodate formats from 67" to 126".
The system uses six 7-7/8" high-capacity vacuum suction cups that can be repositioned along the guides.
Yes. Each guide is suitable for individual use when the complete two-profile system is not required.
The optional Ref. 18819 perpendicular crossbars increase system rigidity, improve handling stability, and increase maximum load capacity to 264.5 lbs.
No. Adding the optional Ref. 18827 suction cup supplements does not increase the standard system's 176 lb maximum load capacity.
