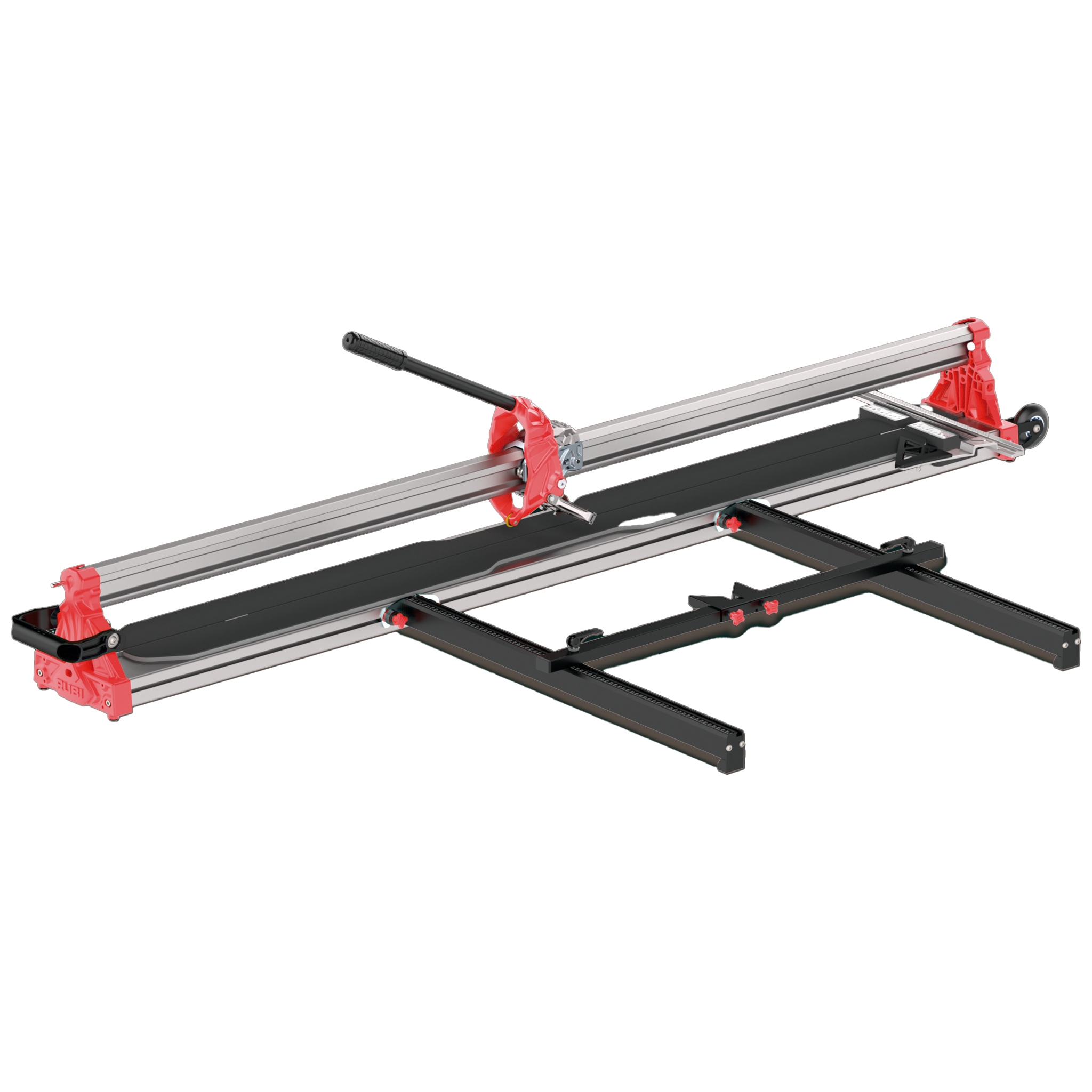

RUBI RCH Manual Tile Cutters (24" - 48")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut
24"
Diagonal Cut
19" Ć 19"
Cutting Height
1/4"ā11/16"
Separator Force
2,094 lbs
Scoring Wheel
7/8" EXTREME
Guide Type
Single Guide
Weight
23 lbs
Carrying Case
No
Why Choose This Product
Key Benefits
High Breaking Force
2,094 lb separator handles demanding porcelain and tile cuts
Lightweight Construction
Aluminum design reduces weight for easier jobsite transport
Improved Cutting Visibility
T-shaped single guide keeps the scoring wheel visible from above
Reduced Guide Flex
Closed aluminum profile and stainless steel rod improve cutting stability
Fast Breaking
MAGNET multi-point separator speeds scoring and breaking operations
Large-Format Stability
Double side stops support larger tiles during cutting
Repetitive Cutting
Fixed square and side stops simplify repeat cuts and narrow strips
90Ā° & 45Ā° Layouts
Fixed square supports straight and diagonal cutting setups
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
27934
UPC
8413797279344
Product Type
Manual Tile Cutter
Model
RCH-650
Straight Cut
24"
Diagonal Cut
19" Ć 19"
Cutting Height
1/4"ā11/16"
Separator Force
2,094 lbs
Scoring Wheel
7/8" EXTREME
Breaking System
Multi-Point Separator with MAGNET Mechanism
Side Stops
Double
Square
Fixed 90Ā° & 45Ā°
Recommended Materials
Porcelain Stoneware, Ceramic Tile & Glazed Stoneware
Weight
23 lbs
Carrying Case
No
About This Product
Professional cutter for Porcelain and Ceramic Tile
RUBIĀ® RCH Manual Tile Cutters are professional single-guide cutters designed for frequent cutting of porcelain stoneware and intensive cutting of ceramic tile and glazed stoneware. Available with 24", 36", and 48" straight cutting capacities, the RCH series combines high breaking force with an aluminum construction for easier transport.
Single-Guide Design for Cutting Visibility and Accuracy
The T-shaped guide provides a clear view of the scoring wheel from above, while the closed extruded aluminum profile with stainless steel rod reduces lateral and vertical flex during cutting. A straightness adjustment system at the guide supports helps maintain cutting accuracy.
2,094 lb Multi-Point Breaking System
A die-cast aluminum multi-point separator delivers up to 2,094 lbs of breaking force and incorporates RUBI's MAGNET mechanism for faster operation. The aluminum tool holder uses four double ball bearings to withstand high cutting pressures, while the soft-grip handle improves comfort during repeated use.
Large-Format and Repetitive Tile Cutting
Double side stops improve stability when working with large-format tile. The fixed square includes aluminum side stops for repetitive cuts and narrow strips and supports both 90Ā° and 45Ā° cutting layouts. Each cutter includes a 7/8" EXTREME scoring wheel, while the RCH-920 and RCH-1200 also include a reinforced fabric carrying case.
Common Questions
Frequently Asked Questions
What materials can the RUBI RCH Manual Tile Cutters cut?
The RCH series is designed for frequent cutting of porcelain stoneware and intensive cutting of ceramic tile and glazed stoneware.
What are the cutting capacities of the RCH tile cutters?
The RCH-650 provides a 24" straight cut and 19" Ć 19" diagonal cut. The RCH-920 provides a 36" straight cut and 27" Ć 27" diagonal cut. The RCH-1200 provides a 48" straight cut and 34" Ć 34" diagonal cut.
How thick of tile can the RUBI RCH cutters handle?
All three RCH models have a cutting height range of 1/4" to 11/16".
How much breaking force does the RCH series provide?
The RCH-650, RCH-920, and RCH-1200 each provide up to 2,094 lbs of separator force.
What scoring wheel is included with the RCH tile cutters?
Each RCH model includes a 7/8" RUBI EXTREME scoring wheel.
Do RUBI RCH Manual Tile Cutters include a carrying case?
The RCH-920 and RCH-1200 include reinforced fabric carrying cases. The RCH-650 does not include a carrying case.
Can the RCH cutters be used for repetitive and diagonal cuts?
Yes. The fixed square includes aluminum side stops for repetitive cuts and narrow strips and supports both 90Ā° and 45Ā° cutting layouts.
