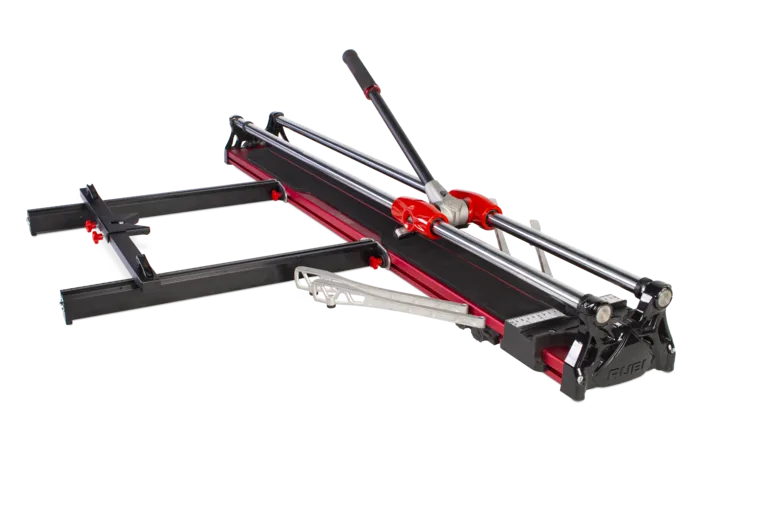

RUBI HIT-PLUS Manual Tile Cutters (47.25" - 71")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut
47-1/4"
Diagonal Cut
33-1/2" × 33-1/2"
Tile Thickness
1/8"-3/4"
Separation Power
1,984 lbs.
Guide Diameter
1"
Included Scoring Wheel
7/8"
Case Included
Yes
Recommended Materials
Ceramic, Stoneware & Porcelain
Why Choose This Product
Key Benefits
1,984 lb. Breaking Force
High-performance movable breaker handles demanding porcelain and ceramic tile
Ball-Bearing Scoring
Smooth slider movement improves scoring accuracy and control
MAGNET System
One-handed platen operation speeds scoring and breaking
Rigid Cutting Platform
Extruded aluminum base and 1" steel guides resist flexing
Large-Format Support
Four supplementary arms support oversized tile during cutting
Repeat & 45° Cuts
Lateral stop and double tile support simplify repeated and angled cuts
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
27902
UPC
8413797279023
Product Type
Manual Tile Cutter
Model
HIT-1200 PLUS
Straight Cutting Capacity
47-1/4"
Diagonal Cutting Capacity
33-1/2" × 33-1/2"
Tile Thickness Capacity
1/8"-3/4"
Separation Power
1,984 lbs.
Recommended Materials
Ceramic, Stoneware & Porcelain Tile
Guide Diameter
1"
Included Scoring Wheel
7/8"
Case Included
Yes
About This Product
Heavy-Duty Cutter for Porcelain and Ceramic Tile
RUBI® HIT-PLUS Manual Tile Cutters are built for intensive cutting of ceramic tile, stoneware, and porcelain tile. The range provides up to 71" of straight cutting capacity, handles material from 1/8" to 3/4" thick, and delivers up to 1,984 lbs. of separation power.
Accurate Scoring and One-Handed Breaking
Ball-bearing sliders provide smooth, accurate scoring, while the forward scoring wheel position keeps the scoring and cutting area visible. RUBI's MAGNET system allows the platen to be locked and unlocked for scoring and breaking with one hand, improving speed and control during repetitive work.
Rigid Guides and Support for Large-Format Tile
An extruded aluminum base, flanged guides, and 1" solid chromed steel guides provide rigidity and resistance to flexing. Four supplementary support arms help stabilize large-format tile, while the movable guide stop adjusts to the tile size.
Straight, Repetitive and 45° Tile Cutting
A lateral stop supports repetitive and 45° cuts, and the double tile support includes an extension for 45° cutting. Each cutter includes a 7/8" scoring wheel and accepts additional 1/4", 5/16", 3/8", and 3/4" RUBI scoring wheel sizes for different tile materials.
Common Questions
Frequently Asked Questions
What materials can RUBI HIT-PLUS Manual Tile Cutters cut?
HIT-PLUS cutters are designed for intensive cutting of ceramic tile, stoneware, and porcelain tile.
What is the maximum cutting capacity of the HIT-PLUS series?
The HIT-1200 PLUS provides a 47-1/4" straight cut, the HIT-1600 PLUS provides a 63" straight cut, and the HIT-1800 PLUS provides a 71" straight cut.
How thick of tile can the HIT-PLUS cut?
HIT-PLUS models are designed to cut tile from 1/8" to 3/4" thick.
How much separation power does the HIT-PLUS provide?
Each HIT-PLUS model provides up to 1,984 lbs. of separation power through its high-performance movable breaker.
Can the HIT-PLUS make diagonal and 45° cuts?
Yes. Each model supports diagonal cutting and includes a lateral stop for repetitive and 45° cuts. The double tile support also includes a supplement for 45° cutting.
What scoring wheel is included with the HIT-PLUS?
Each cutter includes a 7/8" scoring wheel. The system also accepts 1/4", 5/16", 3/8", and 3/4" scoring wheels for different tile materials.
What does the RUBI MAGNET system do?
The MAGNET system allows the platen to be locked and unlocked with one hand when switching between scoring and breaking, improving speed and cutting control.
Which HIT-PLUS models include a carrying case?
Part numbers 27902 HIT-1200 PLUS and 27903 HIT-1600 PLUS include a case. Part numbers 27900, 27901, and 27916 do not include a case.
