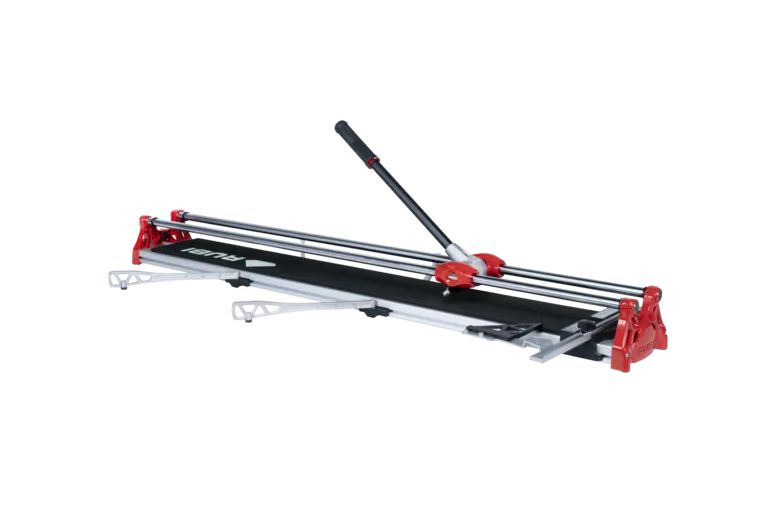

RUBI HIT-N Manual Tile Cutters (33.5" - 48")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
33-1/2"
Diagonal Cut Capacity
23-5/8" Ć 23-5/8"
Tile Thickness
1/8"-5/8"
Separation Power
1,764 lbs.
Tile Compatibility
Wall Tile, Stoneware & Porcelain
Guide Diameter
3/4"
Included Scoring Wheel
5/16"
Carrying Case
Not Included
Why Choose This Product
Key Benefits
High Separation Power
Delivers up to 1,764 lbs. of force for breaking dense tile
Smooth Scoring
Linear ball-bearing sliders provide controlled scoring movement
One-Handed Operation
MAGNET system speeds up scoring and breaking
Rigid Cutting Platform
Closed structure and extruded aluminum base resist flexing
Large-Format Support
Four aluminum support arms stabilize larger tiles
Versatile Cutting
Lateral stop supports repetitive and 45Ā° cuts
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
26963
UPC
8413797269635
Product Type
Manual Tile Cutter
Model
HIT-850 N
Straight Cut Capacity
33-1/2"
Diagonal Cut Capacity
23-5/8" Ć 23-5/8"
Tile Thickness
1/8"-5/8"
Separation Power
1,764 lbs.
Compatible Tile
Wall Tile, Stoneware & Porcelain
Guide Diameter
3/4"
Included Scoring Wheel
5/16"
Compatible Scoring Wheels
1/4", 5/16", 3/8", 3/4" & 7/8"
Lateral Stop
Repetitive & 45Ā° Cuts
Large-Format Support
4 Supplementary Arms
Carrying Case
Not Included
About This Product
Manual Cutter for Ceramic and Porcelain Tile
RUBIĀ® HIT-N Manual Tile Cutters are designed for frequent cutting of wall tile, stoneware, and porcelain tile, including demanding large-format installations. The range offers straight cutting capacities from 33-1/2" to 47.25" with up to 1,764 lbs. of separation power.
Smooth Scoring and One-Handed Breaking
Linear ball-bearing sliders provide smooth scoring movement, while the high-performance movable breaker delivers the force needed to separate dense tile. RUBI's MAGNET system allows one-handed operation for faster scoring and breaking while maintaining clear visibility of the scoring line.
Rigid Frame for Large-Format Tile
A closed structure with an extruded aluminum base increases rigidity and cutting capacity. Two 3/4" chromed, rectified, and calibrated steel guides resist flexing and feature an anti-corrosion treatment, while four aluminum support arms provide additional support for large-format tile.
Repetitive and 45Ā° Tile Cutting
An adjustable lateral stop supports repetitive and 45Ā° cuts, and the soft-grip handle improves control during frequent use. Each cutter includes a 5/16" scoring wheel and accepts RUBI scoring wheels in 1/4", 5/16", 3/8", 3/4", and 7/8" sizes for different ceramic materials.
Common Questions
Frequently Asked Questions
What types of tile can the RUBI HIT-N cut?
The HIT-N series is designed for frequent cutting of wall tile, stoneware, and porcelain tile.
What are the cutting capacities of the HIT-N models?
The HIT-850 N provides a 33-1/2" straight cut, the HIT-1000 N provides a 39" straight cut, and the HIT-1200 N provides a 47.25" straight cut.
What tile thickness can the HIT-N cutters handle?
All three HIT-N models are designed to cut tile from 1/8" to 5/8" thick.
How much separation power do the HIT-N cutters provide?
Each HIT-N model provides up to 1,764 lbs. of separation power.
Can the HIT-N make diagonal and repetitive cuts?
Yes. The lateral stop supports repetitive and 45Ā° cuts. Diagonal capacity varies by model, from 23-5/8" Ć 23-5/8" on the HIT-850 N to 33-1/2" Ć 33-1/2" on the HIT-1200 N.
What scoring wheel is included with the RUBI HIT-N?
Each HIT-N cutter includes a 5/16" scoring wheel. The cutter also accepts 1/4", 5/16", 3/8", 3/4", and 7/8" scoring wheels for different ceramic materials.
Does the RUBI HIT-N include a carrying case?
No. A carrying case is not included with the HIT-850 N, HIT-1000 N, or HIT-1200 N.
