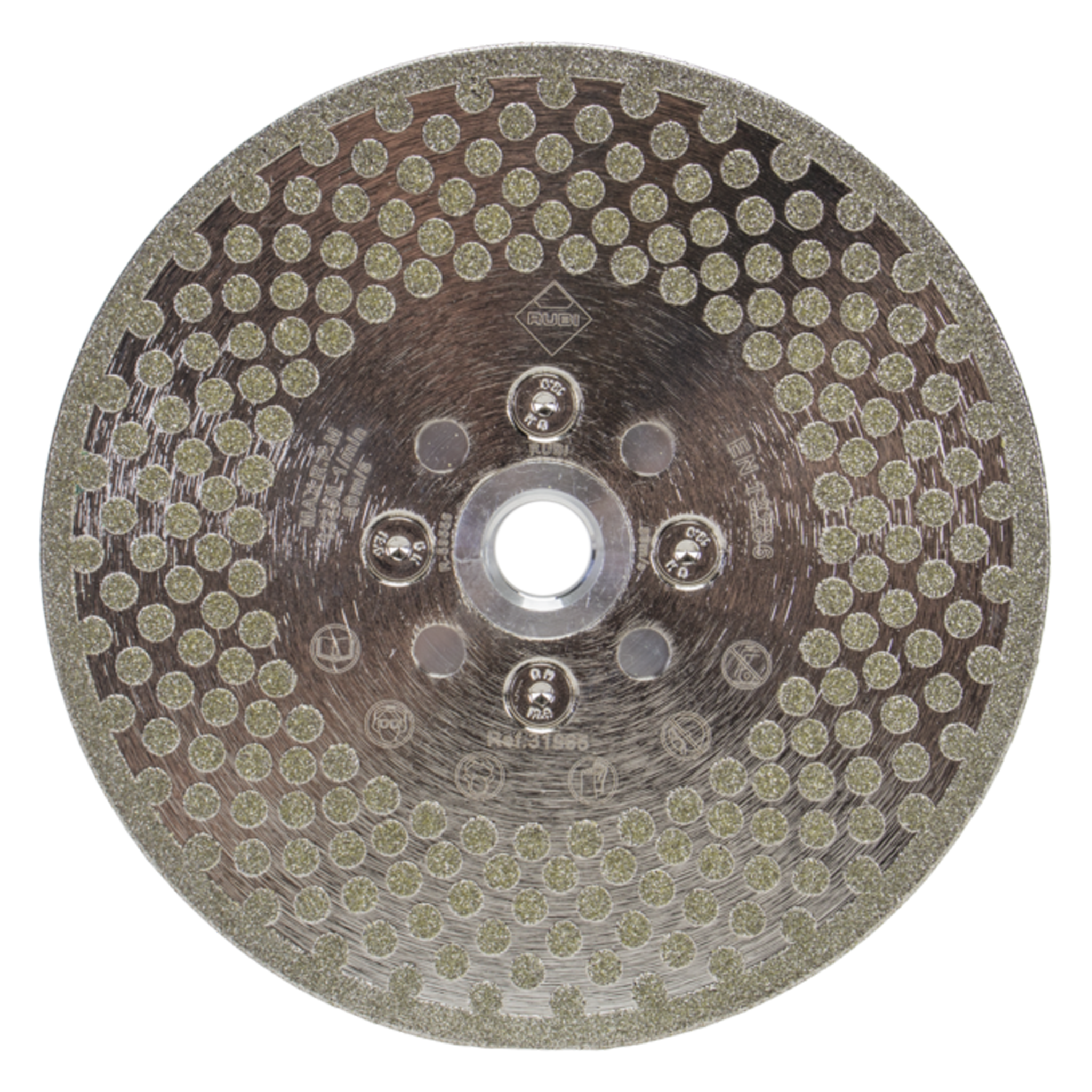

RUBI ECD Cut & Roughing Electrodeposited Diamond Blades (4-1/2" & 5")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Blade Diameter
5"
Arbor Size
5/8"
Maximum Speed
12,250 RPM
Cutting Method
Dry
Functions
Cutting & Roughing
Diamond Surface
Both Sides
Compatible Materials
Ceramic Tile, Natural Stone & Synthetic Materials
Recommended Tool
Angle Grinder
Why Choose This Product
Key Benefits
Two-in-One Design
Cuts and roughs material with the same diamond blade
Double-Sided Diamond
Uses both sides for grinding and edge-finishing work
Reduced Vibration
Electrodeposited design reduces vibration during dry cutting
Edge Finishing
Adjusts, grinds and finishes cut edges
Material Versatility
Works with ceramic tile, natural stone and synthetic materials
Dry Cutting
Designed for use with an angle grinder without water
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
31977
UPC
8413797319774
Product Type
Cut & Roughing Electrodeposited Diamond Blade
Blade Diameter
5"
Arbor Size
5/8"
Maximum RPM
12,250
Functions
Cutting, Roughing & Edge Finishing
Cutting Method
Dry
Blade Design
Continuous Rim
Diamond Type
Electrodeposited
Diamond Surface
Both Sides
Compatible Materials
Ceramic Tile, Natural Stone & Synthetic Materials
Recommended Tool
Angle Grinder
Edge Work
Grinding, Adjustment & Finishing
Vibration
Reduced During Dry Cutting
About This Product
Cutting and Roughing with One Diamond Blade
RUBI® ECD Cut & Roughing Electrodeposited Diamond Blades combine cutting and roughing functions in a single blade. They are designed for dry cutting, grinding, edge adjustment, and finishing of ceramic tile, natural stone, and synthetic materials with an angle grinder.
Continuous Rim Cutting with Electrodeposited Diamond
The ECD blade combines the cutting quality of a continuous rim with the smooth roughing performance of an electrodeposited diamond surface. This design reduces vibration during dry cutting, making it well suited for materials with a higher risk of breakage.
Double-Sided Diamond for Grinding and Edge Finishing
Diamond is applied to both sides of the blade for roughing and edge-finishing work. The blade can be turned over after one side is worn, allowing both diamond-coated surfaces to be used for grinding applications.
Common Questions
Frequently Asked Questions
What materials can the RUBI ECD Diamond Blade cut?
The ECD blade is designed for ceramic tile, natural stone, and synthetic materials.
Can the RUBI ECD blade cut and grind?
Yes. The ECD is a two-in-one diamond blade designed for cutting as well as roughing, grinding, edge adjustment, and finishing.
Is the RUBI ECD blade designed for wet or dry cutting?
The ECD blade is designed for dry cutting with an angle grinder.
Why does the ECD blade have diamond on both sides?
The double-sided diamond surface allows both sides of the blade to be used for roughing and edge-finishing work. The blade can be turned over after one side becomes worn.
Does the ECD blade reduce vibration while cutting?
Yes. Its electrodeposited diamond design reduces vibration during dry cutting, which is useful when working with materials that have a higher risk of breakage.
What arbor size do the RUBI ECD blades use?
Both the 4-1/2" and 5" ECD blades have a 5/8" arbor.
