RUBI DX-350-N 1300 Laser & Level Wet Bridge Tile Saw, 58-1/2"
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
52"
Plunge Cut Capacity
58"
Diagonal Cut Capacity
41.5" x 41.5"
Maximum Cutting Thickness
8-5/8" Double Pass
Blade Sizes
12" & 14"
Arbor Size
1"
Motor Speed
3,400 RPM
Power Supply
120V / 60Hz
Why Choose This Product
Key Benefits
Large-Format Capacity
Handles 52-1/8" straight cuts, 58-1/2" plunge cuts, and 41-3/8" diagonal tile.
Deep Cutting
Reaches 4-1/8" in one pass or 8-5/8" using two passes.
3 HP Direct Drive
Supplies power for intensive cutting of compatible tile, stone, and masonry materials.
Laser and Level
A 2 mW line laser improves positioning while the integrated level assists with setup.
Repeatable Precision
Lateral stop supports repeat cuts while sliding bearings guide the motor assembly.
Jobsite-Friendly Design
Folding legs, wheels, removable tables, and water tank simplify transport and cleaning.
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
52918
UPC
8413797529180
Product Type
Wet Bridge Tile Saw
Model
DX-350 N 1300
Power Supply
120V / 60Hz
Motor Speed
3,400 RPM
Straight Cut Capacity
52"
Plunge Cut Capacity
58"
Diagonal Cut Capacity
41.5" x 41.5"
Maximum Thickness - Single Pass
4-1/8"
Maximum Thickness - Double Pass
8-5/8"
Miter Cut Thickness
2.5"
Blade Sizes
12" & 14"
Arbor Size
1"
Overall Dimensions
79" x 34" x 56"
Weight
220 lbs
Blade Included
No
Power Cable Included
No
About This Product

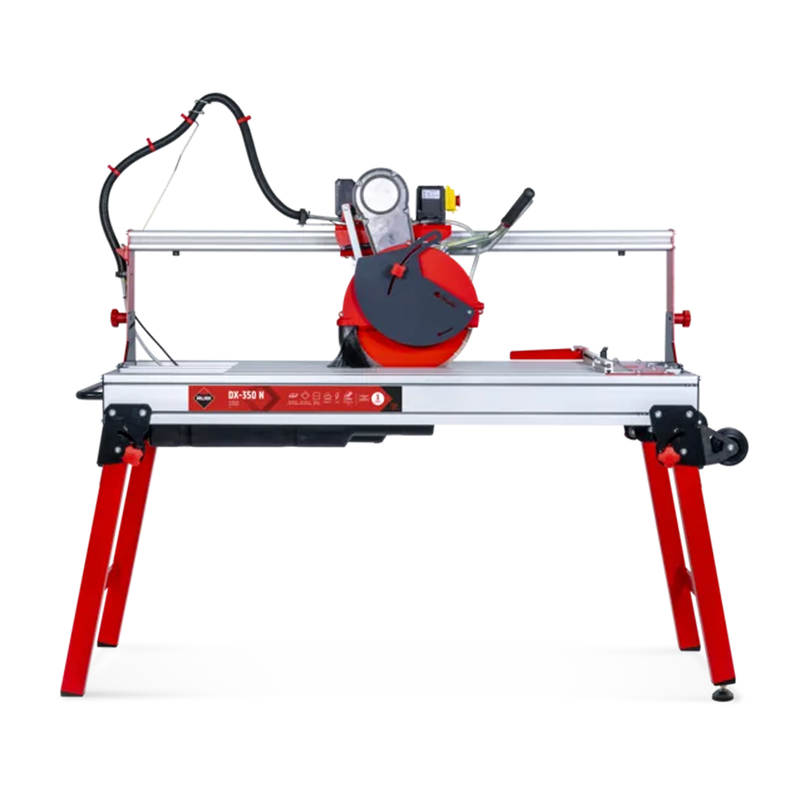

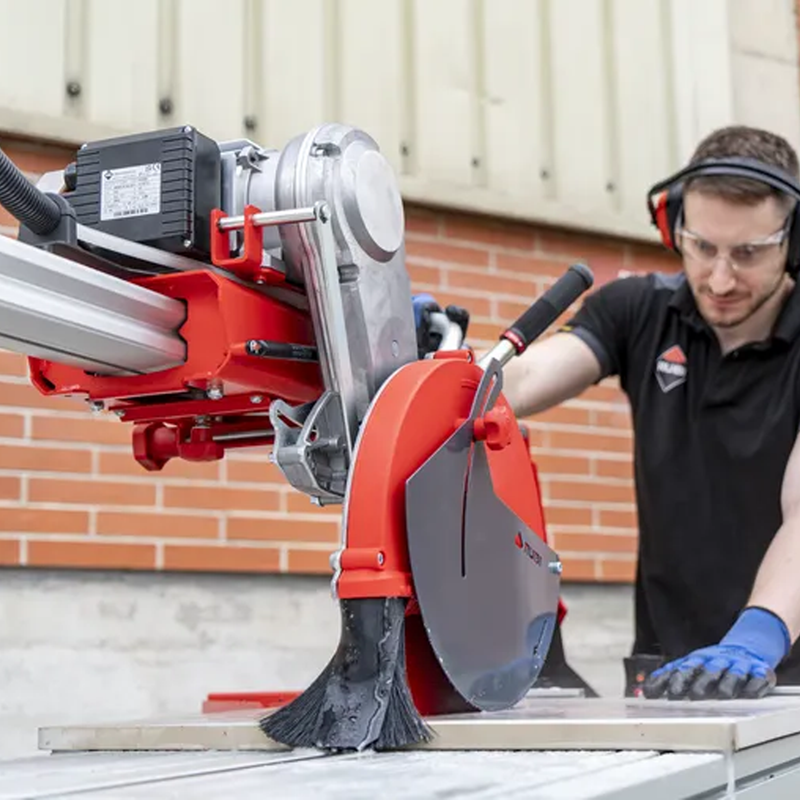

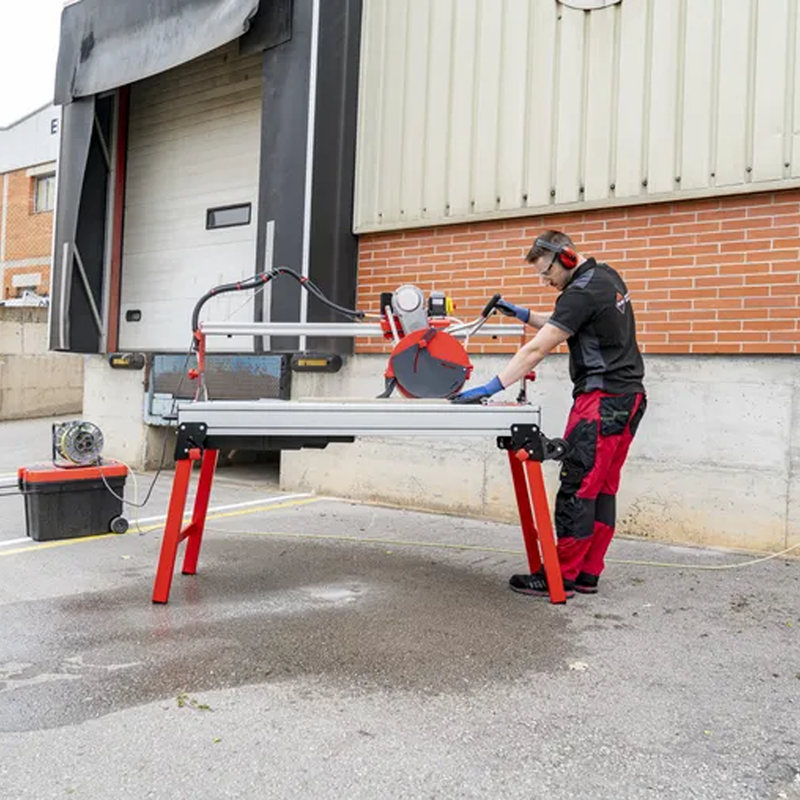

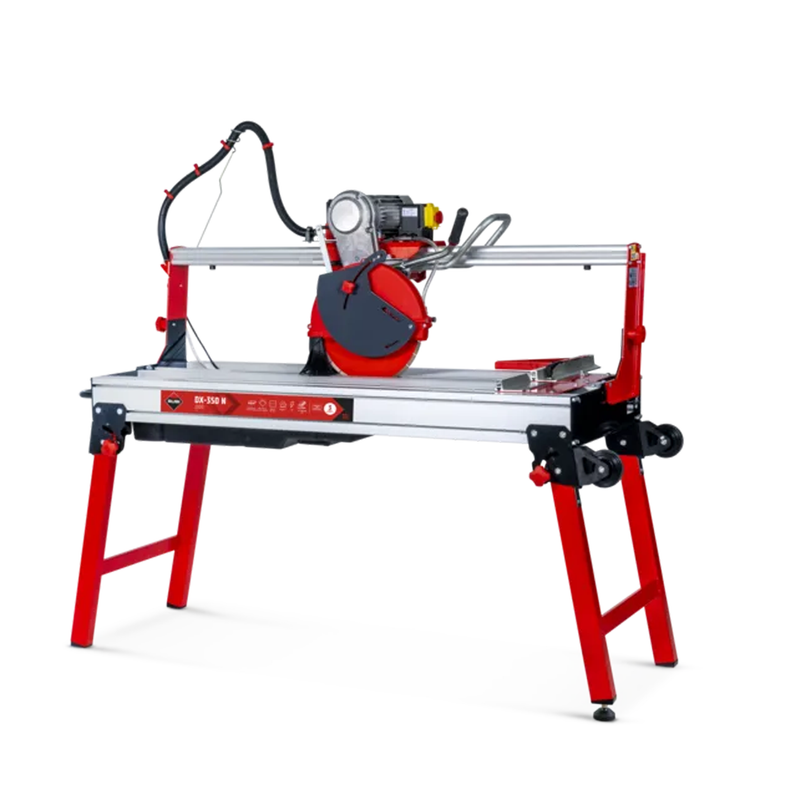

RUBI DX-350-N 1300 for Large-Format Tile and Stone
The RUBI DX-350-N 1300 Laser & Level is a professional mobile-head wet bridge tile saw for intensive cutting of porcelain, ceramic, marble, granite, façade brick, fireproof brick, and other compatible building materials. Its 3 HP direct-drive motor provides the capacity and versatility needed for large-format tile and stone work.

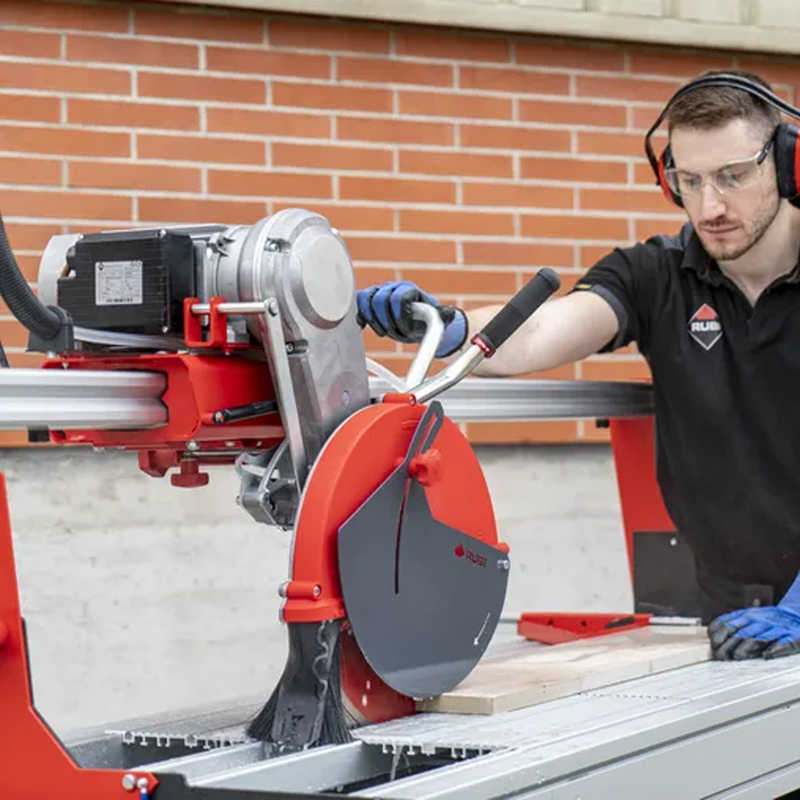

58-1/2" Plunge Cutting Capacity
The mobile cutting head provides a 52-1/8" straight cut, 58-1/2" plunge cut, and 41-3/8" × 41-3/8" diagonal capacity. It cuts up to 4-1/8" thick in one pass or 8-5/8" using two passes.
DX-350-N Laser & Level for Visible Alignment
A 2 mW line laser improves cut-line visibility and helps position the material, while the integrated level assists with machine setup. The lateral stop supports repetitive cuts, and sliding bearings guide the motor assembly accurately along the bridge.
Jobsite Mobility and Easier Cleaning

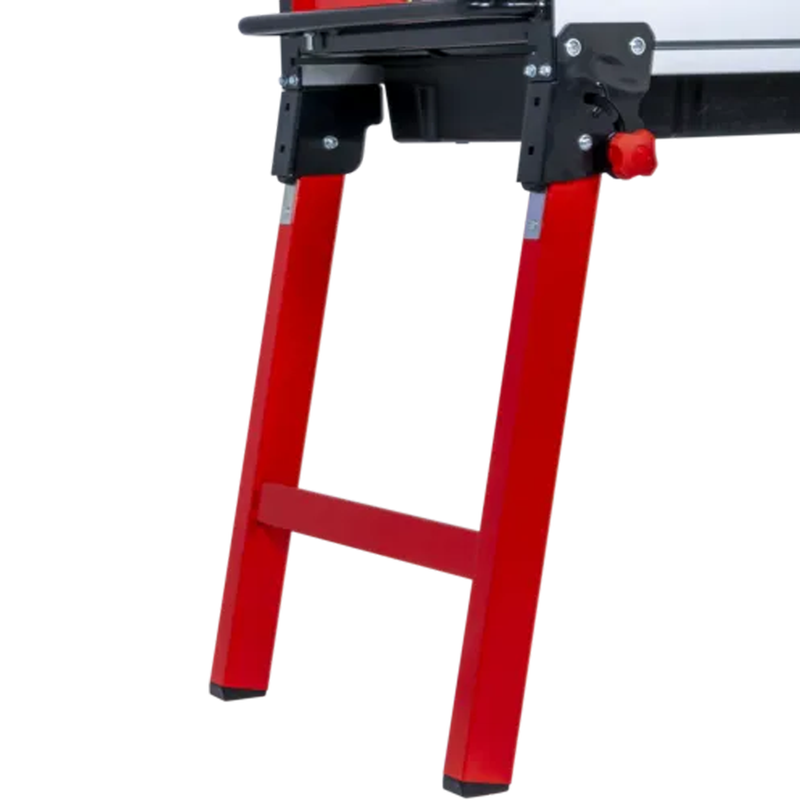

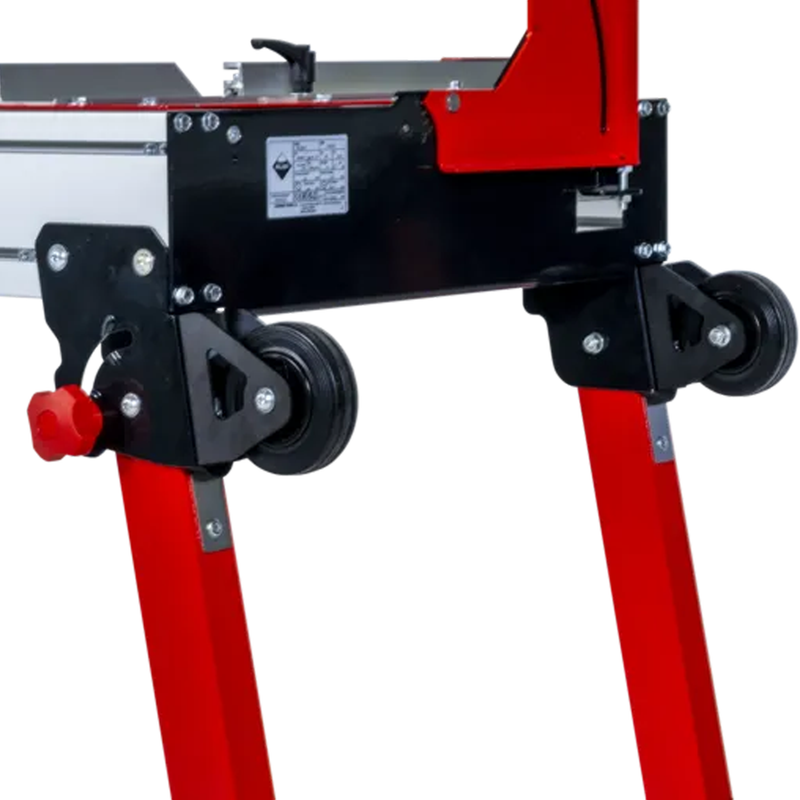

The aluminum structure combines strength with reduced weight. Foldable legs and wheels simplify transportation, while removable tables and a removable water tank provide easier access for cleaning after wet cutting.
Common Questions
Frequently Asked Questions
What are the cutting capacities of the RUBI DX-350-N 1300?
The saw provides a 52-1/8" straight cutting capacity and a 58-1/2" capacity using the plunge effect. It accommodates tile up to 41-3/8" × 41-3/8" for diagonal cuts.
How thick can the DX-350-N 1300 cut?
It cuts material up to 4-1/8" thick in one pass or 8-5/8" using two passes. Maximum mitre cutting thickness is 2-1/2" when using a 14" blade.
What blade sizes fit the saw?
The U.S. 120V model accepts 12" and 14" blades. RUBI’s technical datasheet specifies a 1" (25.4 mm) arbor, so the selected blade must match both requirements.
What materials can the DX-350-N cut?
The saw is designed for porcelain and ceramic tile as well as marble, granite, façade brick, fireproof brick, and other compatible building materials. Its mobile head supports both standard and plunge cutting.
What do the laser and level provide?
The DX-350-N Laser & Level configuration includes a 2 mW line laser that improves cut-line visibility and material positioning. It also includes an integrated level for checking the machine setup.
Can the saw make repetitive cuts?
Yes. The included lateral stop helps position material for consistent repetitive cuts. Sliding bearings provide precise, reliable movement as the motor assembly travels along the bridge.
Are a blade and power cable included?
No. RUBI specifies that the machine is supplied without a blade or power cable. Compatible components must be selected separately for the saw’s blade and electrical requirements.
How is the saw transported and cleaned?
The aluminum frame includes foldable legs and wheels to simplify transportation. The working tables and water tank are removable, providing easier access when cleaning the machine after wet cutting.
