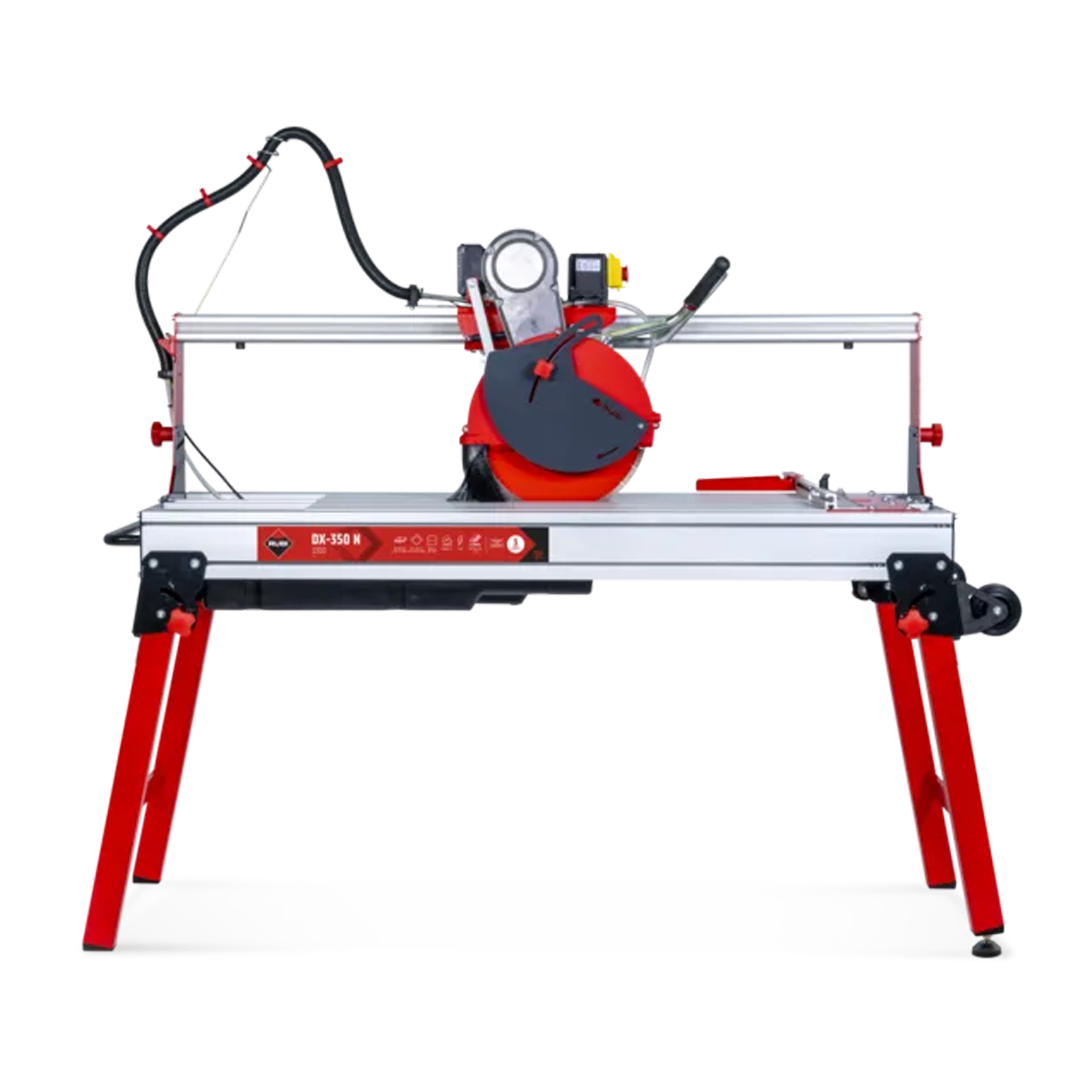

RUBI DX-350-N 1300 Laser & Level Wet Bridge Tile Saw, 58"
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
52"
Plunge Cut Capacity
58"
Diagonal Cut Capacity
41.5" x 41.5"
Maximum Cutting Thickness
8-5/8" Double Pass
Blade Sizes
12" & 14"
Arbor Size
1"
Motor Speed
3,400 RPM
Power Supply
120V / 60Hz
Why Choose This Product
Key Benefits
Large-Format Cutting
Handles straight cuts up to 52" and plunge cuts up to 58"
Deep Cutting Capacity
Cuts up to 4-1/8" in one pass or 8-5/8" with a double pass
Laser Cutting Guide
2 mW line laser improves visibility and material positioning
Mobile Cutting Head
Plunge-cut design provides added versatility for different materials
Repetitive Cuts
Lateral stop supports consistent repeated cuts
Jobsite Mobility
Foldable legs and wheels simplify transportation
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
52918
UPC
8413797529180
Product Type
Wet Bridge Tile Saw
Model
DX-350 N 1300
Power Supply
120V / 60Hz
Motor Speed
3,400 RPM
Straight Cut Capacity
52"
Plunge Cut Capacity
58"
Diagonal Cut Capacity
41.5" x 41.5"
Maximum Thickness - Single Pass
4-1/8"
Maximum Thickness - Double Pass
8-5/8"
Miter Cut Thickness
2.5"
Blade Sizes
12" & 14"
Arbor Size
1"
Overall Dimensions
79" x 34" x 56"
Weight
220 lbs
Blade Included
No
Power Cable Included
No
About This Product
58" Cutting Capacity for Large-Format Tile
The RUBIĀ® DX-350-N 1300 Laser & Level Wet Bridge Tile Saw is a mobile-head saw for cutting ceramic tile, marble, granite, faƧade brick, fireproof brick, and other building materials. It provides a 52" straight cut capacity, 58" plunge cut capacity, and 41.5" x 41.5" diagonal cutting capacity.
Plunge Cutting and 8-5/8" Maximum Cutting Thickness
The mobile cutting head provides plunge-cut capability for greater versatility and increased cutting depth. The saw cuts material up to 4-1/8" thick in a single pass or up to 8-5/8" thick using a double pass and accepts both 12" and 14" blades.
Laser Guide and Repetitive Cutting
A 2 mW line laser improves visibility and helps position material for accurate cuts. The included lateral stop supports repetitive cutting, while the motor assembly rides on sliding bearings for precise and reliable movement along the bridge.
Jobsite Transport and Cleanup
The aluminum structure reduces machine weight while providing durability for jobsite use. Foldable legs with wheels simplify transport, and removable tables and a removable water tank provide easier access for cleaning after cutting.
Common Questions
Frequently Asked Questions
What is the maximum straight cutting capacity of the RUBI DX-350-N 1300?
The DX-350-N 1300 has a maximum straight cutting capacity of 52". Its plunge cutting capacity extends to 58".
What size tile can the DX-350-N 1300 cut diagonally?
The saw can diagonally cut material up to 41.5" x 41.5".
How thick can the RUBI DX-350-N 1300 cut?
It can cut material up to 4-1/8" thick in a single pass and up to 8-5/8" thick using a double pass.
What blade sizes fit the DX-350-N 1300?
The saw accepts 12" and 14" blades with a 1" arbor.
What materials can the DX-350-N 1300 cut?
It is designed for ceramic tile and building materials including marble, granite, faƧade brick, and fireproof brick.
Does the DX-350-N 1300 have a laser guide?
Yes. The saw has a 2 mW line laser to improve visibility and help position material for cutting.
Does the RUBI DX-350-N 1300 include a blade?
No. The saw is supplied without a blade.
Does the DX-350-N 1300 include a power cable?
No. The power cable is not included.
