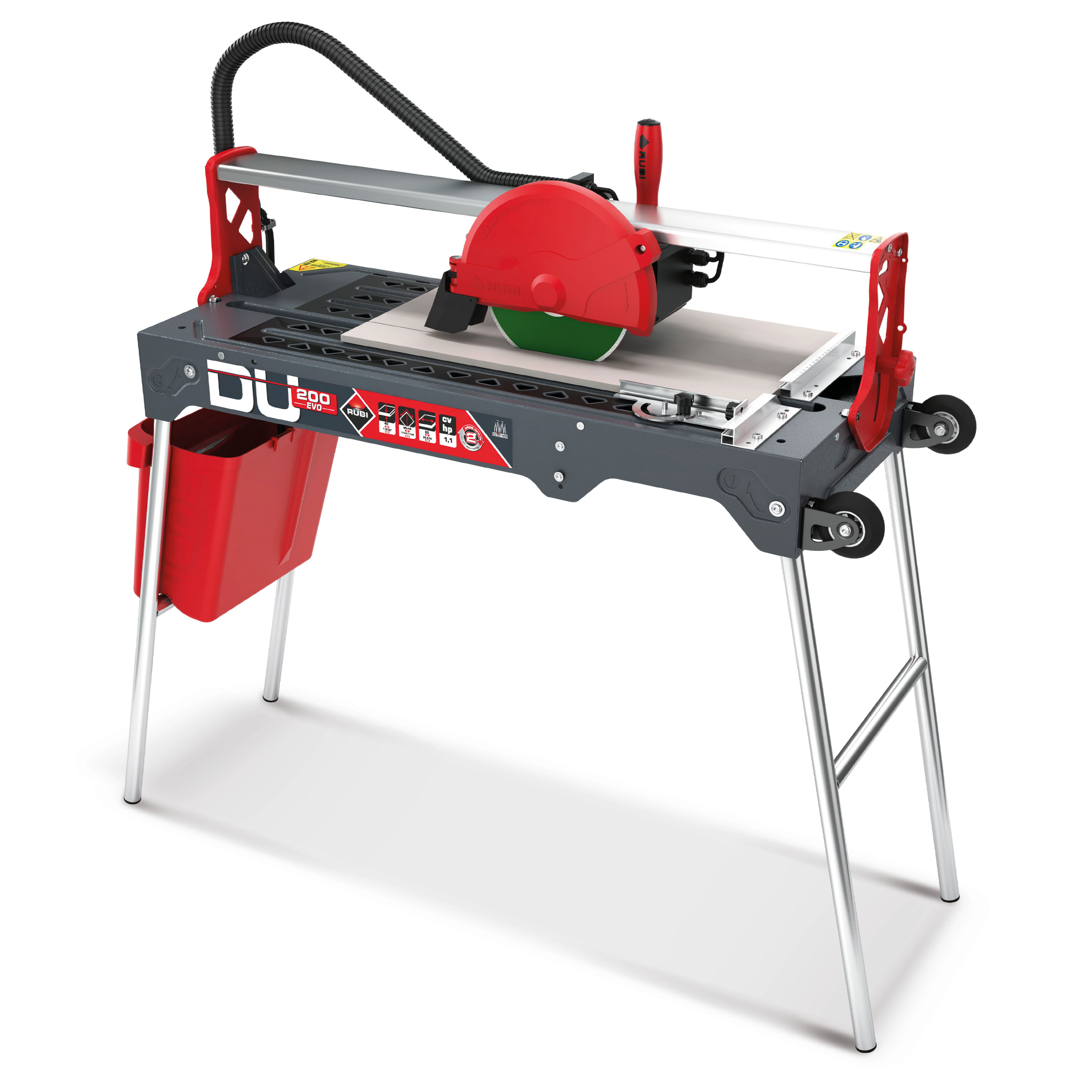

RUBI DU-200 EVO Wet Bridge Tile Saws (25-1/2" - 33-1/2")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Cutting Length
25-1/2"
Diagonal Capacity
18" x 18"
Cutting Depth
1-3/8"
Miter Cutting Depth
3/4"
Blade Size
8"
Motor Speed
3,200 RPM
Power Supply
120V / 60Hz
Weight
50 lbs
Why Choose This Product
Key Benefits
Mobile Cutting Head
Sliding motor assembly supports controlled straight cuts
Miter Cutting
Foldable motor assembly provides angled cutting capability
Adjustable Square
Sets from 0° to 45° for angled and repetitive cuts
C3 Cooling System
Cools and cleans the diamond blade during cutting
5-Position Water Control
Adjusts blade cooling to material hardness and abrasiveness
Jobsite Transport
Foldable legs, wheels and handle simplify setup and movement
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
55907
Product Type
Wet Bridge Tile Saw
Model
DU-200 EVO 650
Cutting Length
25-1/2"
Diagonal Cutting Capacity
18" x 18"
Maximum Cutting Depth
1-3/8"
Miter Cutting Depth
3/4"
Blade Size
8"
Included Blade
8" CEV-PRO Diamond Blade
Power Supply
120V / 60Hz
Motor Speed
3,200 RPM
Adjustable Square
0° to 45°
Blade Cooling
C3 System with 5-Position Diffuser
Machine Dimensions
46" x 15" x 40"
Weight
50 lbs
About This Product
Wet Bridge Saw for Floor and Wall Tile
The RUBI® DU-200 EVO Wet Bridge Tile Saw is a mobile-head saw designed for renovation and light-duty tile installation work. It is intended for frequent cutting of floor and wall tile and occasional cutting of porcelain tile.
25-1/2" and 33-1/2" Cutting Capacities
The DU-200 EVO is available with a 25-1/2" cutting length for tile up to 18" x 18" diagonally or a 33-1/2" cutting length for tile up to 24" x 24" diagonally. Both models provide a maximum cutting depth of 1-3/8" and use an 8" diamond blade.
Straight, Repetitive and Miter Cutting
The sliding motor assembly can be tilted for miter cuts, while the adjustable square provides settings from 0° to 45°. A lateral stop supports repetitive cuts, and the direct-drive motor includes thermal protection.
Adjustable Blade Cooling System
RUBI's C3 System cools and cleans the blade during cutting. The front cooling diffuser offers five positions to adjust water delivery based on material hardness or abrasiveness.
Built-In Transport and Setup Features
Foldable legs are integrated into the reinforced chassis for jobsite setup and storage. Built-in wheels and a transport handle simplify movement, while the external water tank can be removed for handling and cleaning. Each saw includes an 8" CEV-PRO diamond blade.
Common Questions
Frequently Asked Questions
What materials is the RUBI DU-200 EVO designed to cut?
The DU-200 EVO is designed for frequent cutting of floor and wall tile and occasional cutting of porcelain tile.
What is the cutting capacity of the DU-200 EVO 650?
The DU-200 EVO 650 has a 25-1/2" cutting length and can diagonally cut tile up to 18" x 18".
What is the cutting capacity of the DU-200 EVO 850?
The DU-200 EVO 850 has a 33-1/2" cutting length and can diagonally cut tile up to 24" x 24".
Can the DU-200 EVO make miter cuts?
Yes. The motor assembly folds for miter cutting, with a miter cutting depth of up to 3/4". The adjustable square can be set from 0° to 45°.
What size blade does the DU-200 EVO use?
Both models use an 8" diamond blade and include an 8" RUBI CEV-PRO blade.
How does the C3 blade cooling system work?
The C3 System cools and cleans the blade during cutting. A five-position front diffuser allows the water delivery to be adjusted based on the hardness or abrasiveness of the material.
Does the DU-200 EVO include a stand?
Yes. Foldable legs are built into the saw for jobsite setup and storage. The saw also includes wheels and a handle for transport.
