RUBI DS-250-N Laser & Level Wet Bridge Tile Saws (52" - 60")
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Cutting Length
52"
Diagonal Capacity
36-3/4" × 36-3/4"
Motor
3 HP Direct Drive
Blade Capacity
Up to 14"
Included Blade
12" VIP Turbo Mesh Diamond Blade
Blade Speed
3,400 RPM
Miter Capability
45°
Weight
213 lbs
Why Choose This Product
Key Benefits
Large-Format Cutting
Available with 52" or 60" maximum cutting length
Precision Mobile Head
Sliding-bearing motor assembly supports accurate, reliable cuts
45° Miter Capability
Folding cutting head provides precise miter cutting
Laser Alignment
2 mW line laser improves visibility and tile positioning
Powerful Direct Drive
3 HP motor provides 3,400 RPM blade speed
Jobsite Mobility
Folding legs and wheels simplify transportation
Easy Cleaning
Removable tables and water tank provide easier maintenance access
Repetitive Cutting
Lateral stop supports consistent repeated cuts
Product Information
Product Details
Specifications
Brand
RUBI®
Part Number
52934
UPC
8413797529340
Product Type
Wet Bridge Tile Saw
Model
DS-250-N 1300
Cutting Length
52"
Diagonal Cut Capacity
36-3/4" × 36-3/4"
Motor
3 HP Direct Drive
Blade Capacity
12" & 14"
Included Blade
12" VIP Turbo Mesh Diamond Blade
Arbor
1"
Blade Speed
3,400 RPM
Miter Capability
45°
Alignment
2 mW Line Laser
Compatible Materials
Wall Tile, Floor Tile, Porcelain, Marble & Granite
Legs
Folding with Wheels
Weight
213 lbs
About This Product
Bridge Saw for Large-Format Tile

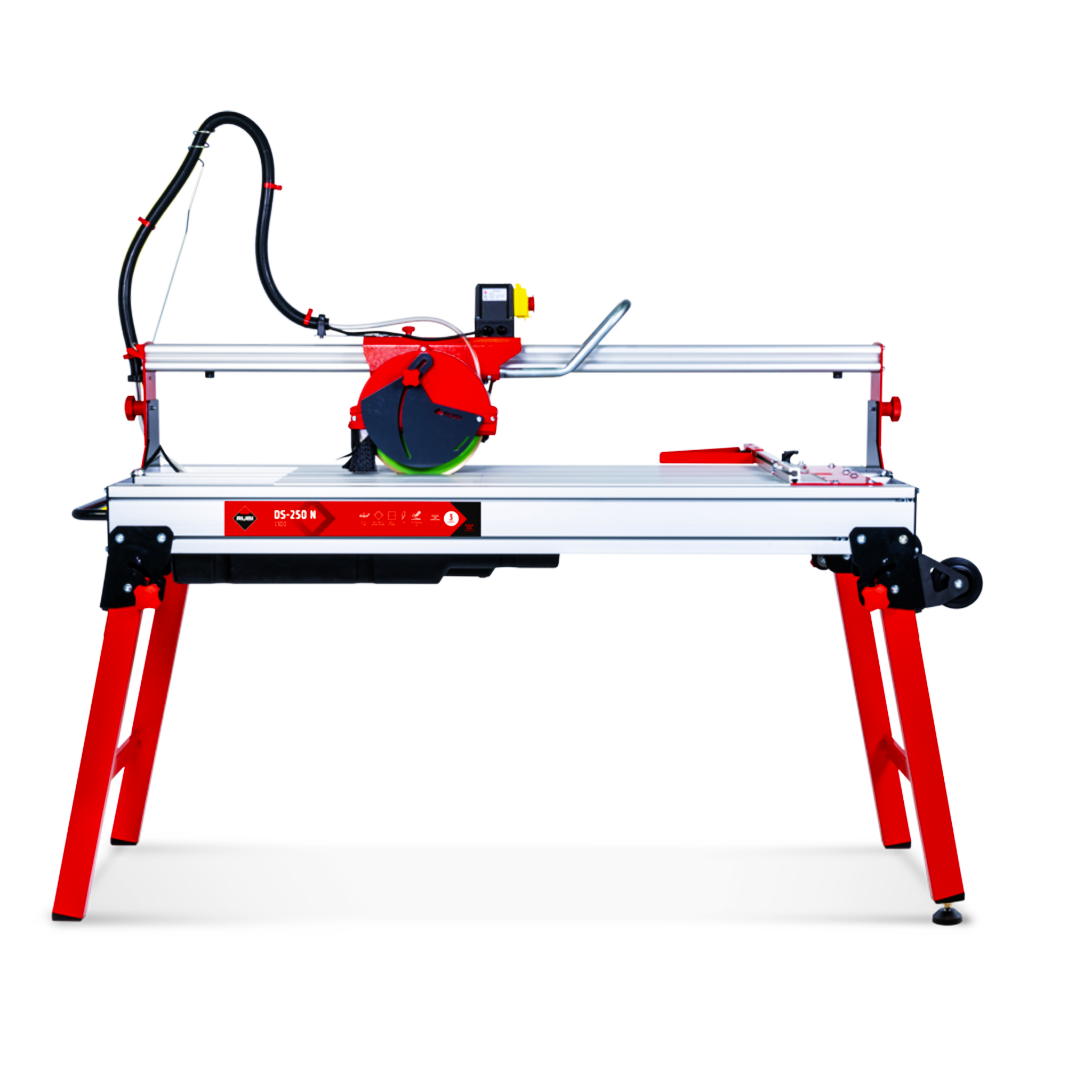

The RUBI® DS-250-N Laser & Level Wet Bridge Tile Saw is a mobile-head bridge saw designed for accurate straight and miter cuts in wall tile, floor tile, porcelain, marble, granite, and other tile and stone materials. The motor assembly travels on sliding bearings for precise, reliable cutting across large-format material.
52" and 60" Cutting Capacities
The DS-250-N is available with a 52" cutting length and 36-3/4" × 36-3/4" diagonal capacity or a 60" cutting length and 42-3/8" × 42-3/8" diagonal capacity. A 3 HP direct-drive motor operates blades at 3,400 RPM and accepts diamond blades up to 14" with a 1" arbor.
45° Miter Cutting and Laser Alignment
The cutting head folds to 45° for miter cuts, while the 2 mW line laser improves visibility and tile positioning. A lateral stop supports repetitive cuts, and the blade protector accommodates turbo and segmented diamond blades.
Transport and Jobsite Cleanup
The aluminum structure combines strength with reduced machine weight, while folding legs and integrated wheels simplify jobsite transportation. Removable work tables and a removable water tank provide easier access for cleaning after wet cutting.
Common Questions
Frequently Asked Questions
What materials can the RUBI DS-250-N cut?
The DS-250-N is designed for cutting wall tile, floor tile, porcelain, marble, granite, and other compatible tile and stone materials.
What is the cutting capacity of the RUBI DS-250-N?
The DS-250-N 1300 provides a 52" cutting length and 36-3/4" × 36-3/4" diagonal capacity. The DS-250-N 1500 provides a 60" cutting length and 42-3/8" × 42-3/8" diagonal capacity.
Can the RUBI DS-250-N make miter cuts?
Yes. The cutting head folds to 45° for miter cutting.
What size blade does the DS-250-N use?
The saw accepts diamond blades up to 14" in diameter with a 1" arbor. The listed models include a 12" VIP Turbo Mesh Diamond Blade.
Does the DS-250-N have a laser guide?
Yes. A 2 mW line laser improves cutting-line visibility and helps position tile for accurate cuts.
Is the RUBI DS-250-N portable?
The saw has folding legs with wheels to make transportation around the jobsite easier. The DS-250-N 1300 weighs 213 lbs, while the DS-250-N 1500 weighs 220 lbs.
