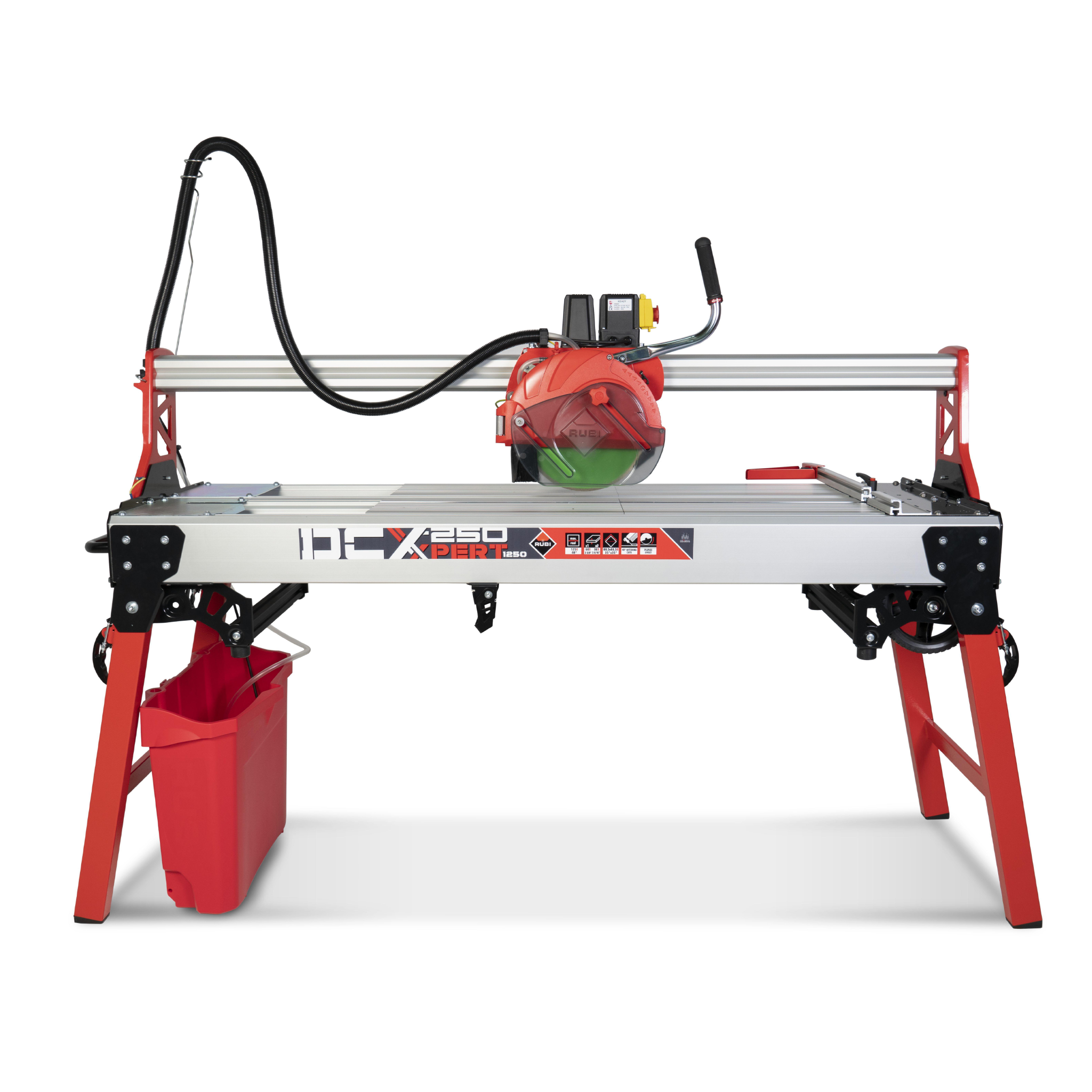

RUBI DCX-250 XPERT Wet Bridge Tile Saws (52" - 64")
Fast Shipping
Easy Returns
Secure Checkout
Recommended Add-Ons
You May Also Need
RUBI USA
RUBI Adjustable Length Lateral Stop
For Stabilizing Large Format Tile on RUBI Electric Cutters
$66.37
RUBI USA
RUBI DV, DC & DCX Tile Saw Table Extension
Large-Format Tile Support for Compatible RUBI Electric Tile Saws
$168.40
At a Glance
Quick Decision Guide
Blade Size
10"
Cutting Length
49-1/4"
Maximum Cutting Length
52-3/8"
Diagonal Capacity
35-3/8" Ć 35-3/8"
Maximum Cutting Thickness
2-3/8" Single Pass / 3-1/2" Two Passes
Blade Speed
3,350 RPM
Angular Cutting Range
0Ā° to 60Ā°
Weight
172 lbs
Why Choose This Product
Key Benefits
Intensive Tile Cutting
Built for professional cutting of porcelain, stoneware and ceramic tile
Plunge Cutting
Adjustable cutting height increases versatility for different cuts and material thicknesses
Reinforced Structure
Triple-beam aluminum chassis and reinforced guide improve stability and cut quality
Adjustable Water Delivery
Directs cooling water to the cutting point based on material thickness
0Ā° to 60Ā° Cutting
Adjustable aluminum square supports angled and repetitive cuts
Jobsite Transport
Telescopic handle, all-terrain wheels and folding legs simplify movement and setup
ZERO DUST System
Reduces airborne dust generated during cutting
Water Recovery
Double steel decanter and removable 8-gallon tank support efficient water management
Product Information
Product Details
Specifications
Brand
RUBIĀ®
Part Number
52969
UPC
8413797529623
Product Type
Wet Bridge Tile Saw
Model
DCX-250 XPERT 1250
Blade Size
10"
Blade Speed
3,350 RPM
Cutting Length
49-1/4"
Maximum Cutting Length
52-3/8"
Diagonal Cutting Capacity
35-3/8" Ć 35-3/8"
Maximum Cutting Thickness
2-3/8" Single Pass / 3-1/2" Two Passes
Miter Cut Thickness
1"
Angular Cutting Range
0Ā° to 60Ā°
Voltage
120V / 60Hz
Water Tank Capacity
8 Gallons
Weight
172 lbs
Power Cord
Not Included
About This Product
Intensive Wet Cutting for Porcelain and Ceramic Tile
RUBIĀ® DCX-250 XPERT Wet Bridge Tile Saws are professional moving-head bridge saws designed for intensive wet cutting of porcelain, stoneware, and ceramic tile, with occasional use on natural stone such as marble and granite. The plunge-cutting head provides adjustable cutting height for greater versatility across different tile thicknesses and cutting applications.
Reinforced Bridge and Chassis for Cutting Accuracy
A reinforced aluminum chassis with a triple-beam system and steel sides increases rigidity and stability during cutting. The reinforced cutting guide supports consistent cut quality, while the adjustable aluminum square provides 0Ā° to 60Ā° angular positioning for repetitive cuts.
Adjustable Water Delivery and Dust Reduction
The adjustable cooling system directs water toward the cutting point based on material thickness to improve blade cooling and reduce water dispersion. A double steel decanter improves water recovery, while RUBI's ZERO DUST system reduces airborne dust generated during cutting.
Jobsite Transport and Setup
A telescopic transport handle, reinforced all-terrain wheels, and folding legs with an anti-fold system and quick locks simplify movement and setup on the jobsite. The removable 8-gallon water tank includes its own handle and wheels, and an upgraded sliding anti-splash cover helps contain water during operation.
Common Questions
Frequently Asked Questions
What materials can the RUBI DCX-250 XPERT cut?
The DCX-250 XPERT is designed for intensive cutting of porcelain, stoneware, and ceramic tile. It can also be used occasionally to cut natural stone such as marble and granite.
What size blade does the DCX-250 XPERT use?
Both DCX-250 XPERT models use a 10" blade and operate at 3,350 RPM.
What is the cutting capacity of the DCX-250 XPERT 1250?
The 1250 model has a 49-1/4" cutting length, a maximum cutting length of 52-3/8", and a diagonal cutting capacity of 35-3/8" Ć 35-3/8".
What is the cutting capacity of the DCX-250 XPERT 1550?
The 1550 model has a 61-1/8" cutting length, a maximum cutting length of 64-1/8", and a diagonal cutting capacity of 43-1/4" Ć 43-1/4".
How thick can the DCX-250 XPERT cut?
Both models can cut material up to 2-3/8" thick in a single pass or up to 3-1/2" thick using two passes. Maximum miter cutting thickness is 1".
Does the DCX-250 XPERT support plunge cutting?
Yes. The moving cutting head provides plunge cutting with adjustable cutting height for different material thicknesses and cutting applications.
What is the angular cutting range?
The adjustable aluminum square provides an angular cutting range from 0Ā° to 60Ā° and can be used for repetitive angled cuts.
Does the RUBI DCX-250 XPERT include a power cord?
No. The manufacturer specifies that the power cord is not included.
