High tensile strength helps level heavy tile
Redesigned clip profile simplifies insertion beneath tile
Available in 1/16", 5/64" and 1/8" sizes
Designed for tile from 1/8" to 1/2" thick
Uses standard Raimondi R.L.S. wedges and pliers
Available in 250, 500 and 2200-count quantities
Product Information

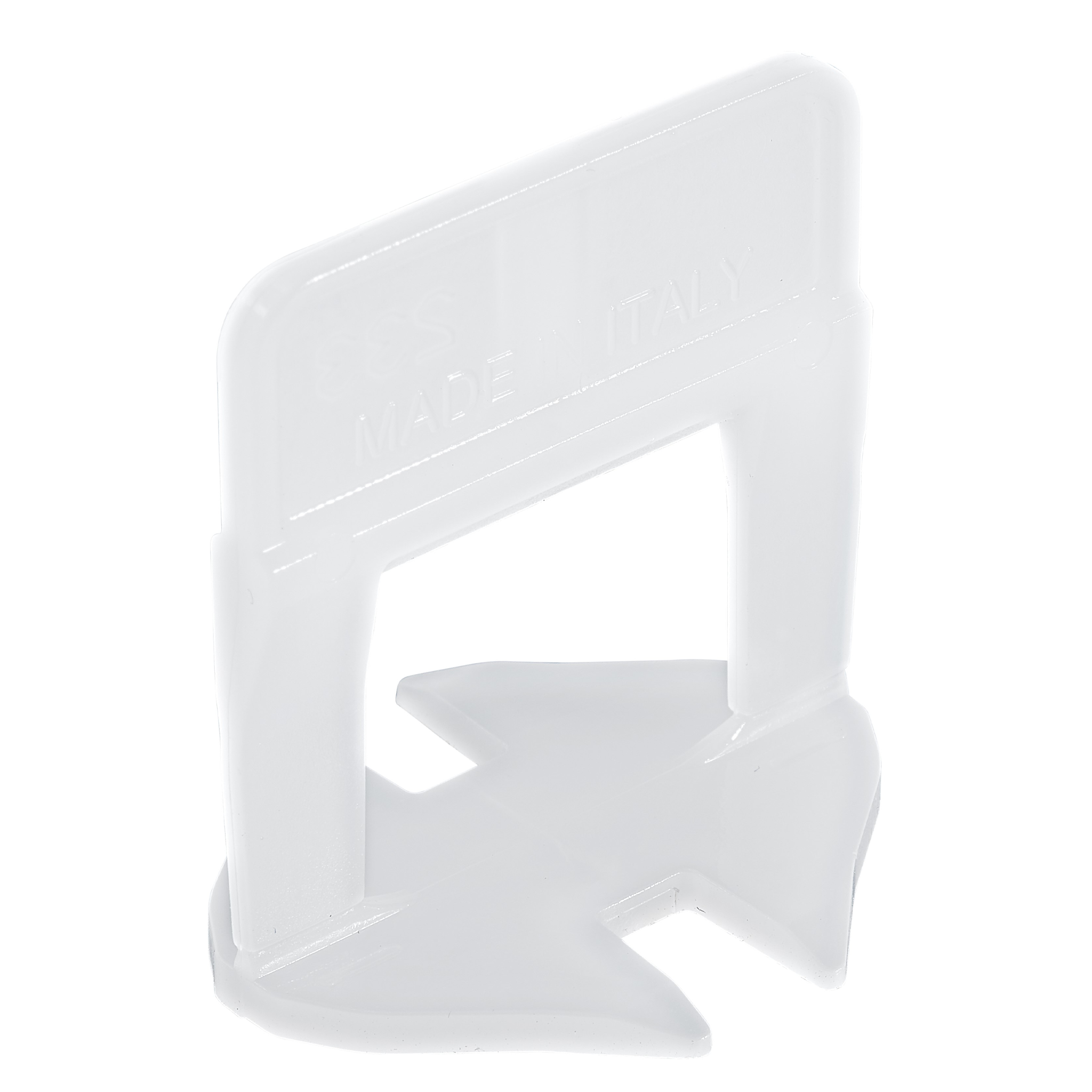

RaimondiĀ® R.L.S. HD Tile Leveling Clips are heavy-duty leveling clips designed to provide high tensile strength and reliable vertical support during tile installation. The increased strength helps level even heavy tiles while reducing height differences between adjacent tile edges.
The redesigned HD clip profile makes insertion beneath the tile easier during installation. Raimondi designed the HD series to provide the highest ease of use within its R.L.S. clip range while maintaining the strength required for demanding tile leveling applications.
R.L.S. HD Clips accommodate tile from 1/8" to 1/2" thick and are available in 1/16" (1.5 mm), 5/64" (2 mm), and 1/8" (3 mm) joint sizes. Multiple package quantities are available for matching the clip supply to projects of different sizes.
The HD clips use the same wedges and installation pliers as other Raimondi R.L.S. clips, allowing installers already using the R.L.S. system to add the heavy-duty clips without changing wedges or tools.
Common Questions
RaimondiĀ® R.L.S. HD Clips are designed for tiles from 1/8" to 1/2" thick.
The clips are available in 1/16" (1.5 mm), 5/64" (2 mm), and 1/8" (3 mm) sizes.
HD stands for Heavy Duty. These clips provide high tensile strength under vertical load and are designed to level even heavy tiles.
Yes. The HD clips use the same wedges as other Raimondi R.L.S. clips, so existing compatible R.L.S. wedges can be used with them.
No. Raimondi states that R.L.S. HD Clips use the same pliers as the other clips in the R.L.S. system.
Yes. Their high tensile strength is specifically designed to provide the vertical load performance needed to level heavy tiles.
Yes. Raimondi redesigned the clip to make insertion beneath the tile easier during installation.
