Raimondi EASY-MOVE MkIV Large Format Tile Handling System
Adjustable Large Format Tile Handling Frame with 8 Vacuum Suction Cups
$2,187.50
Only 1 Left
1 in stock and ready to ship.
- MPN:
- 432EM04TA
- UPC:
- 8050532010550
At a glance
Full specifications- Suction Cups
- 8 RV175 Vacuum Cups
- Vacuum Monitoring
- Individual Vacuum Gauges
- Maximum Slab Length
- 126"
- Minimum Slab Length
- 40"
Product Benefits
- Vacuum Monitoring Gauges continuously indicate vacuum level for safer handling
- Textured Tile Grip RV175 vacuum cups are designed to grip textured slab surfaces
- Flexible Configuration Sliding cups and adjustable profiles adapt to different slab layouts
- Telescopic Crossbars Variable-length crossbars adjust from 35-1/2" to 63"
- Reduced Frame Weight MkIV design weighs over 25% less than the previous generation
- Ergonomic Handling Four sliding soft-grip handles support floor and wall installation
- Slab Flex Compensation ±5° tilting suction cups maintain contact as slabs bend
- Narrow Slab Capability In-line suction cups accommodate slabs down to 7-1/2" wide
Specifications
- Brand
- Raimondi®
- Part Number
- 432EM04TA
- UPC
- 8050532010550
- Product Type
- Large Format Tile & Slab Handling System
- Model
- EASY-MOVE MkIV
- Frame Material
- Aluminum
- Suction Cup Model
- RV175
- Suction Cup Type
- Vacuum Pump with Gauge
- Suction Cup Quantity
- 8
- Suction Cup Body
- Die-Cast Aluminum
- Suction Cup Rubber
- Stain-Free
- Vacuum Monitoring
- Individual Vacuum Gauges
- Vacuum Restoration
- Pump Operable While Cup Remains Attached
- Suction Cup Adjustment
- Sliding Along Profiles
- Suction Cup Tilt
- ±5°
- Crossbars
- 2 Telescopic Crossbars
- Crossbar Minimum Length
- 35-1/2" (90 cm)
- Crossbar Maximum Length
- 63" (160 cm)
- Crossbar Positioning
- Adjustable Angle
- Maximum Slab Length
- 126"
- Minimum Slab Length
- 40"
- Minimum Slab Width
- 7-1/2" (19 cm)
- Handles
- 4 Sliding Handles
- Handle Grip
- Soft Rubber
- Handle Grommets
- Non-Slip & Stain-Proof
- Sliding System
- Anti-Friction Pads
- Weight
- 52.6 lbs
- Included
- EASY-MOVE MkIV Frame, 2 Crossbars, 8 RV175 Suction Cups, Suction Cup Protectors & Use/Maintenance Manual
- Optional Accessory
- Kit of 4 Double Handles for 4-Operator Handling
- Application
- Large Format Tile & Slab Handling, Positioning & Installation
Product details
Large Format Tile and Slab Handling System

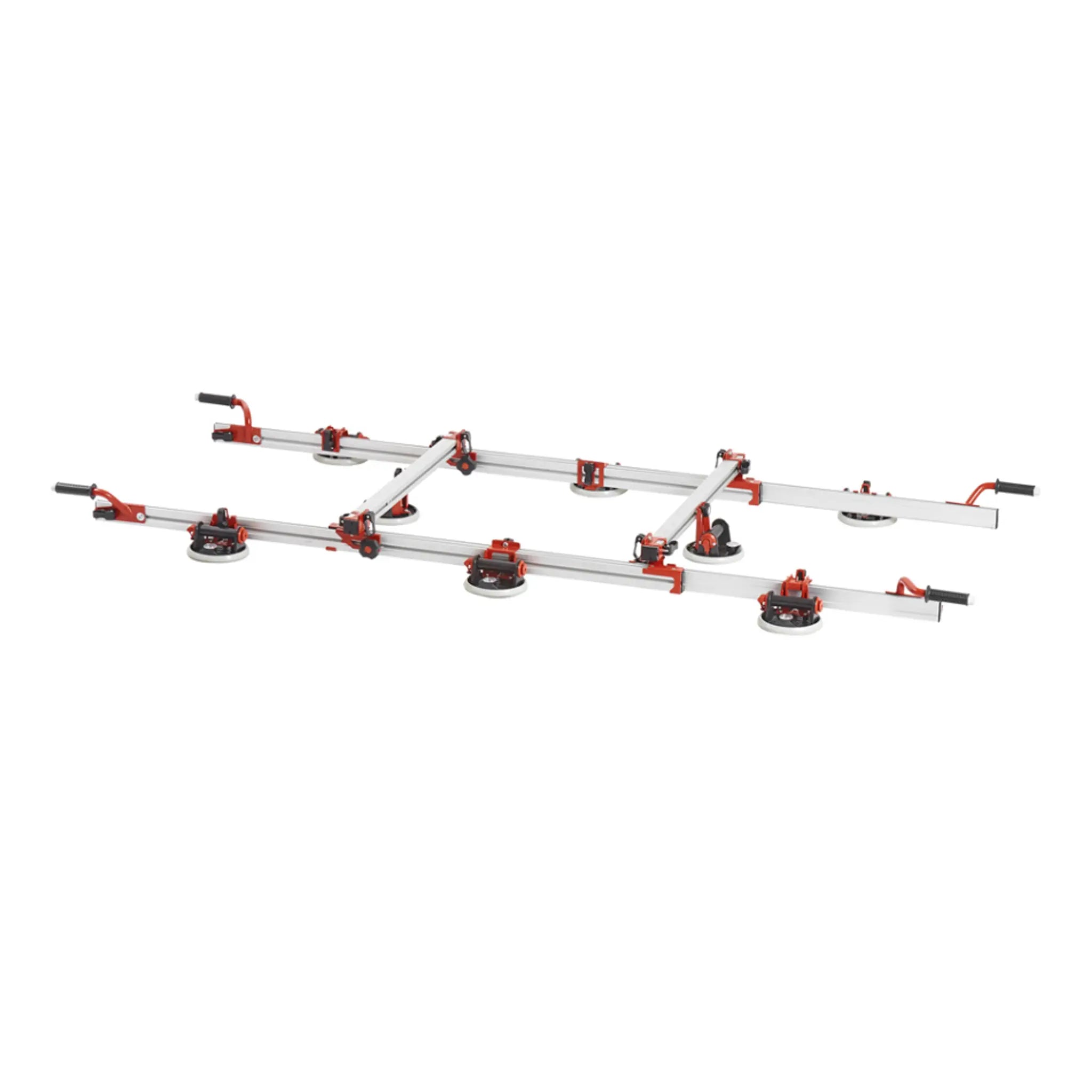

The Raimondi® EASY-MOVE MkIV is a fourth-generation handling system designed for lifting, carrying, positioning, and installing large format tile and slabs. The redesigned aluminum frame reduces weight by more than 25% compared with the previous generation while providing smooth adjustment and flexible positioning for demanding slab layouts.
RV175 Vacuum Suction Cups with Vacuum Gauges
Eight RV175 vacuum suction cups provide secure gripping performance, including on textured tile surfaces. Each cup features a protected vacuum gauge that continuously indicates the vacuum level, while the pump system allows vacuum to be restored or increased without removing the suction cup from the slab. The cups use stain-free rubber and die-cast aluminum bodies, with the rubber and vacuum gauges designed for easy replacement when needed.
Adjustable Crossbars for Complex Slab Layouts
Two telescopic crossbars adjust from 35-1/2" to 63" and can be angled relative to the main profiles to accommodate different slab widths and layouts. Each crossbar carries an RV175 suction cup that slides along its full length and can be positioned inside or outside the main profiles. Anti-friction pads provide fluid movement between the main aluminum profiles for fast frame adjustment.
Flexible Suction Cup Positioning for Narrow and Textured Slabs
All suction cups, including the central cups, can slide along the profiles to match the slab configuration. The cups tilt approximately ±5° to accommodate slab flex and maintain contact, particularly on textured surfaces. Their in-line arrangement also allows the EASY-MOVE MkIV to handle slabs as narrow as 7-1/2".
Ergonomic Handling for Floor and Wall Installation
Four sliding handles with soft rubber grips and non-slip, stain-proof grommets provide multiple handling positions for transporting and positioning slabs, including during wall installations. The system accommodates slabs from 40" to 126" long and includes protective plastic covers for the suction cups along with a use and maintenance manual.
Product questions
How many suction cups are included with the Raimondi EASY-MOVE MkIV?
This model includes eight RV175 vacuum suction cups with vacuum gauges. Six cups are positioned on the main frame and two are mounted on the telescopic crossbars.
Can the EASY-MOVE MkIV handle textured large format tile?
Yes. The RV175 vacuum suction cups are designed to provide effective grip on textured tile surfaces. The cups can also tilt approximately ±5° to accommodate slab flex and help maintain contact.
What do the vacuum gauges on the RV175 suction cups do?
Each gauge continuously indicates the degree of vacuum inside its suction cup. If additional vacuum is needed, the pump can be operated while the suction cup remains attached to the slab.
What size slabs can the EASY-MOVE MkIV handle?
The system accommodates slabs from 40" to 126" long. Its in-line suction cup configuration allows use on slabs as narrow as 7-1/2".
How far do the telescopic crossbars extend?
The two telescopic crossbars adjust from approximately 35-1/2" to 63". They can also be positioned at an angle relative to the main profiles to accommodate different slab layouts.
Can the suction cups be repositioned on the frame?
Yes. All suction cups, including the central and crossbar-mounted cups, can be repositioned along their respective profiles to adapt the system to the slab being handled.
Is the EASY-MOVE MkIV suitable for wall tile installation?
Yes. Four sliding handles with soft rubber grips provide adjustable handling positions intended to improve ergonomics during both floor and wall installations.
What is included with Raimondi part number 432EM04TA?
Part number 432EM04TA includes the EASY-MOVE MkIV handling frame with two telescopic crossbars, eight RV175 vacuum suction cups with gauges and stain-free rubber, plastic suction cup protectors, and a use and maintenance manual.
