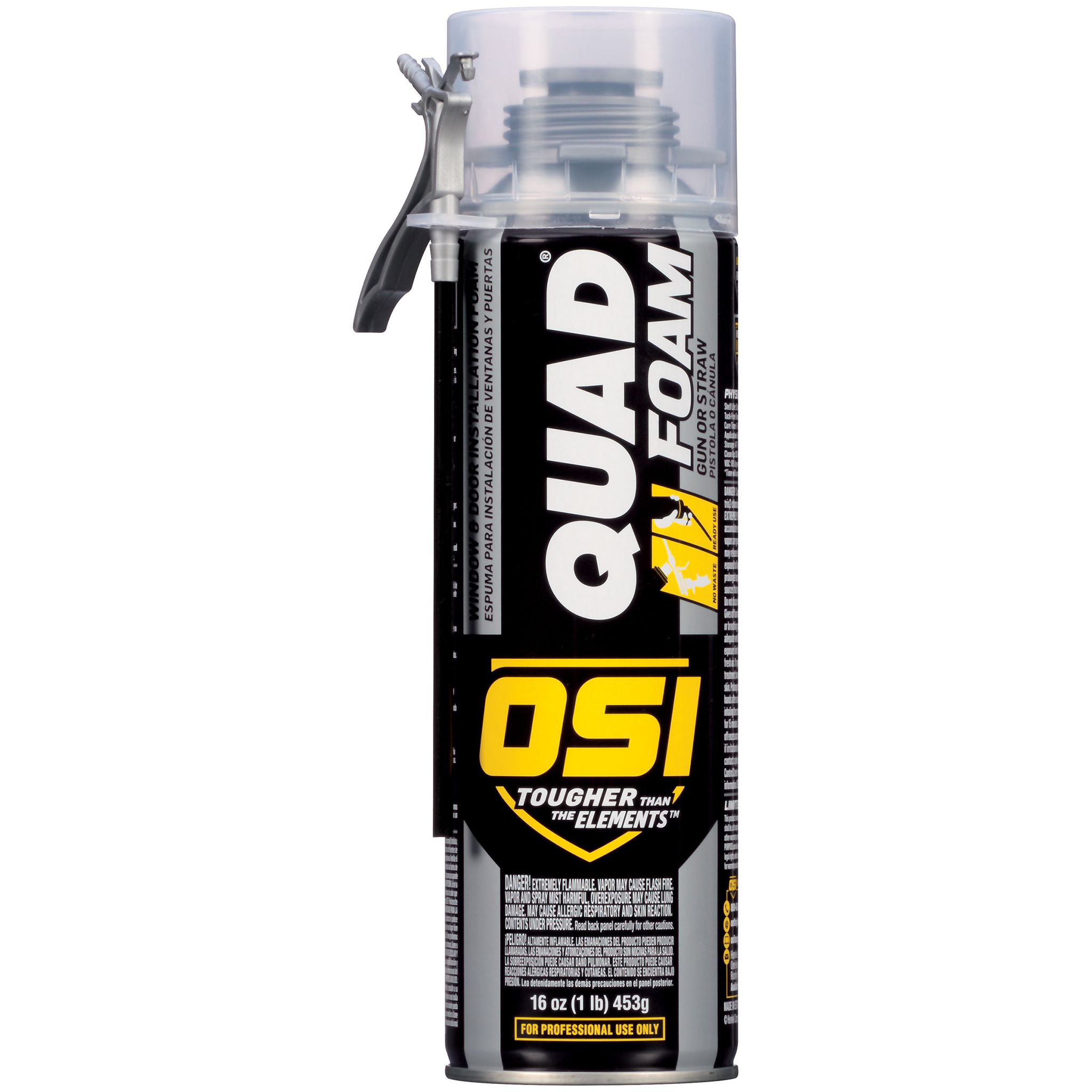

OSI QUAD Foam Window & Door Insulating Foam
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Size
16 oz.
Application Type
Straw
Coverage
386 ft. at 1/2" × 1/2" Joint
Expansion
Minimal
Insulation Value
R4.1-R5 per Inch
Minimum Application Temperature
14°F
Trim Time
Less Than 1 Hour
Structure
Flexible Closed Cell
Why Choose This Product
Key Benefits
Low-Pressure Expansion
Helps prevent warping or deformation of windows and doors
Closed-Cell Structure
Helps stop air and moisture infiltration
Flexible Cured Foam
Resists cracking and drying out
Cold-Weather Application
Can be applied at temperatures down to 14°F
Fast Trimming
Can be cut or trimmed in less than one hour
Broad Material Compatibility
Bonds to common window, door and building materials
Product Information
Product Details
Specifications
Brand
OSI®
Part Number
2629456
UPC
028756959694
Product Type
Window & Door Insulating Foam
Size
16 oz.
Application Type
Straw Can
Foam Type
Single-Component Polyurethane
Expansion
Minimal
Foam Pressure
Low
Structure
Closed Cell
Insulation Value
R4.1-R5 per Inch
Coverage
386 ft. at 1/2" × 1/2" Joint
Minimum Application Temperature
14°F
Trim Time
Less Than 1 Hour
Compatible Materials
Vinyl, Aluminum, Fiberglass, Wood, OSB, PVC, Concrete, Drywall & Metal
Flashing Compatibility
Asphalt & Butyl Flexible Flashing
Straw
Reusable & Cleanable with Foam Cleaner
VOC Compliance
Federal & State VOC Regulations
About This Product
Low-Expansion Foam for Windows and Doors
OSI® QUAD® Foam is a single-component, low-pressure polyurethane foam designed to insulate and seal around window and door frames. Its minimal expansion helps prevent warping or deformation while the cured foam remains flexible without cracking or drying out.
Air Sealing and Insulation
The closed-cell foam helps stop air and moisture infiltration and provides an insulation value of R4.1 to R5 per inch. It can also be used at jambs, mud sills, header joints, corner joints, top plate penetrations, and electrical and plumbing penetrations where air leakage or heat loss may occur.
Building Material and Flashing Compatibility
QUAD Foam bonds to common building materials including vinyl, aluminum, fiberglass, wood, OSB, PVC, concrete, drywall, and metal. It is also compatible with asphalt and butyl flexible flashing for use as part of window and door installation systems.
Cold-Weather Application and Fast Trimming
The foam can be applied at temperatures down to 14°F and can be cut or trimmed in less than one hour. For cold-weather applications, the can should be stored above 41°F for at least 12 hours before use.
Straw and Gun Application Options
The 16 oz. straw can is suited for smaller jobs and includes a reusable straw that can be cleaned with foam cleaner. The 21 oz. gun cartridge is intended for larger jobs and frequent use, providing controlled bead adjustment and the ability to reseal the can for later use when used with a compatible foam gun.
Common Questions
Frequently Asked Questions
Will OSI QUAD Foam warp windows or doors?
No. QUAD Foam uses low-pressure, minimal expansion designed to avoid warping or deforming window and door frames.
What is the insulation value of OSI QUAD Foam?
The cured foam provides an insulation value of approximately R4.1 to R5 per inch.
How cold can it be when applying QUAD Foam?
QUAD Foam can be applied at temperatures down to 14°F. For cold-weather applications, the product should be stored above 41°F for at least 12 hours before application.
How soon can OSI QUAD Foam be trimmed?
The foam can be cut or trimmed in less than one hour after application.
What materials does QUAD Foam bond to?
QUAD Foam bonds to common building materials including vinyl, aluminum, fiberglass, wood, OSB, PVC, concrete, drywall, and metal. It is also compatible with asphalt and butyl flexible flashing.
What is the difference between the straw and gun versions?
The 16 oz. straw can is suited for smaller jobs and provides up to 386 linear feet of coverage at a 1/2" × 1/2" joint. The 21 oz. gun cartridge is intended for larger applications, provides up to 611 linear feet at the same joint size, and allows controlled bead adjustment when used with a foam gun.
Can OSI QUAD Foam be used as a firestop?
No. QUAD Foam is not a firestopping material and should not be used where a fireproof or firestopping material is required.
Can cured QUAD Foam be left exposed outdoors?
No. Urethane foam is affected by UV exposure. Exposed foam must be protected with an appropriate covering or coating.
