Montolit Masterpiuma P5 Manual Tile Cutters
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Straight Cut Capacity
24.5"
Diagonal Cut Capacity
17" Ă— 17"
Maximum Tile Thickness
3/4"
Cutter Type
Professional Manual Tile Cutter
Compatible Materials
Porcelain, Ceramic & Vitrified Tile
Angle Cutting
Up to 45° in Either Direction
Frame Design
Reinforced Modular Alloy Frame
Weight
24 lbs
Why Choose This Product
Key Benefits
Reinforced Cutting Frame
Strategic reinforcement improves rigidity and scoring accuracy
Force Indicator Handle
Helps adjust scoring pressure for different materials and thicknesses
Two-Direction Angle Cutting
Enhanced square supports precise cuts up to 45° in either direction
Large-Format Support
Extended side supports stabilize tile during straight and diagonal cuts
Protected Transport
Folding goniometer stores within the frame to preserve alignment
Broad Material Compatibility
Designed for porcelain, ceramic, vitrified, and full-body tile
Italian Manufacturing
Built in Italy for professional tile installation applications
Recyclable Construction
Components are designed to be 100% recyclable
Product Information
Product Details
Specifications
Brand
Montolit®
Part Number
63P5XL
UPC
8023743028621
Product Type
Professional Manual Tile Cutter
Product Line
Masterpiuma P5
Straight Cut Capacity
24.5"
Diagonal Cut Capacity
17" Ă— 17"
Maximum Tile Thickness
3/4"
Weight
24 lbs
Cutting Method
Manual Score & Snap
Compatible Materials
Porcelain, Ceramic, Vitrified & Full-Body Tile
Angle Cutting Capacity
Up to 45° Left or Right
Angle Guide
Folding Multifunctional Square
Pressure Control
Integrated Scoring Force Indicator
Frame Material
Lightweight Reinforced Alloy
Frame Design
Structured Modular Frame
Large-Tile Support
Extended Side Supports
Recommended Use
Professional Tile Installation
Manufacturing Origin
Made in Italy
Recyclable Components
100%
About This Product
Professional Manual Tile Cutting for Ceramic, Porcelain, and Vitrified Materials
The Montolit® Masterpiuma P5 Manual Tile Cutter is a professional cutting system developed for accurate scoring and breaking of modern ceramic materials. Its reinforced modular frame supports precise work on porcelain, full-body porcelain, vitrified tile, and other demanding tile formats while remaining practical for transportation and jobsite use.
Reinforced Frame for Strength and Cutting Accuracy
The lightweight alloy frame includes strategic reinforcement at high-stress points to improve rigidity and maintain cutting accuracy. This reinforced construction is especially useful when working with thick, dense, or large-format porcelain that requires stable support throughout the scoring and breaking process.
Adjustable Scoring Pressure with Force Indicator
The redesigned handle incorporates a force indicator that helps the operator adjust scoring pressure for different tile materials and thicknesses. This added feedback supports more consistent scoring while reducing guesswork when moving between delicate surfaces and dense porcelain tile.
Precise Straight, Diagonal, and Angle Cuts
An enhanced multifunctional square supports accurate angle cuts up to 45° in either direction. The symmetrical goniometer folds within the cutter frame for protected transport while preserving its alignment and cutting precision between jobs.

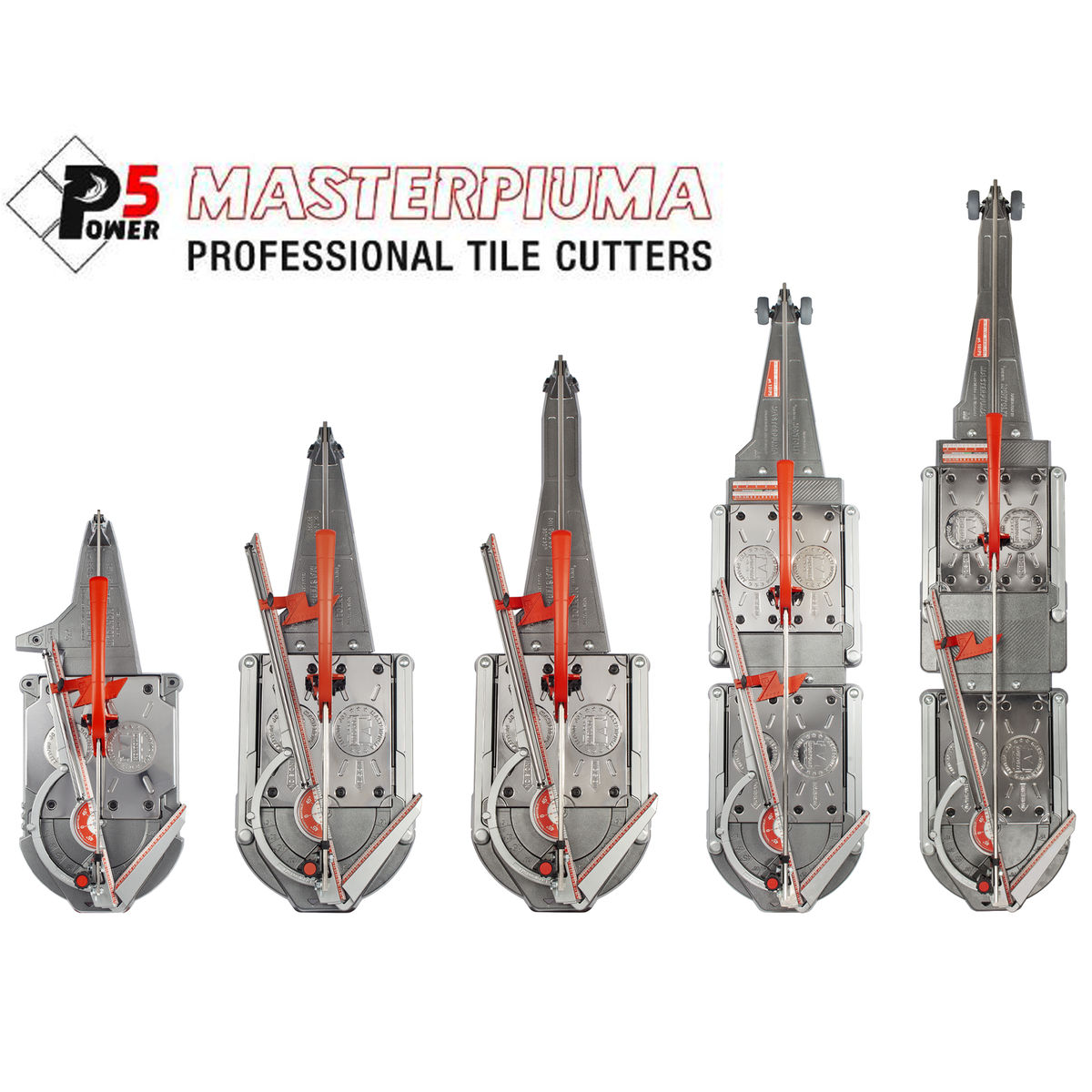

Large-Format Tile Support Across Five Cutter Sizes

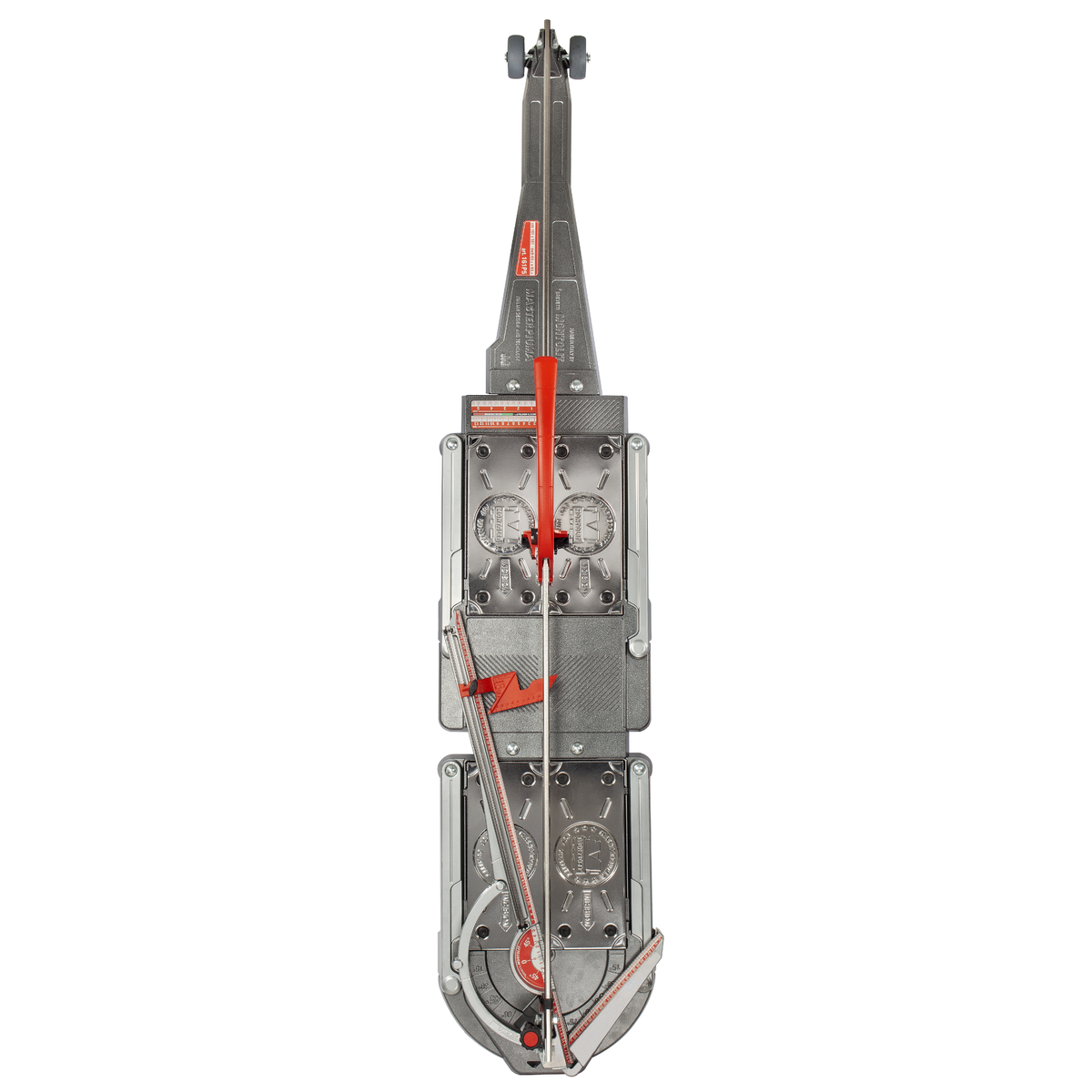

Extended side supports help stabilize large tile during straight and diagonal cuts. The Masterpiuma P5 line ranges from the compact 63P5XL to the 161P5, providing straight cutting capacities from 24.5" to 63.5" for professional installation work across common and oversized tile formats.
Made in Italy with Recyclable Components
Each Masterpiuma P5 cutter is manufactured in Italy and constructed from 100% recyclable components. The product line combines professional cutting performance, durable construction, and a design intended to support long-term use in demanding tile installation environments.
Common Questions
Frequently Asked Questions
What materials can the Montolit Masterpiuma P5 cut?
The Masterpiuma P5 is designed for porcelain, ceramic, vitrified, full-body porcelain, and other dense tile materials commonly used in professional tile installation.
What is the maximum tile thickness the Masterpiuma P5 can cut?
All Masterpiuma P5 models are designed to score and snap tile up to 3/4" (20 mm) thick.
Can the Masterpiuma P5 make angle cuts?
Yes. The integrated multifunctional square supports accurate angle cuts up to 45° in either direction.
What is the purpose of the force indicator on the handle?
The integrated force indicator helps the operator apply the appropriate scoring pressure for different tile materials and thicknesses, improving scoring consistency.
What are the side supports used for?
Extended side supports stabilize large-format tile during straight and diagonal cuts, helping improve accuracy and reduce tile movement.
What is the advantage of the reinforced modular frame?
The reinforced lightweight alloy frame increases rigidity at high-stress points, providing greater cutting accuracy and durability when working with dense porcelain and large-format tile.
Where are Montolit Masterpiuma P5 tile cutters manufactured?
Every Masterpiuma P5 cutter is manufactured in Italy and built using 100% recyclable components.
How do I choose the correct Masterpiuma P5 model?
Select the model based on the longest straight and diagonal cutting capacity required for the tile sizes you install. Larger models are intended for oversized and large-format porcelain tile.
