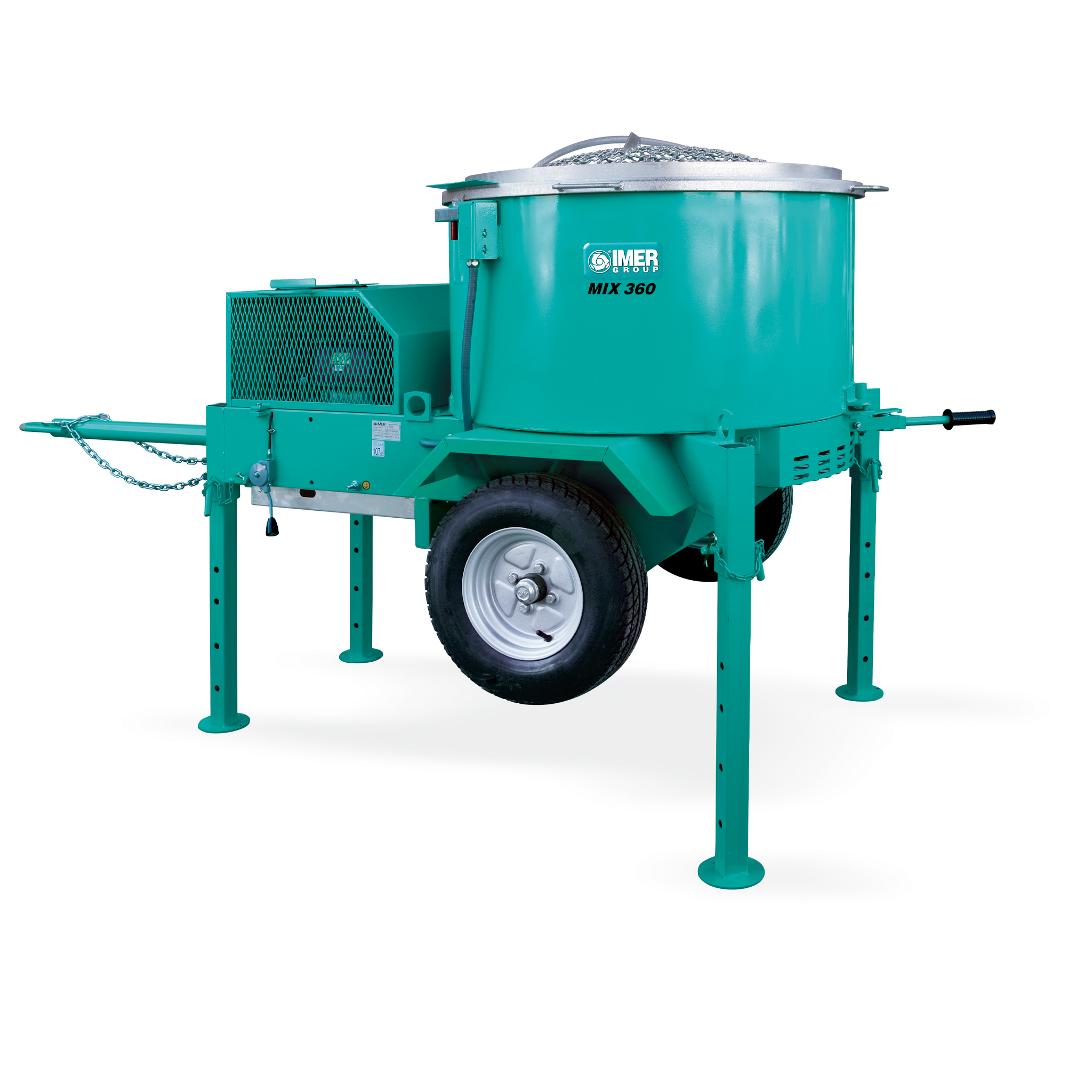

IMER Mix 360 Towable Vertical Shaft Mixer
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Power Source
240V 5 HP Single-Phase Electric Motor
Drum Capacity
12 cu ft
Batch Output
9 cu ft
Maximum Aggregate
3/8"
Discharge Height
Adjustable 18"ā30"
Mixer Type
Vertical Shaft Paddle Mixer
Chassis
Towable with 18" Wheels
Safety Feature
Auto-Shutdown Safety Grate
Why Choose This Product
Key Benefits
Vertical Shaft Mixing
Produces consistent batches of low-slump materials
Large Batch Capacity
12 cu ft drum produces up to 9 cu ft per batch
Towable Chassis
Easily transported between jobsites
Adjustable Discharge
Height adjusts from 18" to 30" for material handling
Dual Power Options
Available with Honda gas or 240V electric power
Integrated Safety
Auto-shutdown safety grate protects operators
Product Information
Product Details
Specifications
Brand
IMERĀ®
Part Number
1194662
Product Type
Towable Vertical Shaft Mixer
Power Source
240V, 5 HP, Single-Phase Electric Motor
Mixer Type
Vertical Shaft Paddle Mixer
Drum Capacity
12 cu ft
Batch Output
9 cu ft
Maximum Aggregate Size
3/8 in
Discharge Height
Adjustable 18ā30 in
Wheel Size
18 in
Chassis
Towable with Torsion Bar Suspension
Safety Feature
Auto-Shutdown Safety Grate
Applications
Dry Pack Mortar, Refractory Cement, UHPC & Low-Slump Materials
Width
44 in
Length
59 in
Height
58 in
Weight
787ā794 lbs
About This Product
Vertical Shaft Mixing for Low-Slump Materials
The IMERĀ® Mix 360 Towable Mixer is engineered for mixing dry pack mortar, refractory cement, UHPC, and other low-slump materials. Its vertical shaft paddle mixing system moves through the material rather than relying on the tumbling action of conventional mortar mixers, producing more consistent batches for demanding applications.
High-Capacity Jobsite and Plant Mixing
With a 12 cubic foot drum and up to 9 cubic feet of batch output, the Mix 360 is built for high-production mixing. The adjustable discharge height from 18" to 30" simplifies loading wheelbarrows, buckets, and material handling equipment while maintaining efficient workflow.
Gas and Electric Power Options
Available with either an 11 HP Honda GXV390 gas engine or a 240V, 5 HP single-phase electric motor, the Mix 360 can be configured for a variety of jobsites and production environments. Both models utilize the same heavy-duty vertical shaft mixing system for reliable performance.
Towable Design with Built-In Safety Features
A towable chassis with torsion bar suspension and 18" wheels allows the mixer to be transported easily between jobsites. An auto-shutdown safety grate helps protect operators during mixing, while the heavy-duty construction is designed for continuous professional use.
Common Questions
Frequently Asked Questions
What materials is the IMER Mix 360 designed to mix?
The Mix 360 is designed for dry pack mortar, refractory cement, UHPC, and other low-slump materials that benefit from vertical shaft paddle mixing.
How does a vertical shaft mixer differ from a conventional mortar mixer?
The Mix 360 uses rotating paddles that move through the material instead of tumbling it, producing more consistent mixing for low-slump products.
What is the drum capacity and batch output?
The mixer features a 12 cubic foot drum with a maximum batch output of approximately 9 cubic feet.
What power options are available?
The Mix 360 is available with either an 11 HP Honda GXV390 gas engine or a 240V, 5 HP single-phase electric motor.
Is the discharge height adjustable?
Yes. The discharge height can be adjusted from 18 inches to 30 inches to accommodate different material handling requirements.
Can the Mix 360 be transported between jobsites?
Yes. The mixer is built on a towable chassis with torsion bar suspension and 18-inch wheels for easy transportation.
What is the maximum aggregate size?
The Mix 360 is designed for materials containing aggregate up to 3/8 inch.
What safety features are included?
An auto-shutdown safety grate helps protect operators by stopping mixer operation when the grate is opened.
