HYDRO-BLOK LOW PROFILE Drain Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Compatibility
HYDRO-BLOK Low Profile Shower Pans
Included Components
Drain Hub, Rubber Ball Seal & Pipe Puller
Drain Adjustment
Up to 1/4" Lateral Movement
Pipe Angle Tolerance
Up to 5Ā°
Installation Method
Modified Thinset & HYDRO-BLOK Joint Sealant
Subfloor Compatibility
Wood & Concrete
Application
Low-Profile Shower Drain Installation
Optional Fasteners
#8 or #9 Backer Board/Wood Screws (1-1/4" Minimum)
Why Choose This Product
Key Benefits
Complete Installation Kit
Includes drain hub, rubber ball seal and pipe puller
Drain Alignment
Allows up to 1/4" of lateral adjustment
Flexible Connection
Accommodates drain pipe angles up to 5Ā°
Designed for HYDRO-BLOK
Engineered for Low Profile shower pans
Multiple Subfloors
Compatible with wood and concrete installations
Simplified Installation
Uses modified thinset and HYDRO-BLOK Joint Sealant
Product Information
Product Details
Specifications
Brand
HYDRO-BLOKĀ®
Part Number
HBLPDK
UPC
658906151557
Product Type
Low Profile Drain Kit
Compatibility
HYDRO-BLOK Low Profile Shower Pans
Included Components
Drain Hub, Rubber Ball Seal, Pipe Puller
Drain Hub Adjustment
Up to 1/4" Lateral Movement
Pipe Angle Tolerance
Up to 5Ā°
Installation Method
Modified Thinset & HYDRO-BLOK Joint Sealant
Subfloor Compatibility
Wood & Concrete
Optional Fasteners
#8 or #9 Backer Board/Wood Screws, Minimum 1-1/4"
Application
Low-Profile Shower Drain Assembly
About This Product
Drain Assembly for HYDRO-BLOK Low Profile Shower Pans

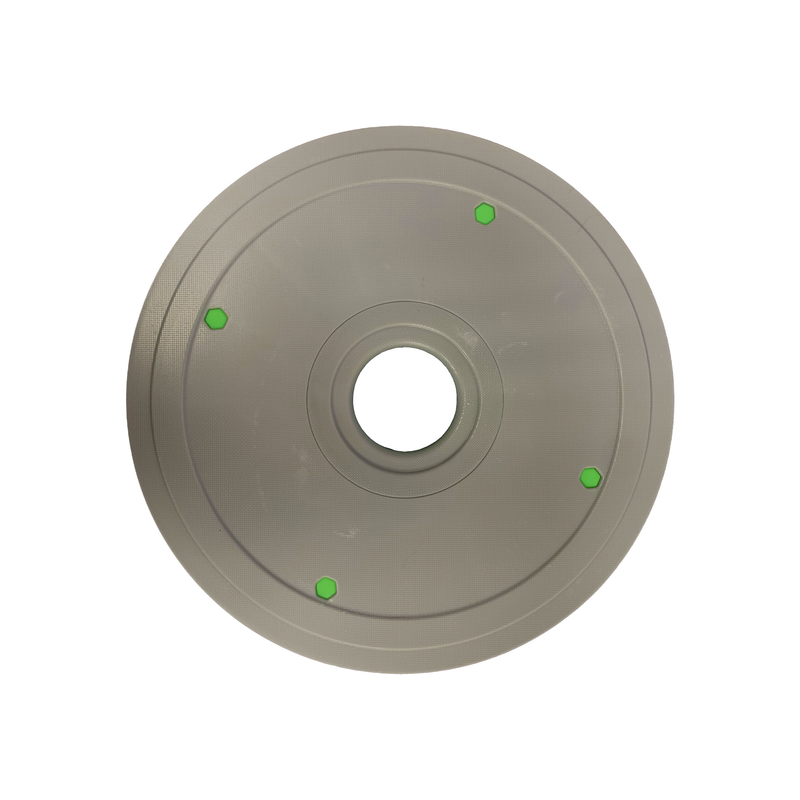

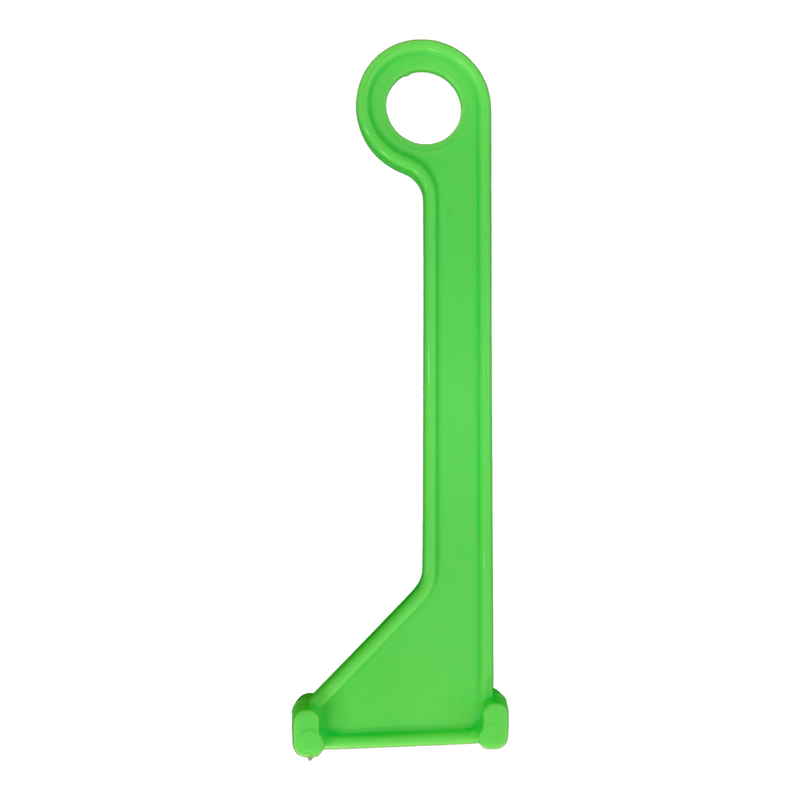

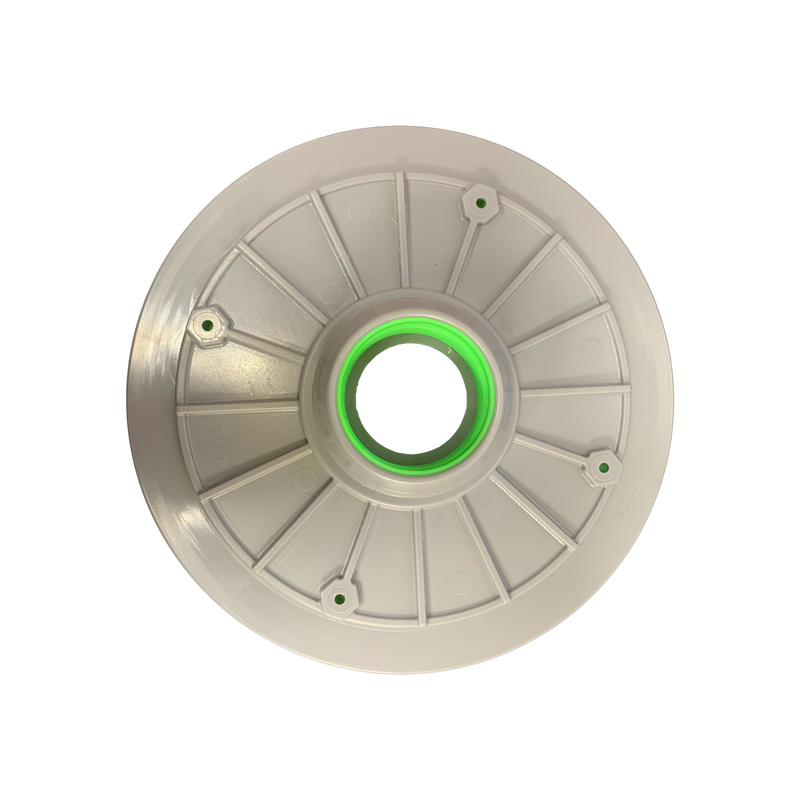

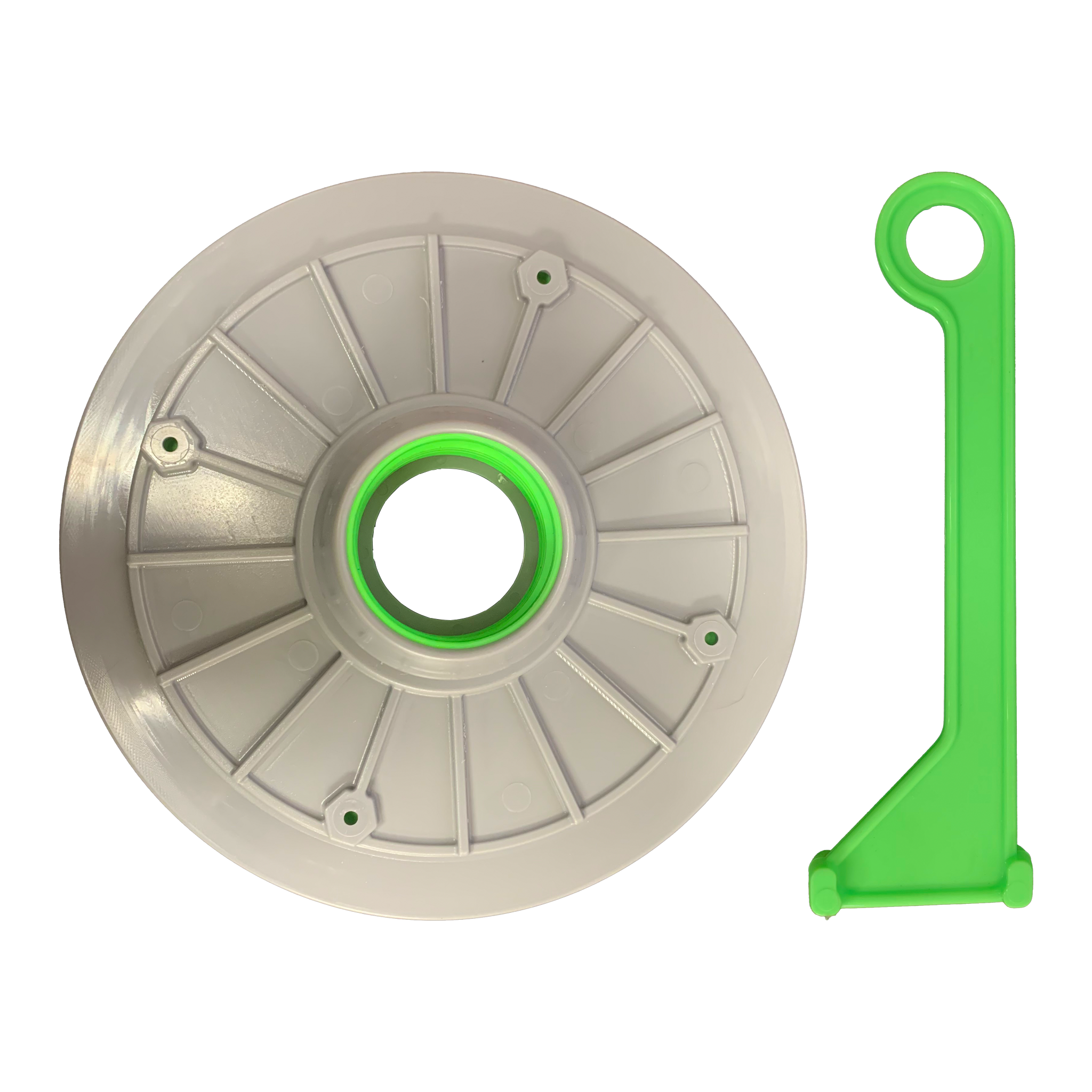

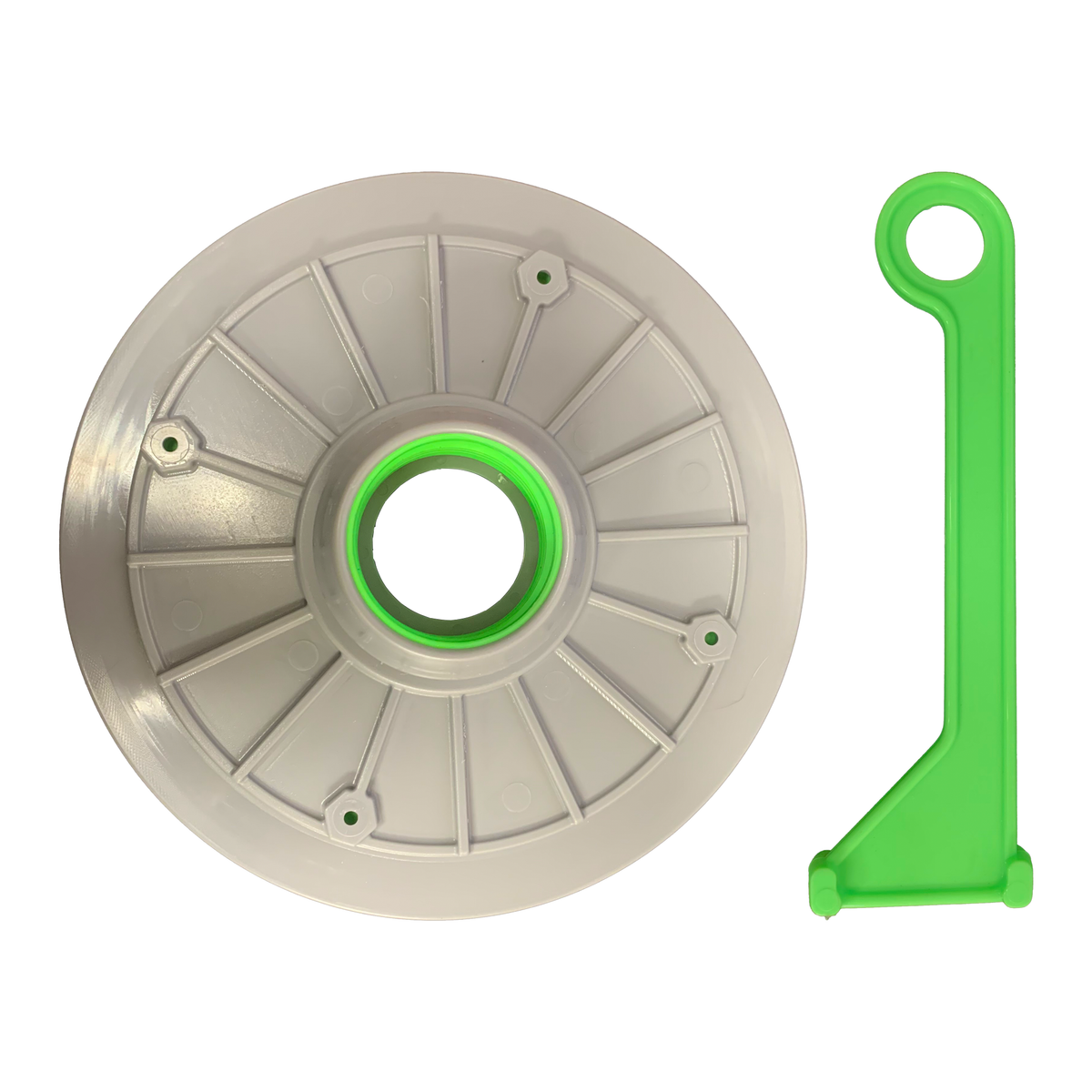

The HYDRO-BLOKĀ® LOW PROFILE Drain Kit is designed specifically for HYDRO-BLOK Low Profile shower pans to provide a secure connection between the shower pan and drain plumbing. The kit includes a drain hub, rubber ball seal, and pipe puller for a complete drain installation.
Built-In Alignment During Installation
The drain hub allows up to 1/4" of lateral adjustment to simplify drain alignment during installation. The rubber ball seal accommodates drain pipe angles up to 5Ā°, helping create a reliable connection even when minor pipe misalignment is present.
Compatible with Wood and Concrete Subfloors
The drain kit installs using modified thinset mortar and HYDRO-BLOK Joint Sealant and is suitable for installations over both wood and concrete subfloors. Optional #8 or #9 backer board or wood screws with a minimum length of 1-1/4" may be used where required during installation.
Common Questions
Frequently Asked Questions
What shower pans is the HYDRO-BLOK LOW PROFILE Drain Kit designed for?
It is designed specifically for HYDRO-BLOK LOW PROFILE shower pans.
What components are included in the drain kit?
The kit includes a drain hub, rubber ball seal, and pipe puller.
How much drain adjustment does the kit allow?
The drain hub provides up to 1/4" of lateral movement to help align the drain during installation.
Can the drain kit accommodate misaligned drain pipes?
Yes. The rubber ball seal accommodates drain pipe angles up to 5Ā°.
What type of subfloors can this drain kit be installed over?
The kit is compatible with both wood and concrete subfloors.
What installation materials are required?
The drain kit is installed using modified thinset mortar and HYDRO-BLOK Joint Sealant.
