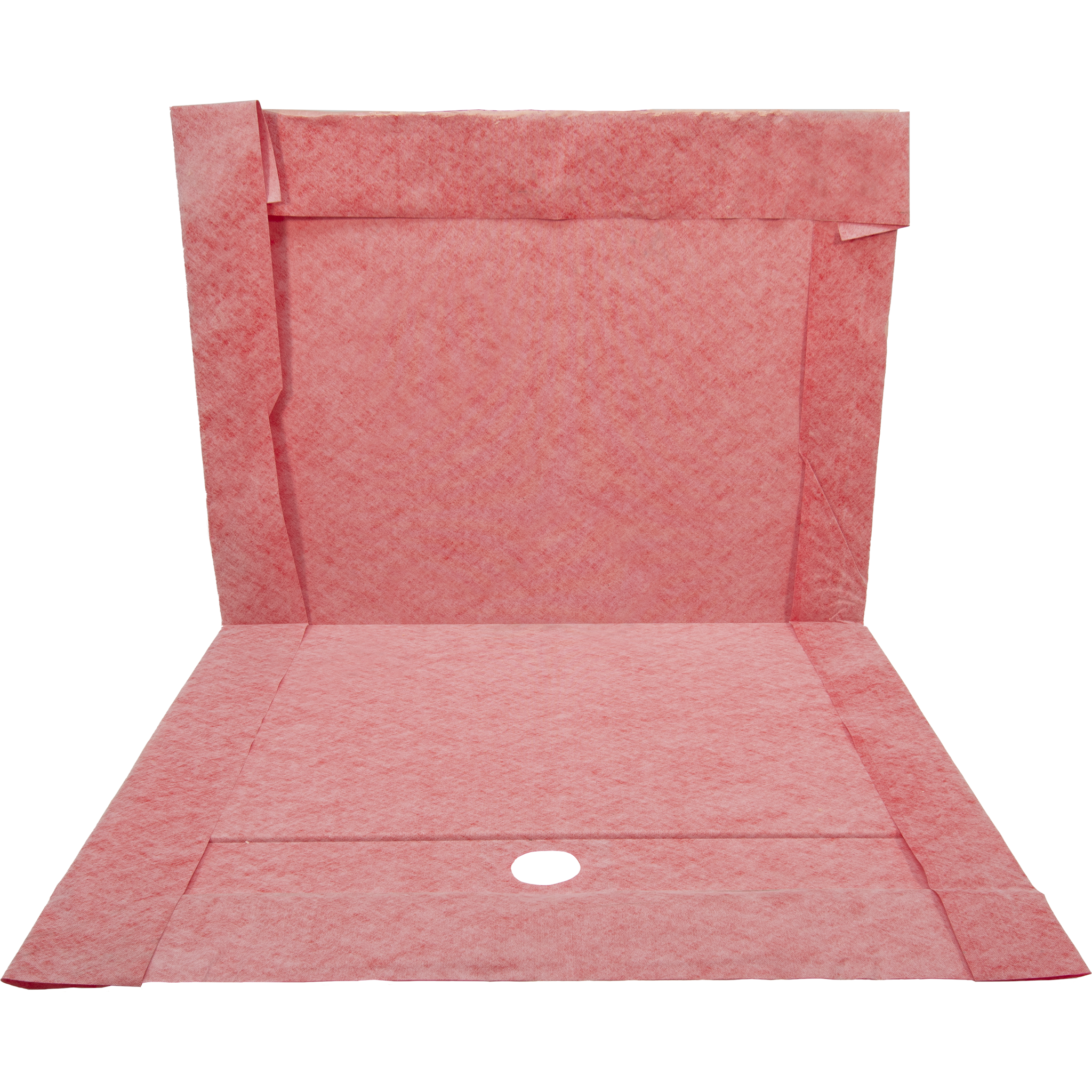

GURU W-S Heavy Duty Presloped Linear Drain Shower Tray
Fast Shipping
Easy Returns
Secure Checkout
Recommended Add-Ons
You May Also Need
GURU USA
GURU W-S Waterproof Sealant
MS Polymer Waterproof Joint Sealant for Tile Installations
$16.83
At a Glance
Quick Decision Guide
Tray Size
37-1/2" Ă— 60-1/8"
Height Range
3/8" to 1-3/4"
Drain Placement
Off-Center Linear
Slope
Factory-Formed 2%
Waterproofing
Bonded Waterproof Membrane
Tile Ready
Yes
Trim-to-Fit
Yes
Application
Residential & Commercial
Why Choose This Product
Key Benefits
Integrated Drainage
Factory-formed 2% slope directs water toward the drain
Built-In Waterproofing
Bonded membrane provides continuous moisture protection
Tile Ready
Supports ceramic, porcelain, stone, and mosaic tile
Heavy-Duty Design
Reinforced construction for residential and commercial applications
Custom Installation
Trim-to-fit design accommodates custom shower layouts
Low-Profile Base
Simplifies modern shower construction
Product Information
Product Details
Specifications
Brand
GURU®
Part Number
IMU9200
UPC
8436540763624
Product Type
Presloped Linear Drain Shower Tray
Tray Size
37-1/2" Ă— 60-1/8"
Height Range
3/8" to 1-3/4"
Drain Placement
Off-Center Linear
Slope
Factory-Formed 2%
Waterproofing
Factory-Bonded Waterproof Membrane with 4" Overlap
Construction
Heavy-Duty Reinforced Core
Tile Compatibility
Ceramic, Porcelain, Natural Stone & Mosaic
Tile Ready
Yes
Trim-to-Fit
Yes
Profile
Low Profile
Application
Residential & Commercial Showers
Installation Type
Linear Drain Shower System
About This Product
Tile-Ready Shower Base for Linear Drain Systems
The GURU® W-S Heavy Duty Presloped Linear Drain Shower Tray is a tile-ready shower base engineered for linear drain installations. Each tray features a factory-formed 2% slope and a bonded waterproof membrane to provide a sloped, waterproof foundation beneath tile while helping direct water toward the drain.
Heavy-Duty Construction for Tile Installations
The reinforced tray supports ceramic, porcelain, natural stone, and mosaic tile installations for residential and commercial showers. Its low-profile design simplifies modern curbless and traditional shower builds while providing a stable substrate for tile.
Trim-to-Fit Installation for Custom Layouts
Each shower tray can be trimmed on-site to accommodate custom shower dimensions while maintaining compatibility with off-center linear drain installations. Multiple tray sizes are available to suit a wide range of shower layouts.
Factory Waterproofing and Consistent Drainage
A factory-bonded waterproof membrane with a 4" overlap helps simplify waterproofing, while the integrated 2% slope promotes efficient water drainage without the need to create a mortar bed.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What type of drain is this shower tray designed for?
The GURU W-S Shower Tray is designed specifically for off-center linear drain installations.
Can the shower tray be cut to fit?
Yes. The tray can be trimmed on-site to accommodate custom shower dimensions and layouts.
What types of tile can be installed over the tray?
The tray supports ceramic, porcelain, natural stone, and mosaic tile installations.
Does the tray include waterproofing?
Yes. Each tray features a factory-bonded waterproof membrane with a 4-inch overlap to simplify waterproofing.
What slope does the shower tray use?
The tray features a factory-formed 2% slope that directs water toward the linear drain.
Can this shower tray be used in commercial installations?
Yes. The reinforced construction is suitable for both residential and commercial shower installations.
