Blanke AQUA SHIELD Waterproofing and Vapor Barrier Membrane
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Roll Size
39" x 16'5"
Coverage
54 Sq. Ft.
Membrane Type
Waterproofing & Vapor Barrier
Installation
Thinset Mortar
Tile Installation
Immediately After Membrane Installation
Seam Overlap
Minimum 2"
Applications
Interior & Exterior
Steam Room Use
Yes
Why Choose This Product
Key Benefits
Waterproof and Vapor Control
Protects tile and stone assemblies in showers, bathrooms, steam rooms, and saunas.
Immediate Tile Installation
Allows tile installation without waiting for the membrane to cure.
Consistent Thickness
Provides a uniform waterproofing layer across the covered surface.
Crack Isolation
Adds separation between the substrate and finished tile covering.
Interior and Exterior Use
Supports approved wet areas, decks, patios, balconies, and terraces.
Material Resistance
Resists microorganisms, deterioration, rot, and multiple chemical solutions.
Product Information
Product Details
Specifications
Brand
Blanke®
Part Number
537-900-10005
UPC
4016505064382
Product Type
Waterproofing & Vapor Barrier Membrane
Roll Size
39" x 16'5"
Coverage
54 Sq. Ft.
Material
Polyethylene Film with Fleece on Both Sides
PE Film Thickness
Approx. 0.008" (0.2 mm)
Color
Blue
Installation
Thinset Mortar
Recommended Trowel
1/4" x 3/16" V-Notch
Minimum Seam Overlap
2"
Suitable Substrates
Plywood, Drywall, Backer Board & Cement
Applications
Showers, Bathrooms, Steam Rooms, Saunas, Locker Rooms & Select Exterior Areas
Exterior Use
Yes, Not Over Occupied Space
Crack Isolation
Yes
Uncoupling Properties
Yes
Roll Weight
Approx. 3.1 lbs.
About This Product

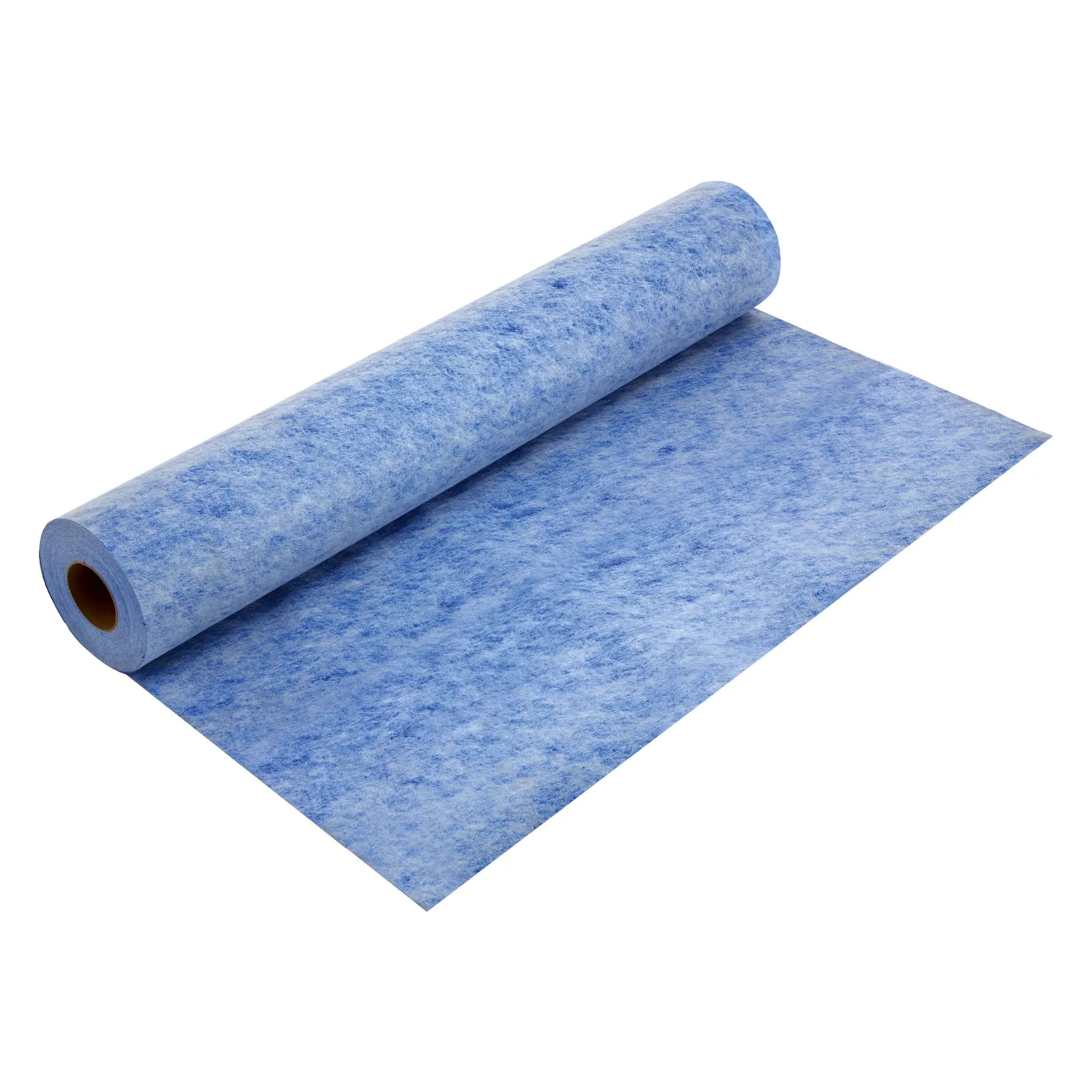

Blanke AQUA SHIELD Membrane for Wet Areas
Blanke AQUA SHIELD is a thin, flexible waterproofing membrane and vapor barrier for ceramic tile and stone. Its high tensile strength helps protect showers, bathrooms, steam rooms, saunas, locker rooms, and other continuous wet areas from moisture penetration.
Thinset-Bonded Sheet with No Waiting to Tile
Polyethylene film with fleece bonded to both sides anchors the membrane into thinset mortar. Unlike liquid-applied waterproofing, the sheet requires no membrane cure time before tile installation and maintains a consistent waterproofing thickness across the surface.
Crack Isolation for Interior and Exterior Applications
The membrane adds crack isolation and uncoupling beneath tiled surfaces and can be used on approved interior and exterior substrates. Exterior applications include decks, patios, balconies, and terraces that are not located over occupied space.
Common Questions
Frequently Asked Questions
Is AQUA SHIELD waterproof and suitable for steam rooms?
Yes. AQUA SHIELD waterproofs walls and floors beneath ceramic tile and stone while also forming a vapor barrier. It is designed for showers, bathrooms, steam rooms, saunas, locker rooms, and other continuous wet areas.
How soon can tile be installed over AQUA SHIELD?
Tile can be installed immediately after the membrane is properly bonded because the sheet does not require the cure time associated with liquid-applied waterproofing. Follow the thinset mortar manufacturer's requirements when setting the tile.
Which substrates are compatible with AQUA SHIELD?
The membrane can be bonded to clean, flat, dry, structurally sound substrates. Blanke lists plywood, drywall, backer board, and cement as suitable surfaces. Substrate preparation must follow current Blanke instructions and applicable installation standards.
How is AQUA SHIELD installed?
Apply thinset mortar with a 1/4" × 3/16" V-notched trowel, then press the membrane into full contact using the flat side. Remove trapped air and treat drains, pipes, corners, and transitions according to Blanke's instructions.
How are AQUA SHIELD seams waterproofed?
Adjoining sheets must overlap by at least 2". Blanke specifies AQUA SEAL adhesive at overlaps in constantly or extremely wet areas. AQUA SHIELD DB tape and self-adhesive AQUA SA tape provide additional approved seam-treatment options.
Can AQUA SHIELD be installed outdoors?
Yes. Approved exterior applications include decks, patios, balconies, and terraces that are not located over occupied space. The supporting surface must be clean, flat, dry, structurally sound, and suitable for the planned tile assembly.
Does AQUA SHIELD provide crack isolation?
Yes. Blanke identifies crack isolation and uncoupling as product properties. The membrane provides separation between the substrate and tile covering, but movement joints and other project conditions must still be addressed according to applicable installation standards.
What AQUA SHIELD roll sizes are available?
AQUA SHIELD is available in a 3.28' × 16.45' roll covering approximately 54 sq. ft. and a 3.28' × 98.4' roll covering approximately 323 sq. ft. Select the size based on the project area and planned seam layout.
