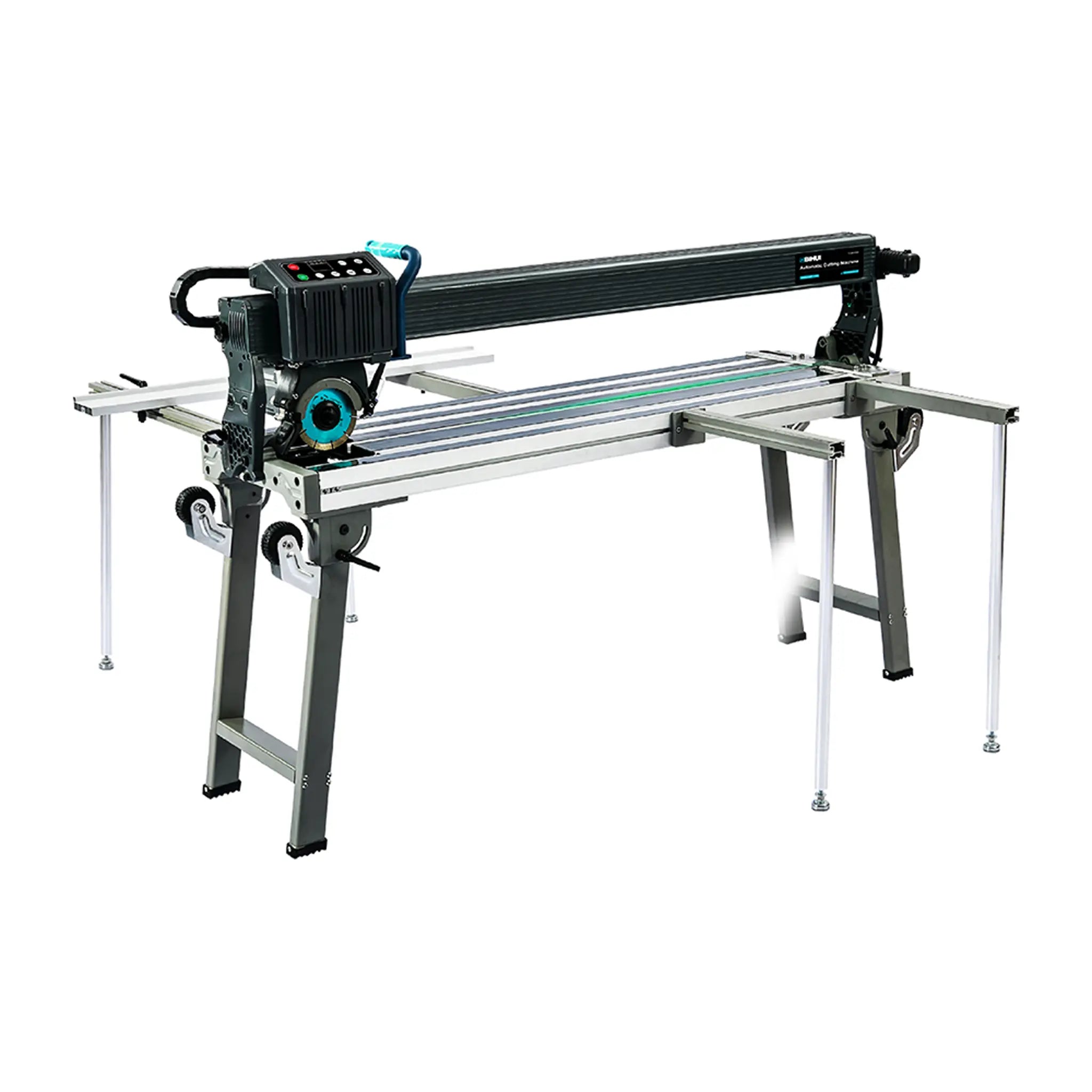

BIHUI Automatic Wet Bridge Tile Saw, 48"
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Cutting Length
48"
Diagonal Capacity
33.5" × 33.5"
Max Cutting Depth
1.1875"
Cutting Modes
Automatic & Manual
Miter Capability
Up to 45°
Output Power
3000W
No-Load Speed
12,000 RPM
Material Compatibility
Ceramic, Porcelain, Stoneware & Stone
Why Choose This Product
Key Benefits
Automatic and Manual Modes
Accommodate different materials, applications, and operator preferences.
48" Cutting Length
Accommodates large-format tile and extended straight cuts.
Versatile Cutting
Supports straight, diagonal, bullnose, and 45° miter applications.
Laser Alignment
Projects a visible reference line for positioning material.
3,000W Output
Powers the high-speed cutting system for demanding tile work.
Integrated Water Pump
Supplies water directly to the blade for cooling and dust control.
Flexible Blade Capacity
Accepts blades from 120 mm up to 135 mm in diameter.
Jobsite Mobility
Folding legs and built-in wheels simplify setup and transportation.
Product Information
Product Details
Specifications
Brand
BIHUI®
Part Number
TCSA1200A
UPC
6973702582775
Product Type
Automatic Electric Wet Bridge Tile Saw
Saw Type
Bridge Wet Tile Saw
Cutting Modes
Automatic / Manual
Cutting Method
Wet
Cutting Length
48"
Diagonal Cutting Capacity
33.5" × 33.5"
Maximum Cutting Depth
1.1875"
Miter Capability
Up to 45°
Voltage
110V / 60Hz
Output Power
3000W
No-Load Speed
12,000 RPM
Standard Blade Size
4.75" × 0.75" × 0.0625"
Maximum Blade Size
5.25" × 0.75" × 0.375"
Blade Arbor Adapter
7/8" Arbor Adapter Included
Laser Guide
Built-In
Water Pump
Built-In
Water Pressure Control
Yes
Legs
Folding
Transport Wheels
Built-In
Material Compatibility
Ceramic, Porcelain, Stoneware & Stone
About This Product
BIHUI Automatic Bridge Saw for Large-Format Tile
The BIHUI Automatic Wet Bridge Tile Saw combines automatic and manual cutting modes for different materials and workflows. Its 48" cutting length and 33.5" × 33.5" diagonal capacity accommodate large-format ceramic, porcelain, stoneware, and other compatible materials.
Straight, Diagonal, Bullnose and Miter Cutting
The adjustable cutting head supports straight cuts, diagonal cuts, bullnose edge work, and miter cuts up to 45°. Maximum cutting depth is 30 mm, approximately 1-3/16", while the integrated laser provides a visible alignment reference.
3,000W Integrated Wet-Cutting System
The U.S. TCSA1200A operates on 110V/60Hz power with 3,000W output and a 12,000 RPM no-load speed. A built-in water pump supplies the blade during cutting to cool the cutting area and help control dust.
Folding Setup with Flexible Blade Capacity
Folding legs and built-in wheels simplify jobsite setup, transportation, and storage. The saw uses a 120 mm blade and accepts blades up to 135 mm in diameter. The U.S. package includes a compatible BIHUI BT-DCBS120 diamond blade.
Common Questions
Frequently Asked Questions
What is the cutting capacity of the BIHUI Wet Bridge Tile Saw?
The TCSA1200A provides a maximum cutting length of 48". Its diagonal cutting capacity accommodates tile measuring up to 33.5" × 33.5".
What materials can the saw cut?
The saw is suitable for ceramic, porcelain, stoneware, and other compatible materials. Select a diamond blade appropriate for the specific material and cutting application.
What types of cuts can the BIHUI Bridge Tile Saw make?
The adjustable cutting head supports straight cuts, diagonal cuts, bullnose edge work, and miter cuts up to 45°. Maximum cutting depth is 30 mm, approximately 1-3/16".
Does the saw operate automatically?
Yes. The machine provides both automatic and manual cutting modes. This allows the operator to select the workflow that best matches the material, cut, and preferred level of control.
Does the saw include a laser and water pump?
Yes. The laser projects a visible reference line to assist with material alignment. The built-in water pump supplies water to the blade for cooling and dust control during wet cutting.
What blade sizes does the saw accept?
The saw uses a 120 mm blade, approximately 4-3/4", and accepts blades up to 135 mm, approximately 5-5/16". The U.S. package includes a BIHUI BT-DCBS120 diamond blade.
What are the electrical requirements?
The U.S. TCSA1200A operates on 110V/60Hz power. It provides 3,000W of output and has a listed no-load speed of 12,000 RPM.
How is the saw transported and stored?
The saw includes folding legs and built-in transport wheels. These features simplify jobsite movement, setup, and storage without requiring a separate saw stand.
