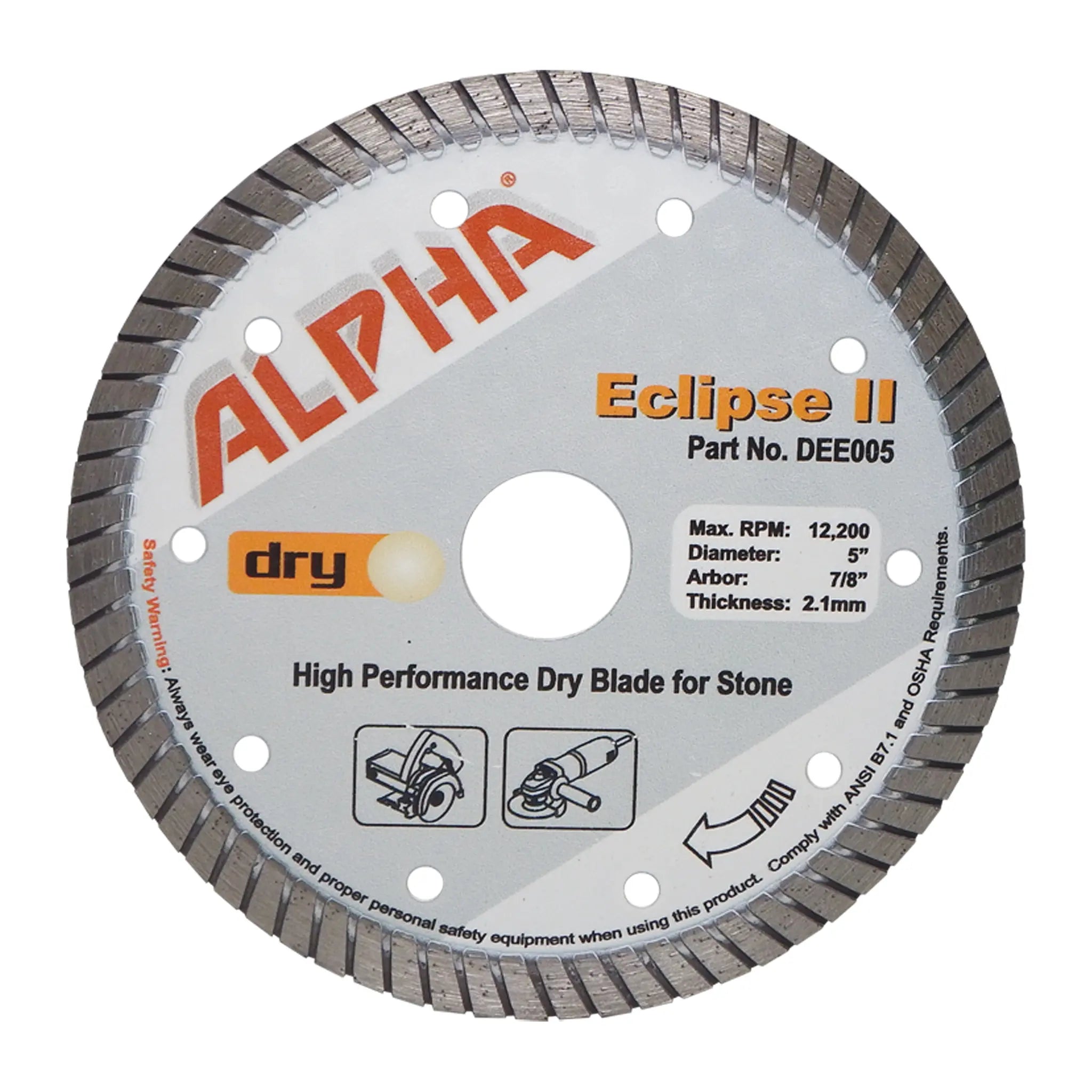

Alpha Eclipse II Turbo Diamond Blades for Stone & Concrete
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Blade Diameter
5"
Blade Thickness
2.1mm
Diamond Layer
8mm
Maximum RPM
12,200
Arbor
7/8"
Blade Type
General Purpose Turbo
Recommended Material
Hard Concrete
Compatible Equipment
Stone Cutter & Angle Grinder
Why Choose This Product
Key Benefits
Clean Cutting
Turbo rim supports accurate cuts with consistent edge quality
Long Blade Life
8mm tall diamond layer provides extended cutting performance
Multi-Material Use
Cuts stone tile, concrete, brick, block, slate and natural stone
Dry-Cutting Design
High-performance blade construction supports portable dry cutting
Equipment Compatibility
Configurations available for angle grinders, stone cutters and worm drive saws
Multiple Sizes
Available in six diameters from 4" through 8"
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
DEE005
UPC
749173460494
Product Type
Turbo Diamond Blade
Blade Diameter
5"
Blade Thickness
2.1mm
Diamond Layer Height
8mm
Maximum RPM
12,200
Arbor
7/8"
Blade Design
General Purpose Turbo
Recommended Material
Hard Concrete
Cutting Materials
Stone, Tile, Brick, Block, Concrete, Slate & Masonry
Compatible Equipment
Stone Cutter & Angle Grinder
Cutting Performance
Clean, Consistent Cutting without Chipping
Primary Applications
Stone, Tile & General Building Material Cutting
About This Product
Turbo Diamond Blades for Stone and Concrete
Alpha® Eclipse II Diamond Blades are high-performance, general-purpose dry cutting blades for hard concrete, stone tile, brick, block, slate, masonry, and natural stone. The turbo rim gives these diamond saw blades fast, accurate cutting action with consistent edge quality and reduced chipping across common stone and construction materials.
8mm Diamond Layer for Long Blade Life
Each cutting blade features an 8mm tall diamond layer for extended service life during demanding fabrication, tile, and construction work. The combination of durability and reliable cutting performance makes Eclipse II suitable for tile installers, stone fabricators, masons, and general contractors.
Angle Grinder Diamond Blade Sizes
Eclipse II blades are available in 4", 4-1/2", 5", 6", 7", and 8" diameters. The 4" through 6" grinder blade configurations are designed for compatible angle grinders and stone cutters, while the 7" and 8" models are intended for compatible worm drive saws. Arbor sizes and maximum RPM ratings vary by model and must be matched to the cutting equipment.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What materials can Alpha Eclipse II Diamond Blades cut?
These general-purpose diamond blades cut stone tile, hard concrete, brick, block, slate, masonry, and natural stone. Their turbo design supports fast cutting with reduced edge chipping.
What sizes are available for the Eclipse II Diamond Blades?
Eclipse II blades are available in 4", 4-1/2", 5", 6", 7", and 8" diameters.
Can Eclipse II be used as an angle grinder or tile saw blade?
The 4", 4-1/2", 5", and 6" models are specified for compatible angle grinders and stone cutters. The 7" and 8" models are designed for compatible worm drive saws. Use on a tile saw requires the selected model's diameter, arbor, and RPM rating to match the saw.
Is Eclipse II a dry cutting diamond tile blade?
Yes. Alpha classifies Eclipse II as a high-performance dry blade for stone and stone tile applications.
How tall is the diamond layer?
Each Eclipse II cutting blade has an 8mm tall diamond layer designed to provide extended blade life.
What arbor sizes are available?
Arbor configuration depends on blade size. Available options include 7/8", 20mm, 5/8", and Alpha's manufacturer-listed diamond arbor configuration on applicable models.
Does blade thickness vary by size?
Yes. The 4", 4-1/2", 5", and 6" blades are 2.1mm thick, while the 7" and 8" blades are 2.3mm thick.
