Alpha Dry Porcelain Paver Tile Cutting System
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Blade Diameter
5" (125 mm)
Maximum Paver Thickness
3/4"
Diagonal Cutting Capacity
Up to 20" × 20" Tile
No-Load Speed
12,000 RPM
Power
1200W
Voltage
110V
Arbor
7/8" (22.23 mm)
Dust Control
Virtually Dust-Free Dry Cutting
Why Choose This Product
Key Benefits
Dry Cutting
Cuts porcelain and other tile without water or slurry
Dust Control
Integrated collection system supports virtually dust-free cutting
Porcelain Paver Capacity
Table accommodates porcelain paver tile up to 3/4" thick
Diagonal Cutting
Supports diagonal cuts on tile up to 20" × 20"
Portable Setup
Lightweight table and stand simplify jobsite transport and storage
Complete System
Includes Ecocutter, table, stand and 5" Ultracut GPM Blade
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
ECC-KIT
UPC
749173660047
Product Type
Dry Porcelain Paver Tile Cutting System
Model
ECC-KIT (ECC-125)
Cutting Method
Dry
Recommended Use
Virtually Dust-Free Tile Cutting
Material Application
Tile & Porcelain Paver Tile
Blade Diameter
5" (125 mm)
Included Blade
Alpha® Ultracut GPM Blade
Arbor
7/8" (22.23 mm)
Maximum RPM
12,000 RPM
No-Load Speed
12,000 RPM
Voltage
110V
Amperage
11.2A
Power
1200W
Maximum Paver Thickness
3/4"
Diagonal Cutting Capacity
Up to 20" × 20" Tile
Maximum Cutting Depth
1-1/8" (29 mm) Without Ecocutter Table
Tool Weight
9.5 lbs (4.3 kg)
Breaker Assembly
Built-In
Dust Collection
Dust Hose, Dust Gate & Dust Bag
Cutting Table
Included
Stand
Included
Ruler Guide
TT Ruler Guide Included
Warranty
One Year Tool Warranty
Included Equipment
ECC-125, Dust Hose, Dust Gate, Side Handle, Hexagon Ring Spanner, Wrench, Dust Bag, TT Ruler Guide, 2 Hook & Loop Straps, Ecocutter Table, Ecocutter Stand & 5" Alpha® Ultracut GPM Blade
About This Product
Virtually Dust-Free Dry Tile Cutting

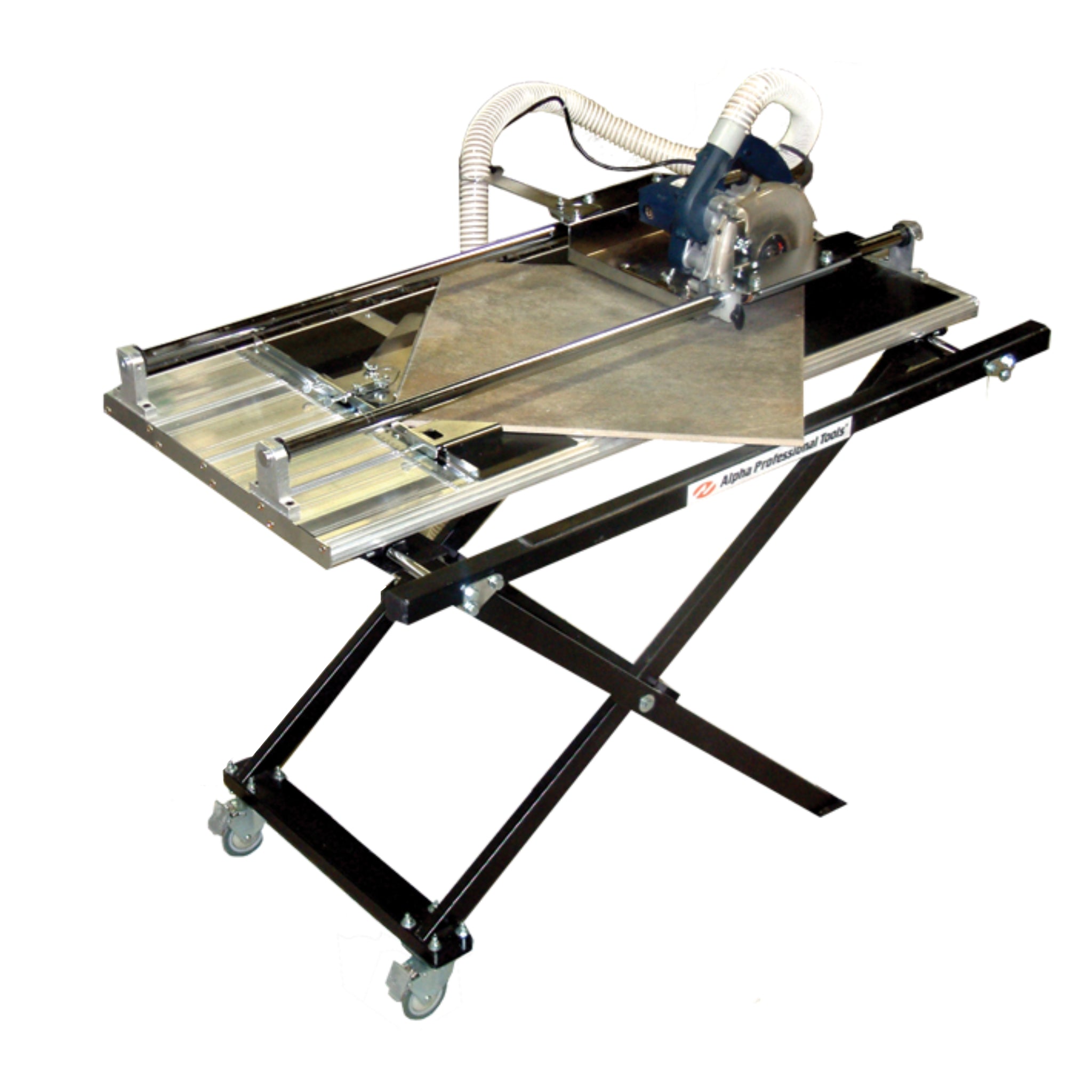

The Alpha® Dry Porcelain Paver Tile Cutting System combines the ECC-125 Ecocutter with a cutting table, stand, and 5" Alpha® Ultracut GPM Blade for dry cutting tile without water. The system captures dust during cutting while eliminating the water, slurry, and cleanup associated with wet cutting, making it a practical option for tile installers working on porcelain and other tile materials.
Portable Cutting Table for Porcelain Pavers
The included Ecocutter table and stand create a portable cutting station that can accommodate porcelain paver tile up to 3/4" thick. The table supports diagonal cuts on tile up to 20" × 20", while the built-in breaker assembly provides an integrated method for completing cuts. The lightweight system can be transported between jobsites and stored in a contractor vehicle when not in use.
5" Ecocutter with 12,000 RPM Cutting Speed
The ECC-125 operates on 110V power with an 11.2A, 1200W motor and a no-load speed of 12,000 RPM. It accepts 5" cutting discs with a 7/8" (22.23 mm) arbor and provides a maximum cutting depth of 1-1/8" (29 mm) when used without the Ecocutter table.
Complete Dry Cutting System with Ultracut GPM Blade
The ECC-KIT includes the ECC-125 Ecocutter, dust hose, dust gate, side handle, hexagon ring spanner, wrench, dust bag, TT ruler guide, two hook-and-loop straps, Ecocutter table, Ecocutter stand, and a 5" Alpha® Ultracut GPM Blade. The complete setup provides the primary cutting, dust collection, support, and guiding components needed for portable dry tile cutting.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
Can the Alpha Dry Porcelain Paver Tile Cutting System cut without water?
Yes. The ECC-KIT is designed for dry tile cutting and uses dust collection components to provide virtually dust-free cutting without the water and slurry associated with wet cutting.
How thick of a porcelain paver can the Ecocutter table hold?
The included Ecocutter table is designed to hold porcelain paver tile up to 3/4" thick.
What is the diagonal cutting capacity?
The cutting table can accommodate diagonal cuts on tile up to 20" × 20".
What size blade does the ECC-KIT use?
The system uses a 5" (125 mm) cutting disc with a 7/8" (22.23 mm) arbor. A 5" Alpha® Ultracut GPM Blade is included with the kit.
What is the maximum cutting depth of the ECC-125?
The ECC-125 has a maximum cutting depth of 1-1/8" (29 mm) when used without the Ecocutter table.
What comes with the Alpha ECC-KIT?
The kit includes the ECC-125 Ecocutter, dust hose, dust gate, side handle, hexagon ring spanner, wrench, dust bag, TT ruler guide, two hook-and-loop straps, Ecocutter table, Ecocutter stand, and a 5" Alpha® Ultracut GPM Blade.
What are the power specifications of the ECC-125?
The Ecocutter operates on 110V power with an 11.2A, 1200W motor and a no-load speed of 12,000 RPM.
