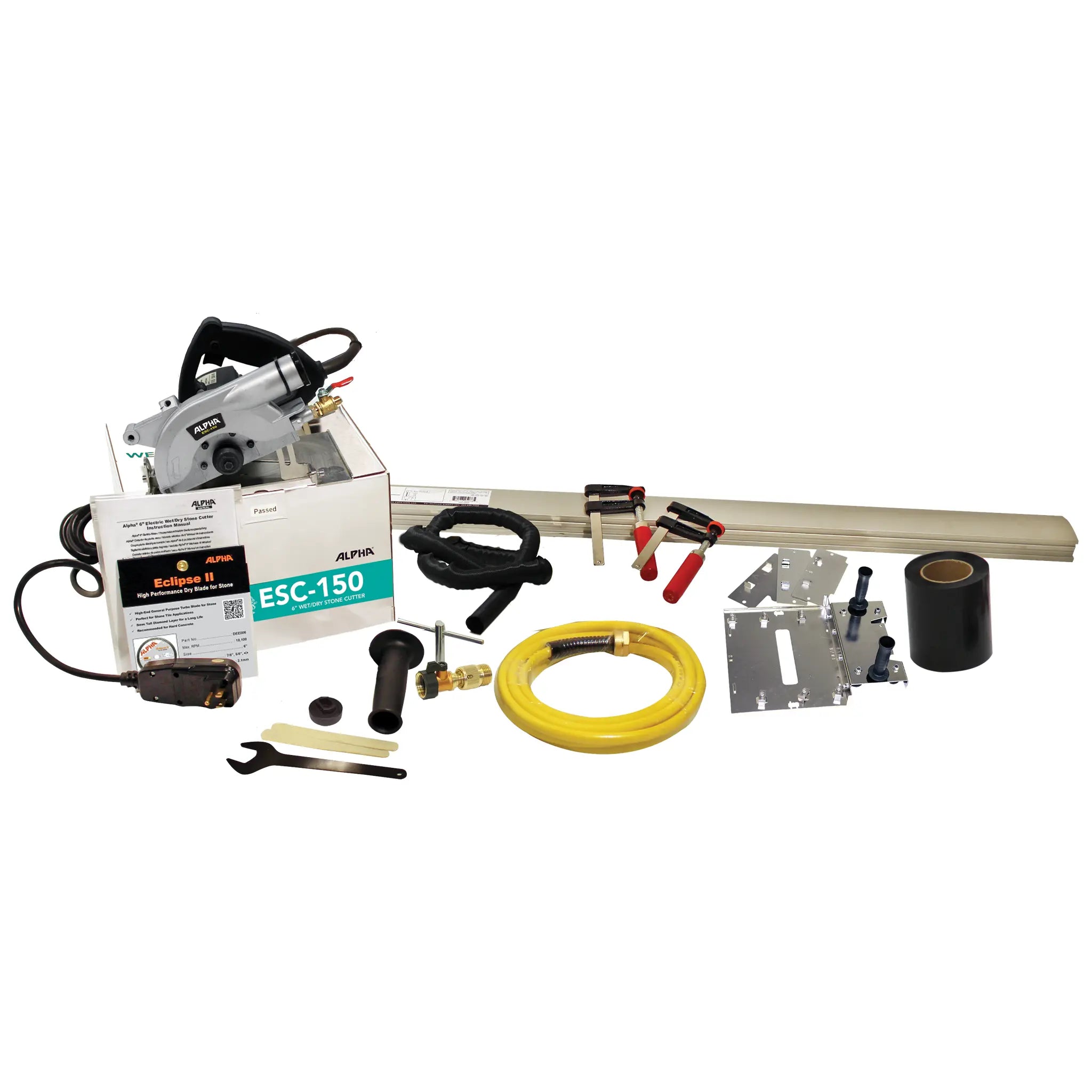

Alpha Countertop Trim Kit with ESC-150 / ESC-250 Stone Cutter
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Included Cutter
ESC-150 Wet/Dry Stone Cutter
Voltage
110V
Blade Diameter
6"
Maximum Cutting Depth
2"
Stone Slab Capacity
1-1/4" in One Pass
No-Load Speed
10,000 RPM
Guide Rail Length
4'
Included Blade
6" Eclipse II Diamond Blade
Why Choose This Product
Key Benefits
Guided Straight Cutting
Carriage and 4' guide rail maintain a controlled cutting path
One-Pass Slab Cutting
Cuts 1-1/4" stone slabs in a single pass
2" Cutting Capacity
6" cutter provides up to 2" maximum cutting depth
Natural & Engineered Stone
Eclipse II blade is made for common stone fabrication materials
Surface Protection
Included tape protects finished surfaces during cutting
Complete Cutting System
Includes cutter, carriage, blade, guide rail and protection tape
Product Information
Product Details
Specifications
Brand
Alpha®
Part Number
5480-4250
UPC
749173661723
Product Type
Countertop Trim Kit
Included Cutter
ESC-150 Wet/Dry Stone Cutter
Cutter Model
ESC-150
Voltage
110V
Amperage
11.2A
Motor Power
1200W
No-Load Speed
10,000 RPM
Cutting Disc Diameter
6" (150 mm)
Maximum Cutting Depth
2" (50.88 mm)
Stone Slab Capacity
Cuts 1-1/4" (3 cm) Stone Slabs in One Pass
Arbor
7/8" (22.23 mm)
Cutting Method
Wet/Dry
Recommended Materials
Natural Stone, Engineered Stone & Hard Surfaces
Guide Rail
ASC-GR04 4' (1.2 m)
Carriage Assembly
ASC-6CSM 6" Carriage Assembly
Included Blade
Alpha Eclipse II 6" (DEE006)
Blade Type
General-Purpose Turbo Diamond Blade
Diamond Layer Height
8 mm
Surface Protection Tape
BAB0650
Tool Weight
11.30 lbs (5.12 kg)
Cord Length
15' (4.5 m)
Phase
Single Phase
Plug Type
Type A
Kit Contents
ESC-150 Stone Cutter, ASC-6CSM 6" Carriage Assembly, DEE006 6" Eclipse II Blade, ASC-GR04 4' Guide Rail, BAB0650 Surface Protection Tape & ESC-150 Standard Accessories
Tool Warranty
1 Year on ESC-150
About This Product
6" Countertop Cutting System for Stone Slabs
The Alpha® Countertop Trim Kit with ESC-150 / ESC-250 Stone Cutter is a guided cutting system for trimming countertops, natural stone, engineered stone, and other hard surfaces. The 6" Wet/Dry Stone Cutter combines with a carriage assembly and 4' guide rail to create a stable cutting setup for straight, precise cuts and can cut 1-1/4" (3 cm) stone slabs in a single pass.
4' Guide Rail and 6" Carriage Assembly
The included ASC-6CSM 6" Carriage Assembly connects the stone cutter to the ASC-GR04 4' Guide Rail to control the cutting path while trimming countertops and slabs. Surface Protection Tape is also included to protect finished surfaces during guided cutting applications.
6" Eclipse II Diamond Blade for Natural and Engineered Stone
Each kit includes an Alpha® Eclipse II 6" general-purpose turbo diamond blade for cutting natural and engineered stone. The blade features an 8 mm tall diamond layer for extended life and is designed to provide consistent cutting performance while minimizing chipping.
ESC-150 and ESC-250 Cutting Performance
The ESC stone cutter uses a 1200W motor operating at 10,000 RPM and accepts 6" cutting discs with a 7/8" arbor. Maximum cutting depth is 2". The ESC-150 operates at 110V and 11.2A with a Type A plug, while the ESC-250 operates at 220V and 5.5A with a Type C plug.
Product Resources
Documentation & Downloads
Common Questions
Frequently Asked Questions
What is included with the Alpha ESC-150 / ESC-250 Countertop Trim Kit?
Each kit includes an ESC-150 or ESC-250 Wet/Dry Stone Cutter, ASC-6CSM 6" Carriage Assembly, DEE006 6" Eclipse II diamond blade, ASC-GR04 4' guide rail, BAB0650 Surface Protection Tape, and the standard accessories for the included cutter.
What is the difference between the ESC-150 and ESC-250 kits?
The ESC-150 operates at 110V and 11.2A with a Type A plug, while the ESC-250 operates at 220V and 5.5A with a Type C plug. Both use a 1200W motor, 6" cutting disc, and 10,000 RPM no-load speed.
How deep can the ESC-150 and ESC-250 stone cutters cut?
The cutters have a maximum cutting depth of 2" (50.88 mm). The system is designed to cut 1-1/4" (3 cm) stone slabs in a single pass.
What materials can the Countertop Trim Kit cut?
The kit is recommended for natural stone, engineered stone, and other hard surfaces used in countertop and stone fabrication applications.
What blade is included with the Countertop Trim Kit?
The kit includes an Alpha Eclipse II 6" general-purpose turbo diamond blade, model DEE006. It features an 8 mm tall diamond layer and is intended for cutting natural and engineered stone.
What does the carriage and guide rail do?
The 6" carriage connects the stone cutter to the 4' guide rail to provide a stable, controlled cutting path when making straight cuts on countertops and slabs.
Does the Countertop Trim Kit include surface protection tape?
Yes. The kit includes Alpha BAB0650 Surface Protection Tape for protecting finished surfaces during cutting applications.
Can the included stone cutter be used wet or dry?
Yes. Both the ESC-150 and ESC-250 are Wet/Dry Stone Cutters for compatible wet and dry cutting applications.
