Alpha Channel Cutting Kit
Fast Shipping
Easy Returns
Secure Checkout
At a Glance
Quick Decision Guide
Application
Anti-slip and drip grooves
Cutter
ESC-125
Blade
HQ03A+ Hot-Rod
Blade Profile
3/16" rod
Voltage
110V
Power
1,200W
No-Load Speed
12,000 RPM
Dust Control
Water feed or HEPA vacuum
Why Choose This Product
Key Benefits
Coordinated Cutting Kit
Combines the ESC-125 cutter and HQ03A+ Hot-Rod blade for general-stone channel work.
Precision Groove Control
Stable clamping and a reversible guide help maintain controlled channel placement.
Anti-Slip Grooves
Creates defined grooves for compatible stone stair treads and walking surfaces.
Water-Drip Detailing
Supports precise drip-channel fabrication on compatible stone.
Wet Cutting Support
Integrated water feed supplies the cutting area during wet operation.
Vacuum-Ready Dust Control
Dust cover connects to a HEPA vacuum for dry cutting.
Professional Cutting Power
A 1,200W motor delivers a 12,000 RPM no-load speed.
Built-In GFCI
Provides ground-fault protection for the 110V electric cutter.
Product Information
Product Details
About This Product
General-Stone Channel Cutting System
Alpha Channel Cutting Kit combines the ESC-125 110V wet/dry stone cutter with the HQ03A+ Hot-Rod blade for channel-cutting applications in compatible stone. The coordinated system is designed for anti-slip grooves, water-drip channels, and detailed stair-tread work in professional hardscape and stone fabrication settings.
Controlled Grooves for Stair Treads and Water Drips
The ESC-125 uses a stable clamping system, adaptable base plate, and reversible TT ruler guide to support controlled channel placement. Its included 3" Hot-Rod blade creates a 3/16" groove profile, helping professionals produce precise details without assembling a cutter-and-blade system separately.
Wet and Vacuum-Assisted Dust Control
The integrated water-feed system supplies water to the cutting area for wet operation. For dry cutting, the dust cover connects to a compatible HEPA vacuum to collect dust near the blade. A built-in GFCI provides ground-fault protection when the tool is operated according to Alpha requirements.
Specifications
Brand
Alpha Professional Tools
Part Number
5480-5210
UPC
749173661792
Product Type
General channel cutting kit
Included Cutter
ESC-125 wet/dry stone cutter
Included Blade
HQ03A+ Hot-Rod
Primary Applications
Anti-slip grooves, water drips, stair treads
Voltage
110V
Amperage
11.2A
Power
1,200W
No-Load Speed
12,000 RPM
Cutter Disc Capacity
5"
Cutter Arbor
7/8" (22.23 mm)
Hot-Rod Size
3"
Hot-Rod Thickness
5.5 mm
Hot-Rod Profile
3/16" rod
Hot-Rod Maximum Speed
14,500 RPM
Hot-Rod Arbor
7/8" or 20 mm
Dust Control
Water feed or HEPA vacuum connection
Water Hose Assembly
15 ft, included
Dust Cover
Included
Reversible TT Ruler Guide
Included
Common Questions
Frequently Asked Questions

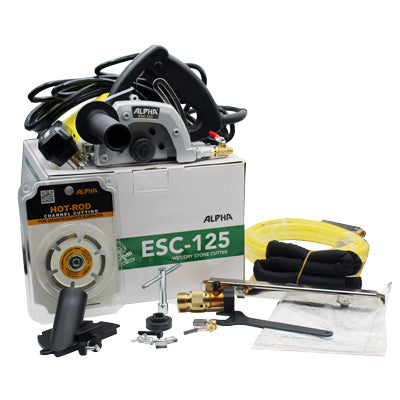

What is included with the Alpha Channel Cutting Kit?
The general-stone kit combines an ESC-125 5" wet/dry stone cutter with an HQ03A+ 3" Hot-Rod blade. The cutter package also includes a dust cover, reversible guide, 15-foot water hose assembly, GFCI, side handle, felt strips, flanges, wrenches, and related connection accessories.
What materials is this channel cutting kit designed for?
Alpha identifies part 5480-5210 as its General Channel Cutting Kit, while the included HQ03A+ Hot-Rod blade is specifically recommended for granite. Alpha offers a separate porcelain paver kit with an HP03A+ blade. Confirm blade compatibility before cutting stone other than granite.
What types of channels can the kit create?
The kit is designed for cutting anti-slip grooves, water-drip channels, and stair-tread details. Its stable cutter base, reversible guide, and clamping system help control the cutting path, while the included Hot-Rod blade forms a 3/16" groove profile in compatible stone.
Can the Alpha kit be used wet or dry?
Yes. The ESC-125 and HQ03A+ Hot-Rod support wet or dry cutting, although Alpha recommends wet operation for its Hot-Rod blades. The cutter includes a water-feed system for wet work and a dust cover that connects to a HEPA vacuum during dry cutting.
Is a HEPA vacuum included?
A HEPA vacuum is not listed among the included equipment. The ESC-125 includes a dust cover designed for connection to a compatible HEPA vacuum. For dry cutting, the user must supply the vacuum and follow Alpha's requirements for dust collection and tool setup.
What are the electrical requirements?
The included ESC-125 is a 110V, 11.2A cutter with 1,200W of power and a 12,000 RPM no-load speed. It uses a Type A plug and a 15-foot single-phase power cord. Connect the cutter only to a power supply that meets Alpha's electrical requirements.
What are the specifications of the included Hot-Rod blade?
The included HQ03A+ Hot-Rod is a 3" blade with a 5.5 mm thickness and a 3/16" rod profile. It has 7/8" and 20 mm arbor compatibility and a maximum operating speed of 14,500 RPM. Alpha recommends this specific blade for granite.
Does the cutter include GFCI protection?
Yes. The ESC-125 includes a built-in ground-fault circuit interrupter for electrical protection when working with its water-feed system. The GFCI does not replace required jobsite safety practices, so users must still follow Alpha's operating, power, water, and connection instructions.
