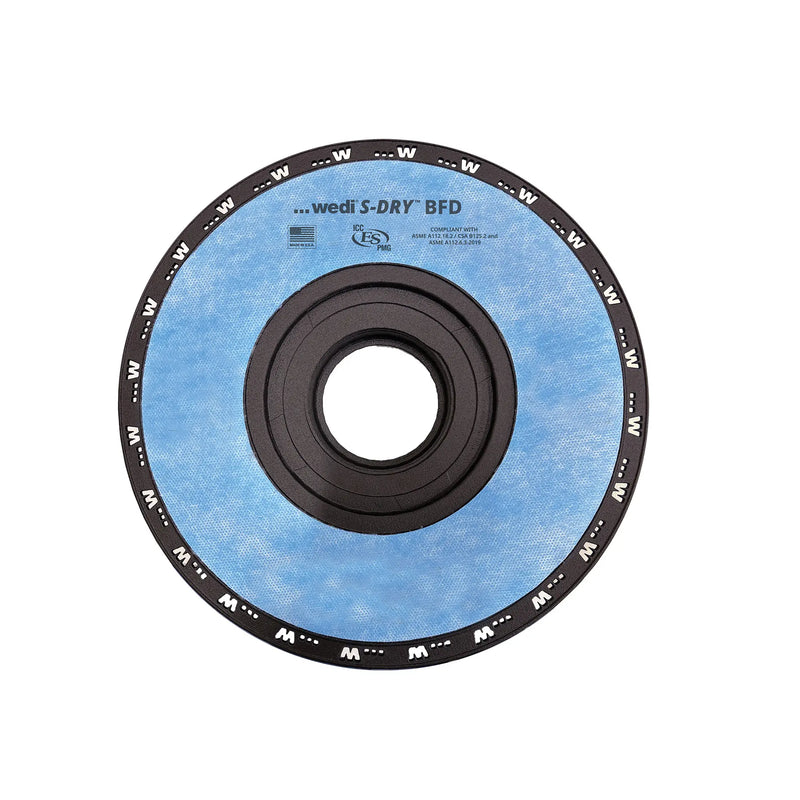

wedi S-DRY BFD (Bonding Flange Drain) is designed for use with wedi S-DRY™ shower system components in mortar bed shower installations. It provides a reliable connection point between the waterproofing membrane and the drain system, supporting consistent drainage and system performance.
The bonding flange features a fleece-covered surface that allows direct integration with wedi S-DRY™ waterproofing materials. This helps create a continuous seal between the drain and surrounding membrane, supporting proper waterproofing across the entire shower assembly.
The pressure-fit connection allows the drain to attach directly to ABS or PVC pipe that has been cut flush with the subfloor. This simplifies installation while ensuring a secure connection. The drain is designed to sit approximately 3/4 inch above the floor, with the option to increase height using mortar for proper alignment with the finished shower floor.
Drain covers are selected separately, allowing flexibility in choosing the final appearance to match the overall shower design.
Key Features
- Bonding Flange Design: Provides a connection point between waterproofing membrane and drain.
- Fleece-Covered Flange: Supports secure bonding with wedi S-DRY™ membrane systems.
- Mortar Bed Installation: Designed specifically for traditional shower base construction.
- Pressure-Fit Pipe Connection: Connects to ABS or PVC pipe cut flush to subfloor.
- Adjustable Height: Base height of 3/4 in. with the ability to increase using mortar.
- Drain Cover Flexibility: Compatible with separately selected wedi S-DRY™ drain covers.
- Made in the U.S.A.: Manufactured to meet consistent quality standards.
Specifications
| Specification | Details |
|---|---|
| Product Type | Bonding Flange Drain (BFD) |
| Application | Mortar Bed Shower Installations |
| Flange Surface | Fleece-Covered for Membrane Bonding |
| Pipe Compatibility | ABS and PVC (Flush Cut to Subfloor) |
| Base Height | 3/4 in. Above Floor |
| Height Adjustment | Adjustable with Mortar |
| Drain Cover | Sold Separately |
| Unit | 1 Piece |
| Item Number | US9476006 |
| Country of Origin | Made in the U.S.A. |
wedi S-DRY BFD provides a reliable bonding flange drain solution for mortar bed shower installations, helping create a secure connection between waterproofing materials and drain systems for consistent performance.
