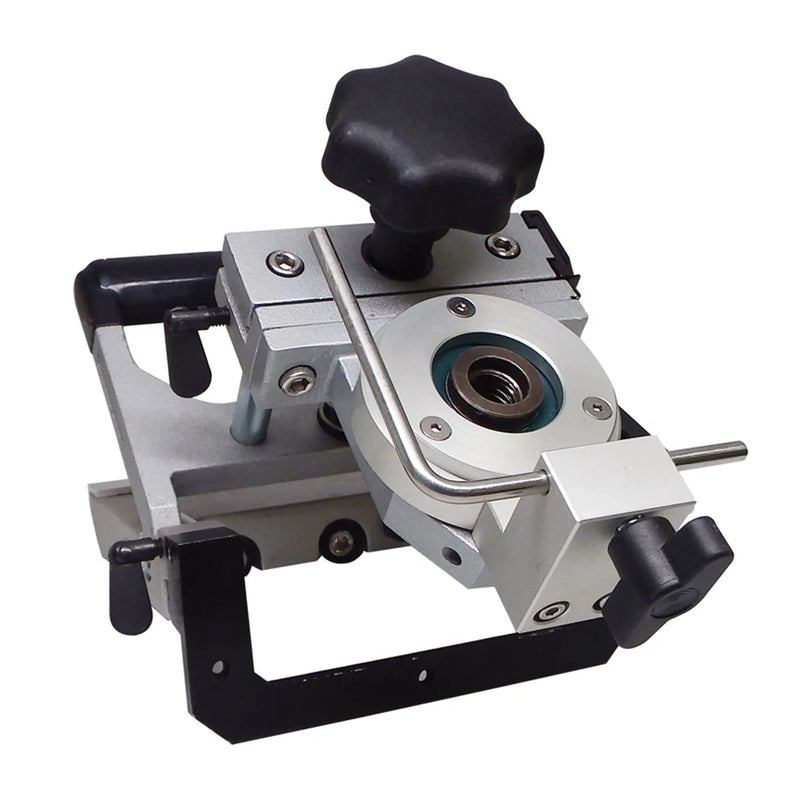

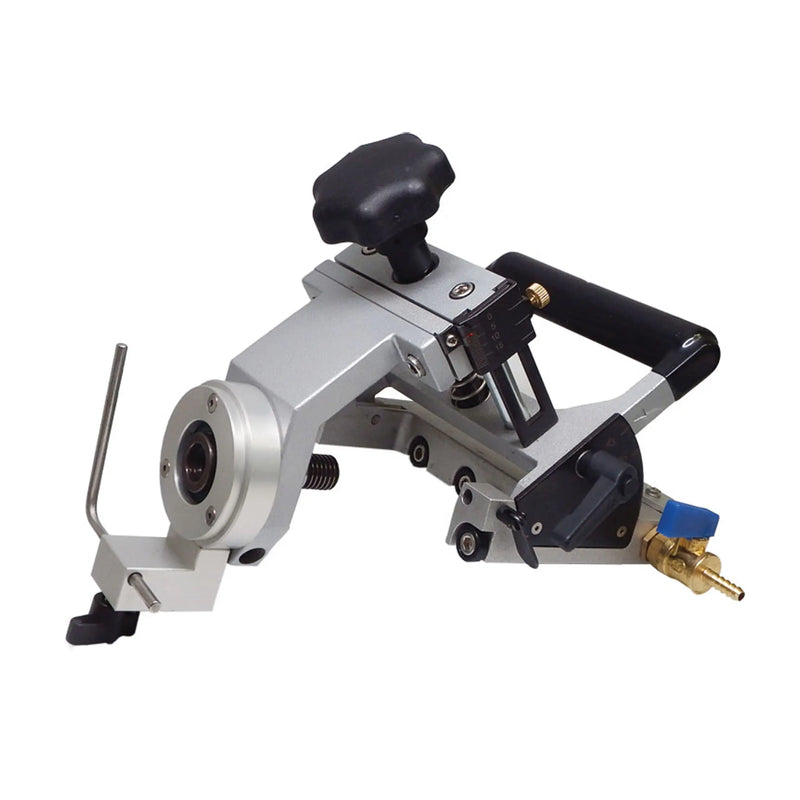

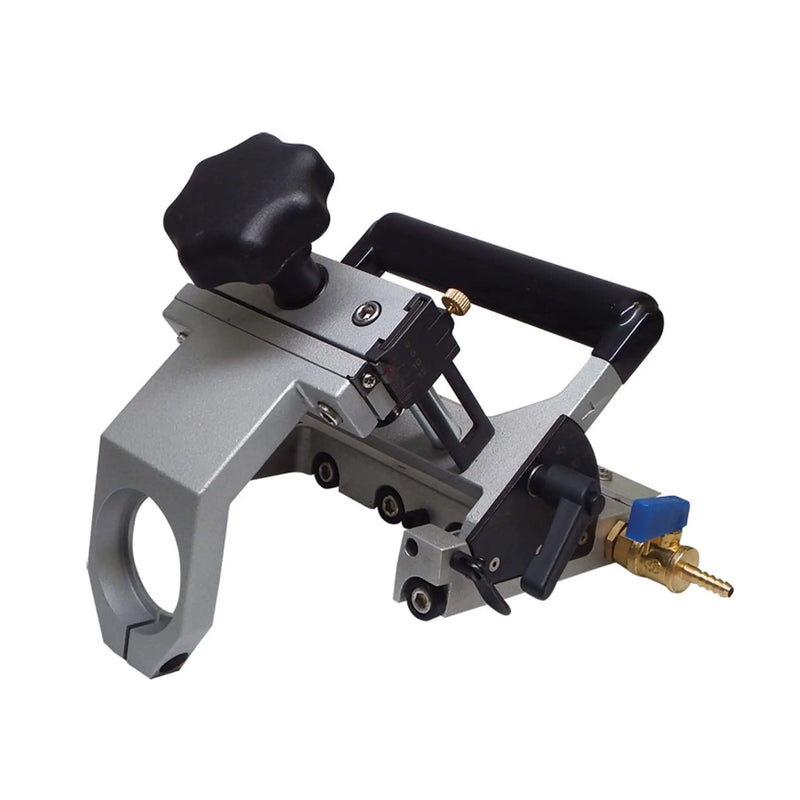

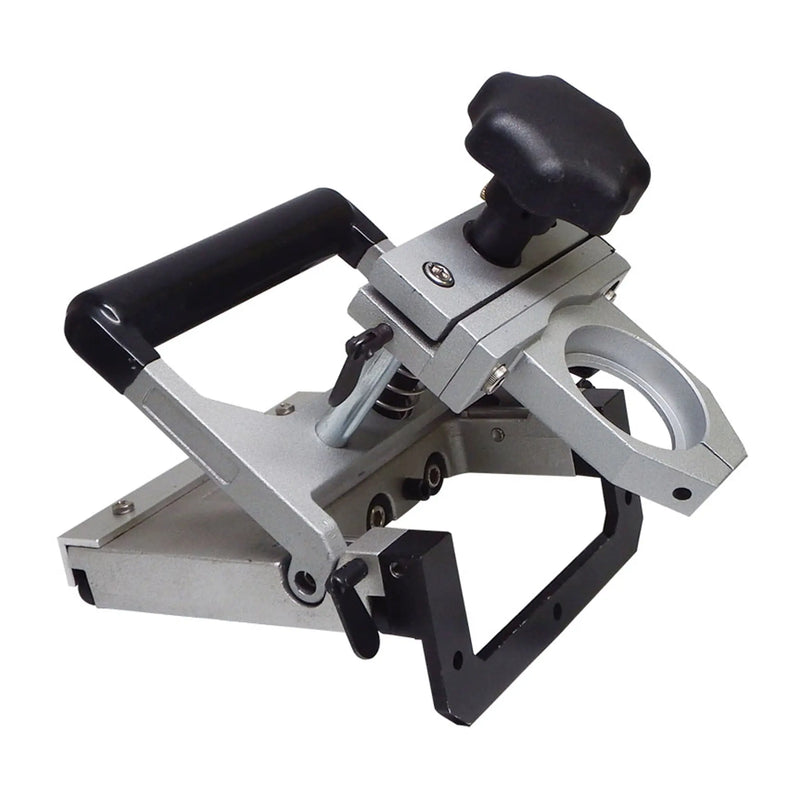

The Alpha Beveling Auxiliary Base is a beveling base designed to mount onto compatible polishers and variable-speed grinders to provide controlled straight and beveled edge grinding and polishing. The base secures the tool at a fixed angle, allowing consistent edge preparation for countertop fabrication, surface finishing, and decorative edge treatments.

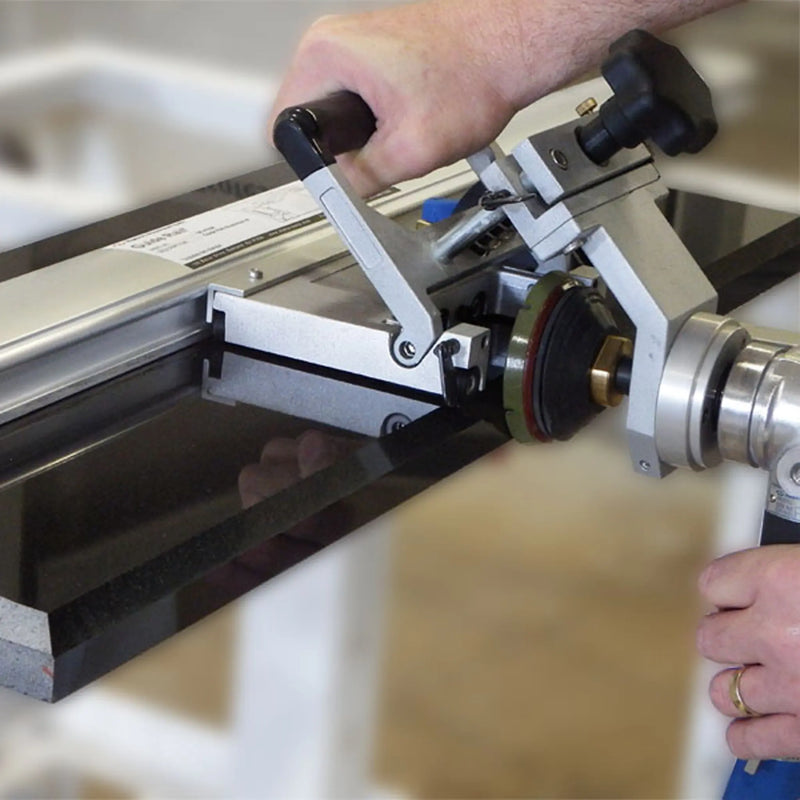

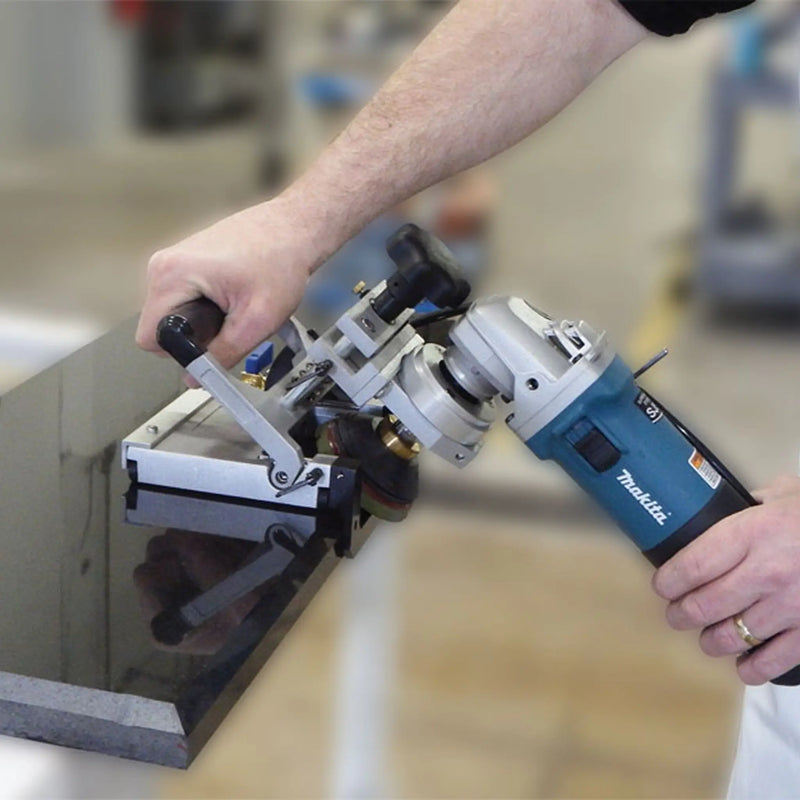

The system supports bevel angles from 15° to 45° and straight edge polishing up to 90°. A clamping base assembly locks the selected angle in place, helping maintain uniform depth and alignment during operation. The auxiliary base is commonly used for preparing laminated edges, creating Hollywood bevels, and refining straight edges prior to installation.
An exterior water-feed system is included to support wet grinding and polishing. The base is compatible with tools using either 5/8"-11 or M14-2 spindles and accepts polishing pads up to 4 inches in diameter.
Key Features
- Adjustable Bevel Angles: Supports beveling from 15° to 45° and straight edge polishing up to 90°.
- Tool Conversion Base: Converts compatible polishers and variable-speed grinders into an edge polishing system.
- Fixed Angle Clamping: Locks selected angle to help maintain consistent edge geometry.
- Wet Polishing Support: Includes exterior water-feed system.
- Pad Compatibility: Accepts polishing pads up to 4 inches.
- Spindle Options: Fits 5/8"-11 and M14-2 spindles.
Specifications
| Specification | Details |
|---|---|
| Models | BAB1590 / BAB1590-M14 |
| Bevel Angle Range | 15°–45° |
| Straight Edge Angle | Up to 90° |
| Max Bevel Depth | 3/8" (10 mm) |
| Max Pad Size | 4" (100 mm) |
| Spindle Compatibility | 5/8"-11 / M14-2 |
| Weight | 3.57 lbs (1.62 kg) |
Kit Includes
- Universal adapter assembly
- Clamping base for 15°–45°
- Clamping base for 90°
- Water hose
- Water valve
- Water hose assembly (10 ft)
- Hex wrench (5 mm)
- Spanner
- Mounting screws
This beveling attachment is used to control polishing angle and depth for straight and beveled edge preparation on stone and slab materials.
